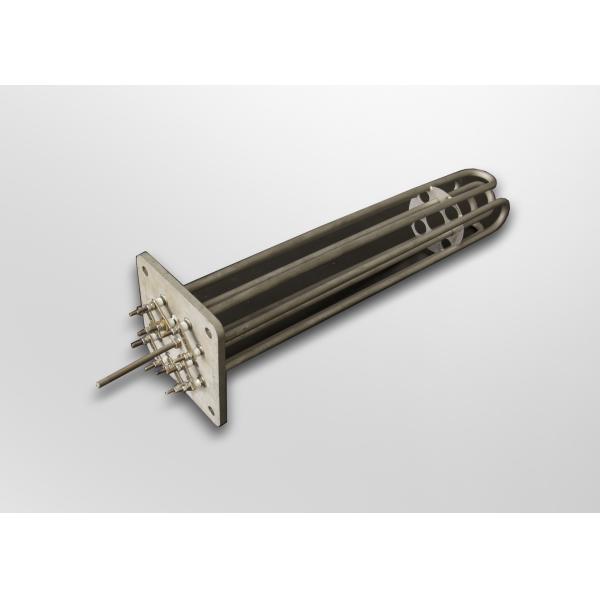

SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element
SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element
SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element
SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element
SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element
SS304 Incoloy Sheathed Tubular Heating Elements , U Shaped Heating Element
Specifications
Brand Name :
Tutco
Model Number :
110V-240V, 3KW
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
negotiation
Supply Ability :
500 pcs per day
Packaging Details :
Standad Exporting Packing
Material :
SS304, Incoloy
Shape :
U shape, W shape
Wattage :
3KW
Performance :
water proof
Warranty :
18 months
Brand :
TUTCO
Description

High Quality SS304 Incoloy Finned Immersion Water Tubular Heater Assembly UL

1. Type of the Finned Tubular heaters (Air Heater)

  • All heating wires are imported from USA to ensure the high quality.
  • Please note the application condition, material of the pipe and the density of the pipe surface will affect the life the heater. We ensure at least 3000 hrs life using in our recommended condition.
  • We recommend to us Inciloy840 if use the heater in the humid or caustic condition.
  • Please note, for those heaters with pipe material SUS321 and SUS304, per the ecommendation of UL499, the recommend highest surface temperature is 760℃ and we advise you lower it to 660℃.

2. Immersion Heater

Typical Application for Immersion Heaters

  • Water heating
  • Dishwasher heating
  • Washing machine heating
  • Coffee machine heating
  • Food equipment heating
  • Air to water heating

Features and Benefits:

Heat intensity Not exceeding 30W/cm2 (advisable)
Power Depends on the dimension
Escape of current (when cold) <=0.1mA a 242 v.
Insulation (when cold) 5 Min Ohmios 500 Watts minimum
Dielectric strength 1500v. 1/seg
Working temperature 750 °C max.
Tolerance of length +/-1.5%
Tolerance of diameter -0.01 a -0.06 m/m
Tolerance of cut of connexion +/-15 mlm
Power tolerance (w) 5 % - 10 %

3. Design Info need for heater inquiry

Please provide below info if you need us to develop a new design.

  • a. Input Wattage & Votage
  • b. The condition of the application
  • c. The shape of the heater
  • d. Dimension of the heater or the installation requirements
  • e. Material needed
  • f. Any requirement to the electrical property
  • g. Expected heater life
  • We will design the heater per UL499 if no special items required.
