25-30 Person/Min Baffle Gate Turnstile Anti Collision Stainless Steel Z1701B-120

Specifications

Place of Origin :

shenzhen

Brand Name :

cxt

Certification :

Single label product appearance patent

MOQ :

Price :

90~3500USD

Packaging Details :

Cartons and wooden boxes

Delivery Time :

20 working days

Payment Terms :

Public Account

Supply Ability :

500ps

Model Number :

CXT-Z1701B-120

Pass Speed :

25-30 person/nin

Width :

600mm

Product name :

Factory Price Automatic Safe Rotation Full Height Turnstile Gate,DaoSafe RFID Full Height Turnstile Price,Full Height Turnstile,China High Quality Pedestrian Security Full Height Turnstile,Stainless Steel Single Passage Full Height Turnstile

Power supply :

AC220V/110V,50/60Hz,220V,AC110-220V,50Hz

Net weight :

260kg,15kg,600kg,200kgs

Dimension :

1630 * 1337 * 2240mm,1500*1500*2300 (mm),2100*1500*2310mm,2210mm*1350mm*2300mm,1520(L)*1480(W)*2250(H)(mm)Single channel

Description

Brushless motor in prison room intelligent recognition punch card Turnstile CXT-Z1701B-120

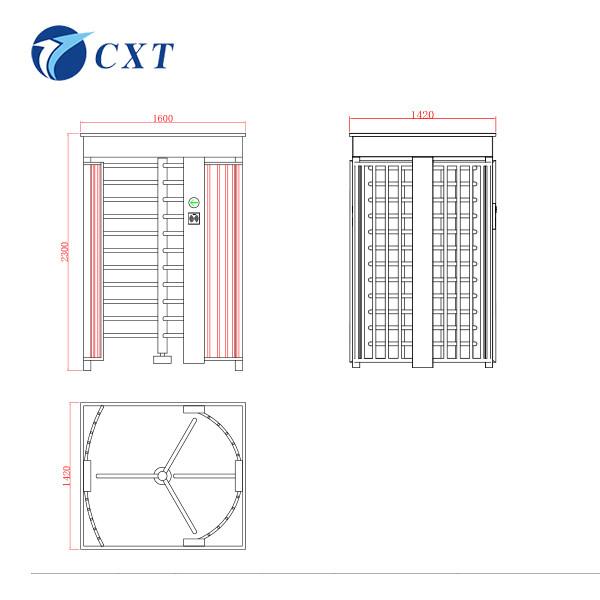

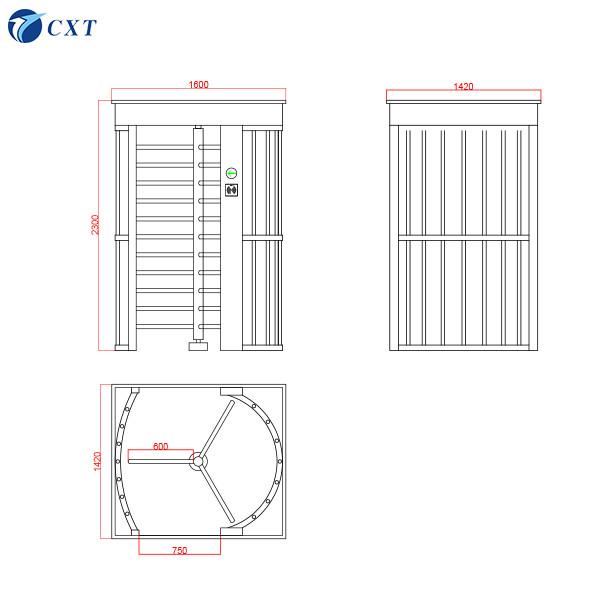

Model	CXT-Z1701B-120
Specifications	160014202300mm
Pole length	570mm
Process	Bending, cutting, welding, polishing, grinding and other processes
Production materials	National standard 304 stainless steel (can be customized 201 stainless steel, iron paint)

25-30 Person/Min Baffle Gate Turnstile Anti Collision Stainless Steel Z1701B-120

Functional features of single-door 120-degree full-height revolving gate:

1) It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use;

2) It can be connected to an external switch button or remote control to achieve one-way or two-way control of passage;

3) It has an automatic reset function. When the gate lever is unlocked, it rotates 120 degrees/90 degrees, which means it is automatically reset (locked). Or if the user does not pass within the specified time, the system will automatically cancel the user's right to pass and automatically close (lock), and the delay is adjustable from 2S, 5S, 10S, and 60S.

4) Anti-collision function, when no gate opening signal is received, the fence bar will automatically lock;

5) Anti-tailgating function, when one person passes, it will turn 120 degrees/90 degrees and automatically lock;

6) Automatic normally open function when power is off to meet the requirements of fire management;

7) It can be connected with a variety of card reading devices and receive relay switch signals to work;

8) One-way and two-way passage function, which can control the entry and exit of personnel in one direction or two directions;

9) Adopting the optical working principle, there is no delay requirement for the input control signal, and it is absolutely avoided that several people pass through with one card;

10) The external button can realize the left and right normally open function;

11) The external button can realize the non-power-off normally open function;

12) Remote control and management can be realized directly through the management computer (need to be customized);

13) The control panel can be connected with the counting function to record the number of people present and realize the forward plus and reverse minus functions (need to be customized).
