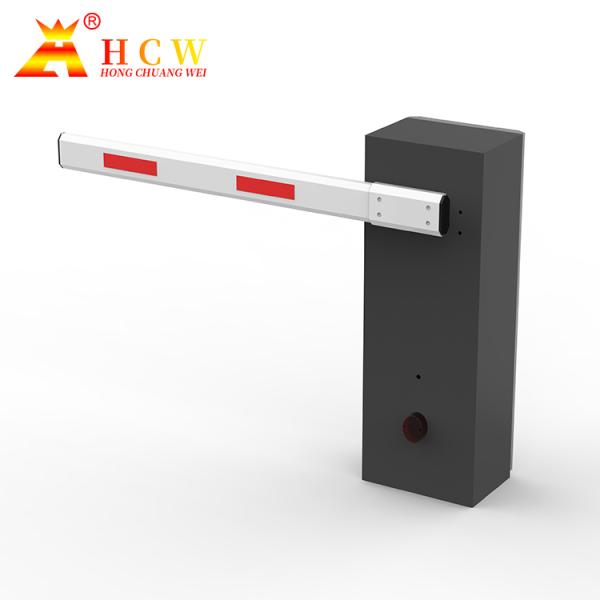

HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
Specifications
Brand Name :
HCW
Model Number :
CW219
Certification :
CE
Place of Origin :
China
MOQ :
2 piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Model :
CW219
Power supply :
AC220V±10%，50Hz
Working temperature :
-35℃~+70℃
Application :
Roadway Safety
Size :
340*245*970mm
Motor :
DC brush-less
Motor power :
150W
Length :
6m
Description
HCW Parking Barrier Gate with Digital Control and Remote Operation
Barrier Gate RFID Security Smart Wireless Remote Control Expandable For Parking Lot Use
The CW219 is our sixth-generation DC brushless electric barrier gate, designed for fast lifting speed and stable operation. This advanced system features digital control technology for intelligent barrier management and supports wireless remote control operation.
Product Features
  • Digital control technology monitors the entire operation process
  • Wireless remote control for gate operation (lift, drop, stop)
  • Manual button operation available
  • Supports brand OEM processing
  • Exported to international markets
Technical Specifications
Parameter Value
Product Name CW219
Motor DC brushless
Power Supply DC24V 150w
Material Cold Rolled Steel
Surface Treatment Galvanized + Powder Coated
Thickness 1.5mm
Size 340*245*971.5mm
Working Environment -40℃~+80℃
Available Poles Straight arm, folding arm, fence boom, Foam rod
Support Length Straight arm≤6m, fence boom≤4.5m
Foldable Rod Types 90° and 180°
Lift/Drop Time 1~6s (Adjustable)
Noise Level <50db
Protection Features Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection
Key Advantages
  • Wireless remote control operation (rise, drop, stop)
  • Operates reliably in extreme temperatures (-40℃ to +80℃)
  • Customizable colors and sizes available
  • Anti-collision function protects the pole from damage
  • Four pole options: Straight, fence, telescopic, and 90° folding
Equipment Functions
  • High-quality material lifter with 5 million cycle capability
  • High-temperature resistant springs with superior elasticity
  • High-density control board compatible with various management systems
  • Adjustable operating speed (1.5s to 6s) based on boom length
  • Manual adjustment capability for power outage situations
