CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
Specifications
Model Number :
CW507
Input control signal Switch quantity :
standard configuration does not include RS232, 485
Payment Terms :
T/T
Power supply voltage :
AC220V±10%
IP protection level :
42
Price :
Negotiable
Working environment temperature :
-25℃~70℃
Supply Ability :
100 pieces per day
Model :
CW507
Relative humidity :
5-90%
MOQ :
2
Delivery Time :
7-15 work days
Power :
40W
Place of Origin :
Shenzhen,China
Packaging Details :
wood cases
Certification :
CE
Brand Name :
Hongchuangwei
Running speed (XX people/minute) :
40 people/minute
Description
CW507 Bidirectional Stainless Steel Flap Barrier Gate
Advanced pedestrian access control solution designed for airports, data centers, and high-security environments with 304 stainless steel construction and 850mm channel width.
Advanced Access Control Technology
The CW507 intelligent octagonal inclined wing gate channel provides sophisticated access control with superior performance and reliability. Engineered with STC CPU chip technology, DC brushed motor, and 5 pairs of infrared detection sensors, this system ensures long service life and exceptional stability.
Comprehensive System Integration
Seamlessly integrates with various IC/ID card readers, barcode scanners, and identification systems. Easy to connect with existing access control infrastructure for versatile deployment in CBD business centers, government buildings, corporate offices, high-end residential areas, and educational institutions.
Premium Construction Materials
Manufactured from 304 stainless steel, offering excellent rust resistance, corrosion protection, and wear durability. Suitable for diverse indoor and outdoor environments, maintaining optimal performance and appearance in coastal regions with high humidity or northern cities with extreme temperatures.
Key Features & Benefits
  • Rapid Response: Adjustable opening/closing speed supports fast passage in 0.5-0.8 seconds, preventing congestion and enhancing pedestrian flow efficiency
  • Multi-Modal Identification: Compatible with IC cards, fingerprint scanning, facial recognition, QR codes, RFID, and other verification methods
  • Anti-Tailgating Security: High-precision infrared monitoring detects passage status in real-time, preventing unauthorized entry
  • Safety Protection: 4 pairs of infrared sensors enable automatic rebound when encountering obstacles, ensuring safety for children, elderly, and luggage carriers
  • Accessible Design: Standard 600mm passage accommodates wheelchairs, strollers, and barrier-free access requirements
  • Quiet Operation: Silent motor and precision transmission structure maintain noise levels below 50 decibels, ideal for hospitals and libraries
  • Modern Aesthetics: Streamlined body with matte stainless steel finish complements contemporary environments
  • Customization Options: Available with custom LOGO integration and color schemes to match specific architectural requirements
Product Specifications
Framework Material 304 Grade Stainless Steel
Dimensions 1400 × 330 × 1000 mm
Weight 150 kg
Glass Sliding Wall Height 1000-1400mm (adjustable), custom 1800mm available

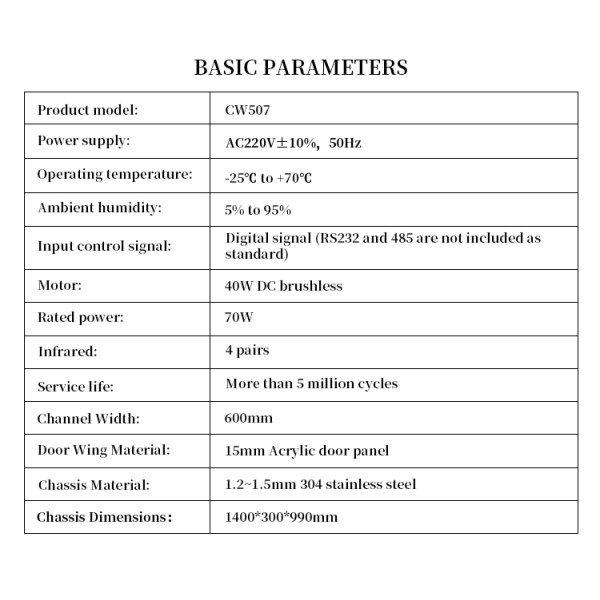

Technical Parameters
Product Number CW507
Operating Voltage AC220V ±10%, 50HZ ±10%
Temperature Range -25℃ to 70℃
Relative Humidity 5% to 90%
Motor Type 40W Brushless DC
Rated Power 70W
Throughput Capacity 30-40 people/minute
Infrared Beams 4 pairs
Trouble-Free Operations 5 million cycles
Average Lifespan 6 million cycles
Channel Width 600mm
Swing Arm Material 15mm Acrylic Door Panel
Product Size 1400 × 300 × 990mm
Channel Frame 1.2-1.5mm thick 304 stainless steel
Package Weight Approximately 65 kg (single lane)
System Integration Capabilities
  • Smart card reader compatibility with IC and ID card systems
  • Expandable to automatic identification systems for access control, pedestrian flow management, attendance tracking, and fare collection
  • International standard electrical interfaces for easy integration with other read/write devices
  • Remote supervision computer control and management capabilities

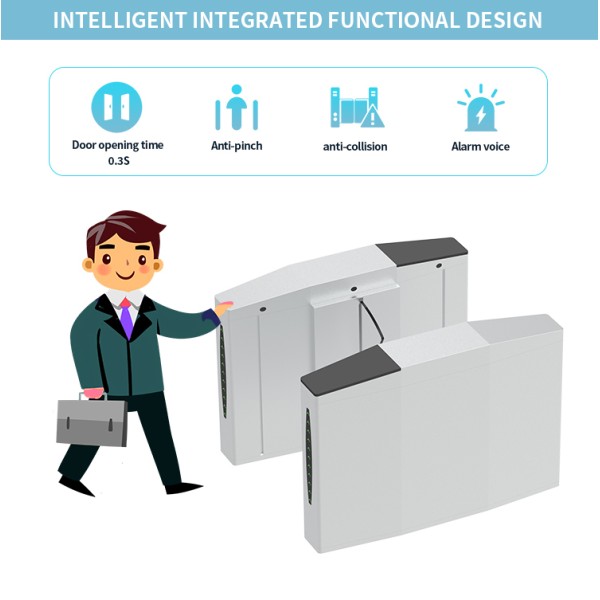

Product Images
CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access CW507 Bidirectional Stainless Steel Flap Barrier Gate for Airport and Data Center Access
