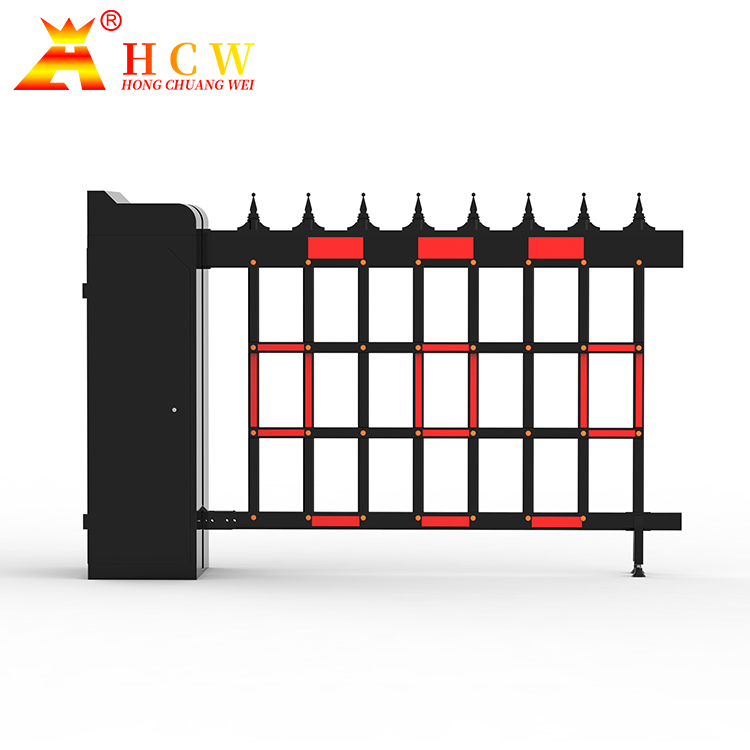

HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
Specifications
Supply Ability :
100 pieces per day
Product model :
CW-KM02
Model Number :
KM02
Motor power :
200W
Payment Terms :
T/T
Material :
2.0mm cold roller plate
IP grade :
IP42
Price :
Negotiable
MTBF :
5 million cycles
Max Boom Length: :
6M
MOQ :
1 piece
Delivery Time :
7-15 work days
Motor :
Brushless DC
Brand Name :
Hongchuangwei
Take-off time :
6s-9s
Certification :
CE
Place of Origin :
Shenzhn,China
Packaging Details :
wood case
Description
HCW KM02 Automatic Parking Folding Fence Barrier Gate
Premium Security Barrier Solution
The HCW KM02 medium-sized airborne gate barrier is an advanced four-lane security solution designed for modern parking management systems. Engineered with digital control technology, this barrier gate provides comprehensive monitoring throughout operation cycles, delivering intelligent and simplified access control management.
Advanced Control & Operation
Operate seamlessly via wireless remote control for lifting, lowering, and stopping functions, or utilize manual button controls. The innovative one-piece movement design integrates frame, reducer, and transmission mechanisms into a unified system, minimizing machine vibration while enhancing operational precision and reliability.
Key Features
  • High-strength steel construction with anti-collision design
  • Impact resistance and corrosion protection for harsh outdoor environments
  • IP56 protection rating for superior weather resistance
  • Service life exceeding 100,000 opening/closing cycles
  • Adjustable lifting speed (6-9 seconds) to match traffic flow requirements
  • Maximum 6-meter boom length for heavy-duty vehicle access
  • Optional dual-pole linkage to expand coverage and prevent tailgating
  • Multi-mode control compatibility (license plate recognition, RFID, Bluetooth, APP)
  • Advanced safety with radar or ground-sensing anti-crushing technology
  • 200W DC brushless motor with noise levels below 55dB
Technical Specifications
Product Name CW-KM02
Motor Type DC Brushless Motor
Power Supply 200W
Construction Material Cold Rolled Steel
Surface Treatment Galvanized + Powder Coated
Material Thickness 2.0mm
Chassis Dimensions 430×682×1534mm
Operating Temperature -40℃ to +80℃
Available Pole Types Fence Pole
Maximum Pole Length 6 meters
Lift/Drop Time 6-9 seconds (adjustable)
Noise Level <55dB
Protection Features Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection
Product Images
HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length HCW KM02 Automatic Parking Folding Fence Barrier Gate IP56 6M Boom Length
