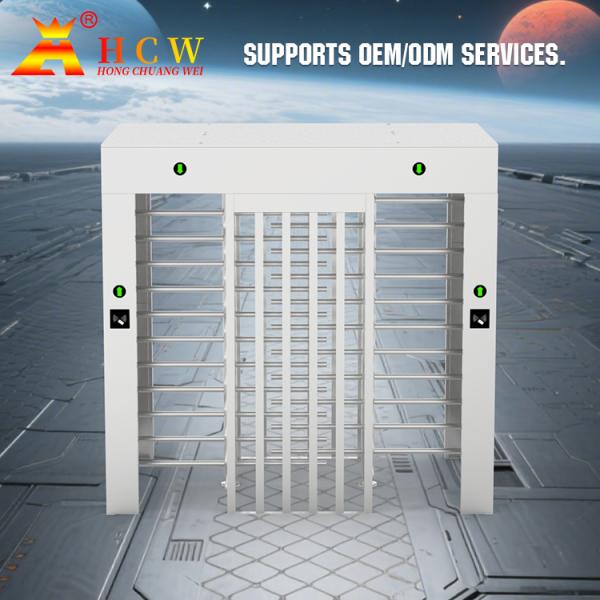

Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Specifications
Brand Name :
Hongchuangwei
Model Number :
CW802-2
Certification :
CE
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
7-15 working days
Packaging Details :
wood cases
Temperature :
-25 to 70 degrees
Humidity :
<95%, without concretion
Passage Width :
<=600mm
Dimension :
2400*1500*2300mm
Power supply :
AC220~240 V
Traffic direction :
one-way or two-way traffic
Fence length :
600mm
Description

Smart construction site access control full-height turnstile stainless steel



Product Overview

The 304 stainless steel full-height turnstile is a high-strength, high-security access control device, specially designed for places with large pedestrian flow and high security level requirements. Made of high-quality 304 stainless steel, it has excellent rust and corrosion resistance, and is suitable for various indoor and outdoor environments. The fully enclosed structure effectively prevents climbing and crossing, and when combined with an intelligent control system, it achieves efficient passage and safe management.


Standard product features
1. With zero self-checking function, it is convenient for users to maintain and use
2. Through the built-in buttons on the main board, the running status of the programmable device
3. This full-height turnstile adopts the latest generation movement
4.90 degree mechanical anti-submarine back function
5. Anti-collision function, when there is no signal to open the brake, the brake lever is automatically locked
6. Free passage after power failure, in line with fire protection requirements
7. It has an automatic reset function. After the gate is opened, if the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's permission to pass this time. The reset time is adjustable from 1s to 60s (the default time of the system is 10s), and the power is turned off. The rear channel is automatically opened (in compliance with fire protection requirements), and the power-on channel is automatically closed
8. The super bright direction indicator board indicates the traffic condition
9. The memory function of swiping the card to open the gate


The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.


Technical parameter
Product number CW802-2
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Motor type 90° full-height movement
Rated power Quiescent power consumption:＜50W,Dynamic power consumption:＜100W
Direction of passage One-way or two-way
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 20 people/minute
Opening time Non-adjustable
Number of trouble-free runs 5 million times
Channel width 600mm
Product Size 2400*1500*2300mm
Channel frame 1.2~2.0 thick 304 stainless steel(customization)
Package weight About 250KG


Smart Access Control Full Height Turnstile Stainless Steel For Construction Site

Smart Access Control Full Height Turnstile Stainless Steel For Construction Site

Smart Access Control Full Height Turnstile Stainless Steel For Construction Site

Smart Access Control Full Height Turnstile Stainless Steel For Construction Site

Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
