Specifications
Brand Name :
Hongchuangwei
Model Number :
CW804
Certification :
CE
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
7-15 working days
Packaging Details :
wood cases
Application :
Outdoor&Indoor
Power supply :
AC 220V/110V 10% 50/60MHZ
Relative Humitity :
<95%,no densation
Weight :
270kg
Service life :
≥6 million times
Traffic direction :
one-way or two-way traffic
Fence length :
600mm
Description

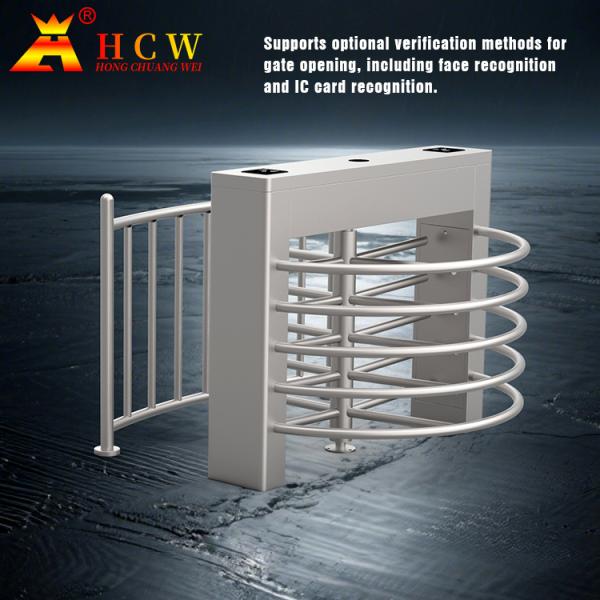

Durable Tested Sus304 Sturdy Maximum Security Waist High Turnstile Gate


Long stainless steel box, luxurious and beautiful appearance, sturdy and durable
With a personalized installation interface (convenient to integrate magnetic card, barcode, ID card and other reading and writing equipment)
Smooth operation, soft buffering, low noise, no mechanical shock
The surface of the movement is electroplated with white heavy zinc acid, which is rust-proof and durable
Programmable gate control, with a variety of working modes to choose from, one-way or two-way control can be set (set by the user)
Power-off opening: power-off unlocking and power-off locking. Under normal circumstances, the power is cut off and the lock is unlocked. When there is no power, the gate can pass through freely.
It has a unified and standard external electrical interface, which can be freely connected with various reading and writing devices, which is convenient for system integration.

It is extensively use in railway station, banking house, high class club, office, gym, swimming pooletc.. It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.
Features:
1. Mechanical, electromechanical or motorized designs available
2. Sensitive impact detection for maximum safety
3. Stable running with little noise .
4. Designed for 10 million opening and closing actions
5. Self-lock function :Arm will be locked automatically after passenger passing .


Model CW804
Power supply AC220+10% 50HZ
Rate power Static power consumption <50W, dynamic power consumption <100W
Rotation direction: One-way or two-way
Traffic direction One-way or two-way traffic
Communication interface 232,RS485
Product components 1set of standard case, 1 set of 90 degree revolving door,1 set of control panel, 1 set of movement,1set motor
Size L 1400*W 1450*H 1150 ,Chassis size:1400*280*1150
Barrier length 600mm, 90 degree barrier
Swing ≤600mm
Open door time Not adjustable
Number of passers: 20/min
Working environment temperature -25℃~+70℃,relative humidity ≤95%
Auto reset function After the gate is opened, the system will be automatically locked if the traffic is not passed within the specified time, and the travel limit time can be adjusted
