304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
Specifications
Brand Name :
Hongchuangwei
Model Number :
CW507
Certification :
CE
Place of Origin :
Shenzhen,China
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
7-15 work days
Packaging Details :
wood cases
Model :
CW507
Power supply voltage :
AC220V±10%
Working environment temperature :
-25℃~70℃
Relative humidity :
5-90%
IP protection level :
42
Power :
40W
Input control signal Switch quantity :
standard configuration does not include RS232, 485
Running speed (XX people/minute) :
40 people/minute
Description

Pedestrian Access Control Flap Barrier turnstile


Description

Cw507 intelligent octagonal inclined wing gate channel, using STC CPU chip, DC brushed motor, 5 pairs of infrared detection sensors, long life and high stability, supports various IC/ID card readers, barcode readers, ID card readers, etc. , Easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers, government and enterprise office buildings, high-end residential areas, kindergartens, etc.

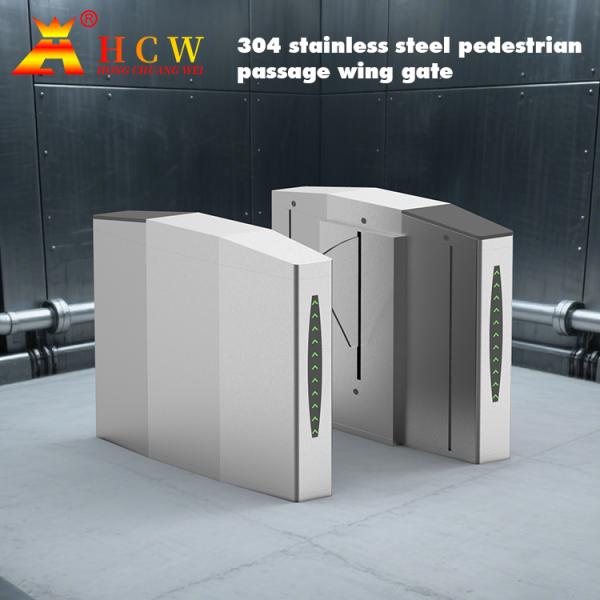

It is made of 304 stainless steel, featuring excellent rust resistance, corrosion resistance and wear resistance, and is suitable for various indoor and outdoor environments. Whether in high-temperature and humid coastal areas or dry and cold northern cities, it can maintain a long-lasting new appearance and stable performance, significantly reducing maintenance costs.

Quick response: The opening and closing speed of the wing gate is adjustable, supporting fast passage in 0.5~0.8 seconds, which avoids congestion and improves the efficiency of pedestrian flow.

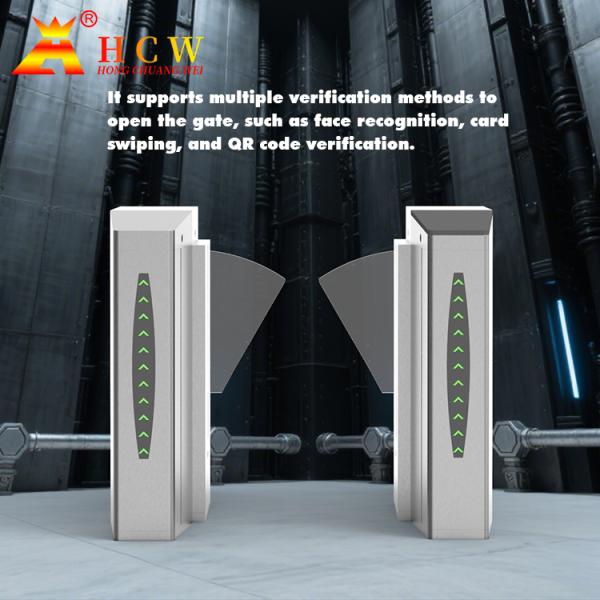

Multiple identification: Compatible with various verification methods such as IC card, fingerprint, face recognition, QR code, RFID, etc., seamlessly connecting to scenarios such as smart parks, subways, and office buildings.

Anti-tailgating design: High-precision infrared induction monitors the passage status in real time, effectively preventing tailgating or forced intrusion and ensuring regional safety.

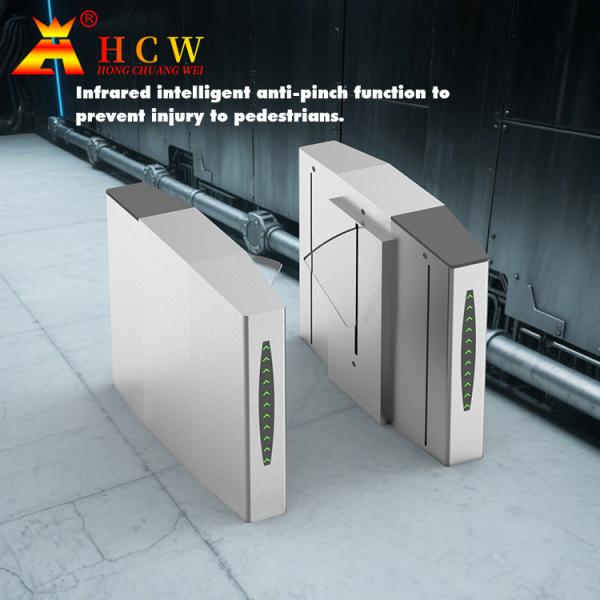

Anti-pinch protection: The gate is equipped with 4 pairs of infrared sensors, which will automatically rebound when encountering obstacles, protecting the safety of the elderly, children and people carrying luggage.

Wide passage option: A standard passage of 600mm is provided to meet the needs of barrier-free access for wheelchairs, strollers, etc.

Low-noise operation: Adopting a silent motor and a precision transmission structure, it opens and closes smoothly with noise below 50 decibels, making it suitable for quiet places such as hospitals and libraries.

The streamlined body with a matte stainless steel texture exudes a strong sense of modernity. Customizable LOGO or color schemes are available, allowing it to blend harmoniously with environments such as shopping malls, airports, and corporate lobbies, being both practical and tasteful.

Specification:

1) Framework: 304 Grade Stainless Steel

2) Specification: 1400*330*1000(mm)

3) Weight: 150(kg)

4) Glass Sliding Wall Height:1000~1400mm (adjustable), can be specially custom-made into 1800mm


Features:

1. Smart card reader compatible with a variety of card such as IC and ID card.

2. can be expanded to automatic identification system, realizing function of access control, Pedestrian flow control, attendance check or fare collection.

3. Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer


Parameters

Technical parameter
Product number CW507
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature ‘-25℃-70℃
Relative humidity 5%--90%
Motor 40W brushless DC
Rated power 70W
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30-40 people/minute
Infrared beam 4 pairs
Number of trouble-free runs 5 million times
Average life span 6 million times
Channel width 600mm
Swing arm material 15mm acrylic door panel
Product Size 1400*300*990mm
Channel frame 1.2~1.5mm thick 304 stainless steel
Package weight About 65 KG (single side road)


304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width

304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width

304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width

304 Stainless Steel Flap Barrier Turnstile 850mm Channel Width
