Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
Specifications
Brand Name :
Hongchuangwei
Model Number :
CW426
Certification :
CE
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
7-15working days
Packaging Details :
wood cases
Product name :
Swing turnstile
Type :
swing gate
Size :
1400*280*990(mm)
Flap opening/closing time :
0.7 s
Operating temperature :
-25 ~ +70℃
Usage :
Subway Station Mall
Power Supply :
AC100-240V
Passing Direction :
Single directional / Bi-directional
Description

Entrance Security Automatic Fast Speed Gate Swing Barrier Turnstile


Swing tursntile is an intelligent channel management equipment developed and produced by our company for many years. The equipment organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies. By configuring a variety of different reading and writing equipment, adopting reliable safety protection devices, real-time alarm system and direction indicating interface, the intelligent control and management of the channel can be realized together in coordination.


Precision Access, Intelligent Control——Next-Gen Pedestrian Swing Gate Solution

Equipped with high-precision sensors and AI algorithms, our swing gates achieve millisecond-level response for seamless pedestrian flow.
• Military-Grade Motor: 500,000+ cycles maintenance-free, ideal for high-traffic areas.

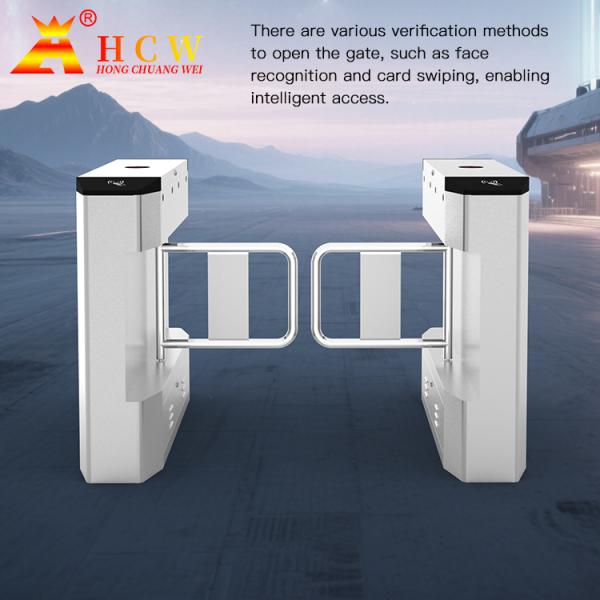

• Multi-Mode Verification: Supports face recognition, QR codes, IC cards, and fingerprint integration.
• Anti-Tailgating & Anti-Collision: Dual protection via infrared beams + mechanical rebound (IP54 rated).
• Smart Data Platform: Real-time crowd analytics and remote management for smart campuses/transport hubs.

Key Specifications

  • Speed: ≤0.8s/person

  • Operating Temp: -25℃~70℃

  • Protection: IP54

  • Protocols: RS485

Redefining Security and Efficiency Through Cutting-Edge Technology!


Technical parameter
Product number CW426
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Rated power 20W
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30~40 people/minute

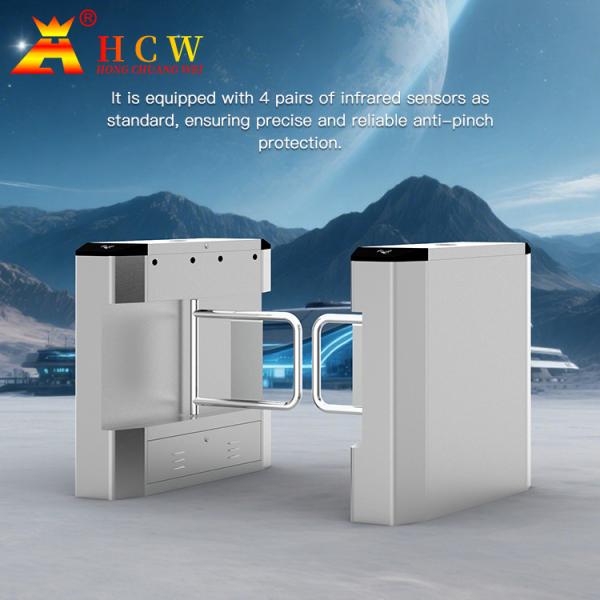

Infrared beam 4 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600~1400mm
Swing arm material φ35*304 stainless steel tube
Product Size 1400*280*990mm
Channel frame 1.0 thick 304 stainless steel
Package weight About 55 KG (single side road)





Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V

Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V

Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V

Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V

Entrance Security SS304 High Speed Gate Pedestrian Access Control AC100-240V
