Specifications
Brand Name :
Ho
Model Number :
CW602
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
7-15 working days
Packaging Details :
wood/carton
ower supply :
AC220V±10%,50±10Hz
Input interface :
12v level signal or pulse width, > 100ms 12v
Dimension :
1400x350x990mm
lane width :
550mm
Type :
Single Core
IP protection level :
42
Relative humidity :
≤90%
Material :
304 stainless steel
Description

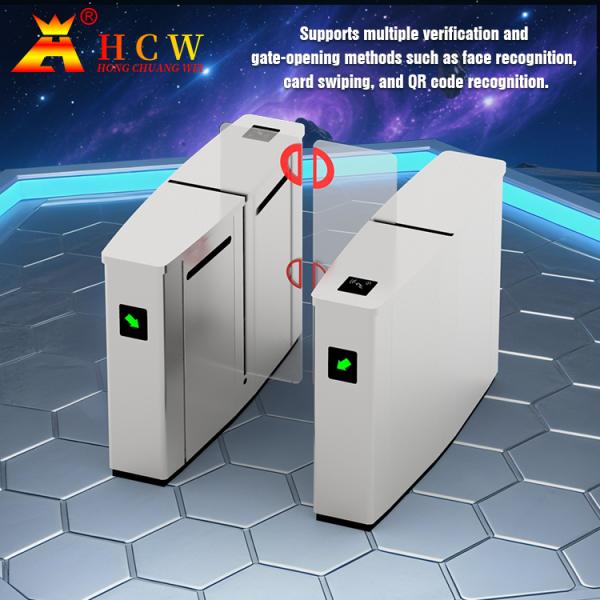

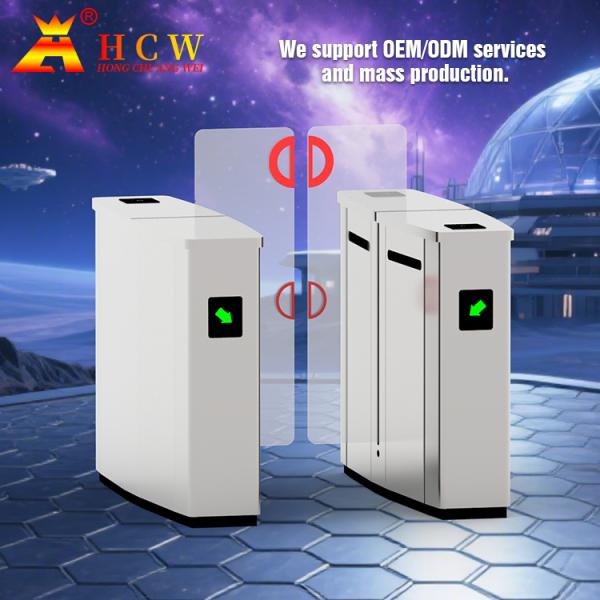

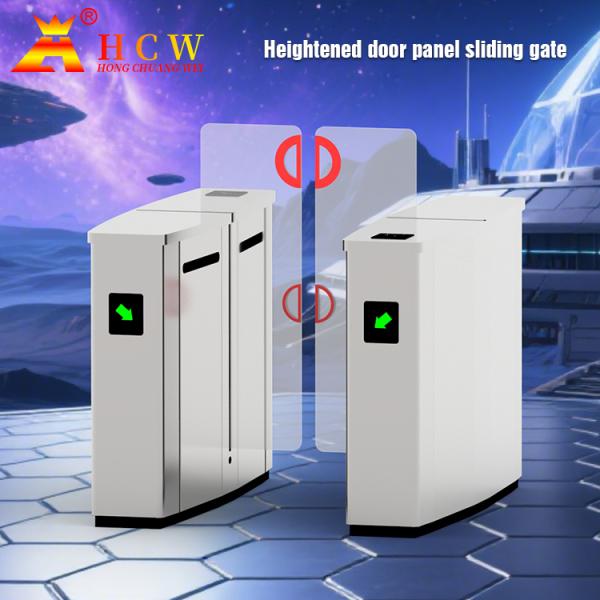

CW602 Intelligent pedestrian passage sliding gate, heightened door panel design


Sliding Turnstile Description


  • High security for entry control
  • Faster speed and better anti-tailgate performance
  • Connecting rod design result in running smoothly without noise
  • Anti-climbing anti-creeper design can offer strict entry control management
  • Infrared anti-pinch design and mechanical sleeping function(when the barrier is blocked) to ensure the safer passage
  • Sound and light alert for the illegal intrusion, reverse passing, tailgate and overdue passing etc;
  • Gates will auto open when power is off in case of the fire hazard.
  • Application scenarios: Indoor only
  • Anti-tailgate: good
  • Anticollision: good
  • Passing type:pedestrian-only



Test Item Test Environment Quantity Judgment basis(According to customer technical requirements) Test Results Test Conclusion
High temperature test +70℃ 12Hrs 1 PCS The sample can work normally, the appearance, structure and function of the sample are normal After the test, visually check that there is no obvious abnormality in appearance and structure, and it can work normally and function normally Meet the requirements
Low temperature test -30℃ 12Hrs 1PCS The sample can work normally, the appearance, structure and function of the sample are normal Meet the requirements


FAQ

1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.


2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.


3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.


4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.


Technical parameter
Product number CW602
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature ‘-30℃-70℃
Relative humidity 5%--90%
Motor type Brushless DC 24V
Direction of passage One-way or two-way
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30-40 people/minute
Infrared beam 6 pairs
Number of trouble-free runs 3 million times
Average life span 4 million times
Channel width 550mm
Swing arm material 10mm acrylic door panel
Product Size 1400*350*990mm
Channel frame 1.2~1.5 thick 304 stainless steel
Package weight About 70 KG (single side road)
