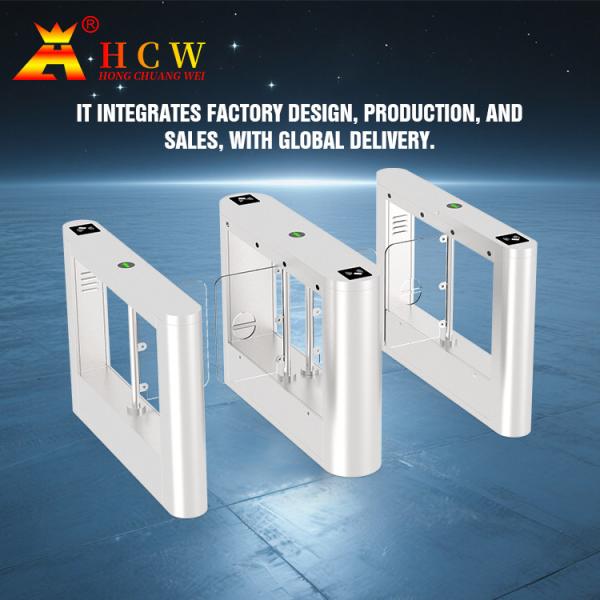

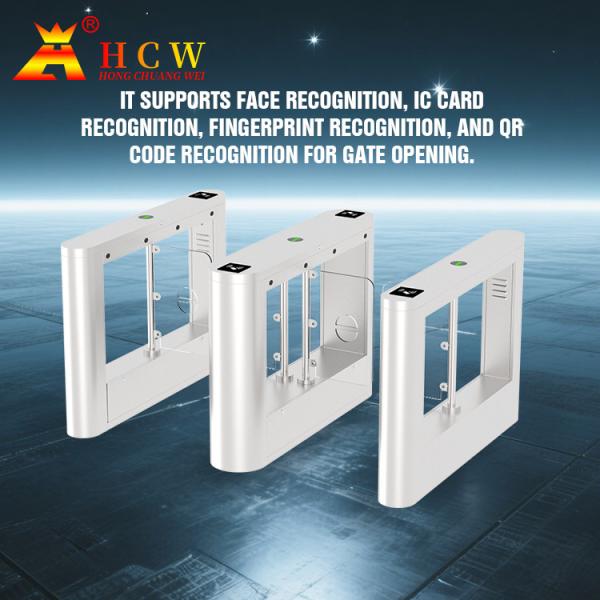

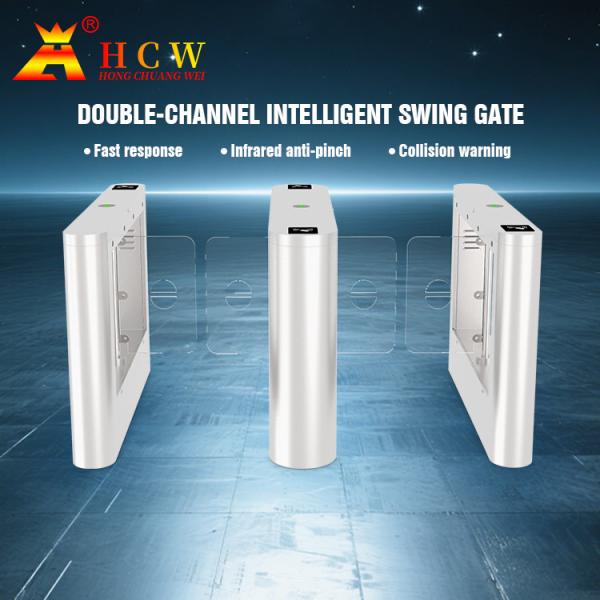

HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
Specifications
Brand Name :
Hongchuangwei
Model Number :
CW407
Certification :
CE/ISO 9001
Place of Origin :
Shenzhen,China
MOQ :
2 pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Relative Humidity :
≤95%, No Condensation
Max Access Width :
510mm
top cover thickness :
1.13mm
Communication :
face: Relay, RS485
card reading :
5.3cm
bar code scaning :
support
QR code :
support
fingerprint identification :
3033
face recognition :
20033
Material :
SUS 304
Description

Access control system glass door automatic swing gate turnstile


Provide an orderly and civilized way for entering and exiting personnel, and prevent illegal personnel from entering and exiting. At the same time, in order to meet the requirements of fire escapes, power outages and poles will be cut off in emergency situations to organize evacuation.


1, Problem self-recovery and corrective measure ability, convenient maintain and adjus

2, Motherboard with high clean sound read chips which could broadcast in light of user's requirment

3, Human base model indication function, real time displaying, improve the passing rate and convenient maintain

4, Automatic counting indicating passenger's number.

5, Resetting automatically, auto cancel the pass through and closed barrier in case nothing pass the channel in a setting time.

6, Anti pinch function with UPS to satisfy firefighter requires, ensure user's safe.

7, Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage.

8, Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.


Technical parameter
Product number CW407
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--80%
Rated power 20W
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30~40 people/minute
Infrared beam 4 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 500~910mm
Swing arm material 10*560*497.5 Acrylic
Product Size 1400*180*990mm(single movement)
1400*286*990mm(dual movement)
Channel frame 1.0~1.3 thick 304 stainless steel
Package weight About 55 KG (single side road)

HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min

HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min

HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min

HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min

HCW Glass Door Automated Barrier Turnstile Gate 20-30 Persons / Min
