Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
Specifications
Brand Name :
Hongchuangwei
Model Number :
CW426
Certification :
CE
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 pieces per day
Delivery Time :
7-15 working days
Packaging Details :
wooden case
Operating Temperature :
-25℃-70℃
Relative Humidity :
≤95%, No Condensation
Passage Width :
600mm( 1000mm optional)
Passing Speed :
Normally open-50persons/min
lane width :
540mm
pass direction :
bidirectional
waterproof :
IP54
outdoor use :
support
Description

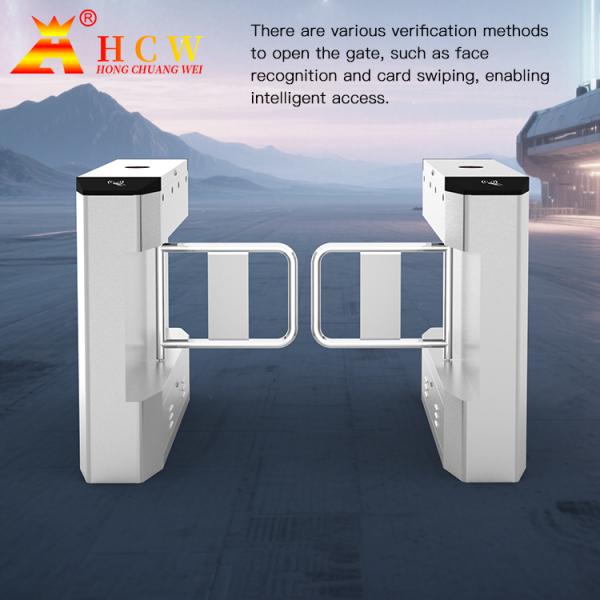

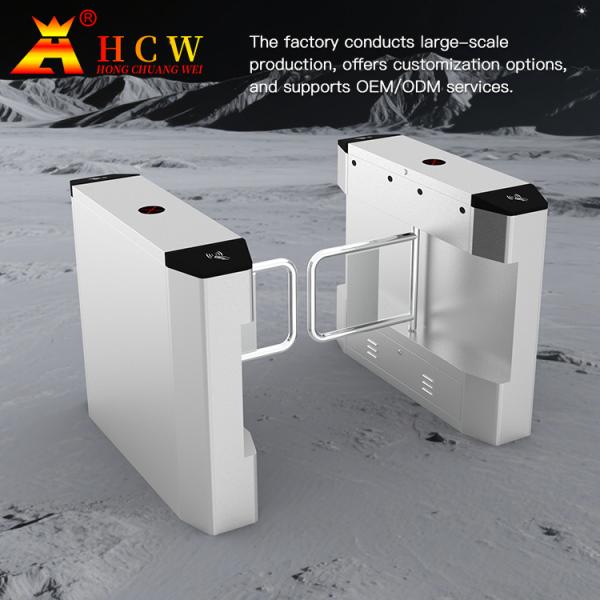

Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile​


Product Application:

Swing Turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card, face recognition device used for staff, provide civilized, orderly access methods, effectively manage the access of staff. It can be widely used in the station, wharf subway, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and institutions that need intelligent access management.

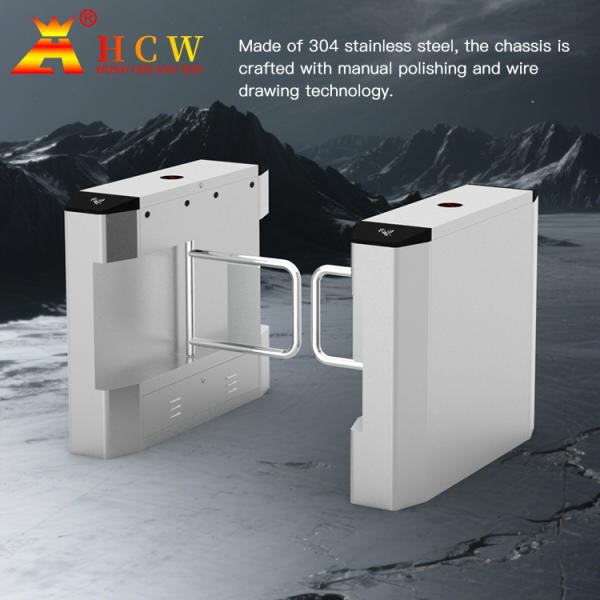

Durable 304 Stainless Steel Construction

Crafted from high-grade 304 stainless steel, our swing gates are rustproof, corrosion-resistant, and impact-resistant, ensuring long-lasting performance in both indoor and outdoor environments while maintaining a sleek appearance.

Intelligent Control, Smooth Passage

Supports card recognition, facial recognition, QR codes, fingerprint scanning, and more for fast, seamless access—reducing congestion and improving efficiency.

Advanced Safety & Reliability

Equipped with infrared anti-pinch and anti-tailgating detection, the gate automatically rebounds upon obstruction to ensure user safety. The high-strength mechanical core guarantees stable, durable operation.

Versatile Applications

Ideal for office buildings, subway stations, scenic spots, factories, schools, and more. Customizable in size, color, and functionality to fit diverse needs.



1. What is your products biggest advantage?
-------- DC brush-less motor, in China, only us use such motor in the turnstile; Electromagnetic clutch configuration, normal opening model, no worn down
2. Why you price is higher than others?
-------- Full automatic turnstile with DC brush-less motor, best materials, the our technology is the most advanced in China. And the same time, we can supply the cheap price turnstile to meet different clients.

3. Why your turnstiles can be working many years?
-------- DC brush-less motor, which can be working 3—5 years, Electromagnetic clutch configuration, normal opening model, no worn down

4. Can your turnstile can used outdoor?
-------- Yes, can be used both outdoor and indoor, however, for the long time use, we hope we can add the Canopy for the turnstile outsides

5. What's you warranty?
-------- 1 year time free warranty, little charge after one year, and all the life time technology freely.


Technical parameter
Product number CW426
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Rated power 20W
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30~40 people/minute
Infrared beam 4 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600~1400mm
Swing arm material φ35*304 stainless steel tube
Product Size 1400*280*990mm
Channel frame 1.0 thick 304 stainless steel
Package weight About 55 KG (single side road)

Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile

Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile

Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile

Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile

Automatic Pedestrian Barrier Entry Security Control Face Recognition Turnstile
