DC24V Brushless Motor Barrier Gate with Carbon Fiber Boom
DC24V Brushless Motor Barrier Gate with Carbon Fiber Boom
Specifications
Brand Name :
WEJOIN
Model Number :
DZJ-S
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negociate
Payment Terms :
T/T
Supply Ability :
10000 sets/month
Delivery Time :
7 working days
Packaging Details :
carton
operating time :
0.6s~4s
boom type :
Straight Round Arm
housing material :
steel with powder coating
Color :
Yellow
Application :
parking lot
Warranty :
2 Year
Description

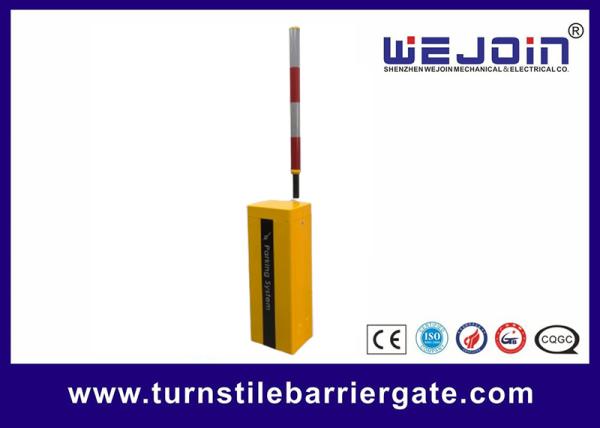

DC24V Brushless Motor Barrier Gate with Round Carbon Fiber Boom


Boom Barrier Basic Features:

1. DC24V brushless motor, equipped with connecting rod transmission mechanism and balance spring, high power output, high efficiency, and lower noise.

2. With auto-reversing on obstruction function and delay auto-closing function, support counting function and motorcade passing mode.

3. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. DC24V power supply is optional.

Intelligent Barrier Types:

Type

Description (Boom Length=L, Meters=M, Seconds=S)

Barrier gate with round carbon fiber boom

L≤3M, up speed 0.6S.

L≤3.5M, up speed 0.9S.

L≤4M, up speed 1.6S.

Barrier gate with round aluminum boom

L≤3M, up speed 0.9S.

L≤3.5M, up speed 1.5S.

L≤4M , up speed 2S.

L≤4.5M , up speed 3S.

Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC100~265V

3. Controller input voltage: DC24V±10%, 10A

4. Motor power: 240W

5. Relative Humidity: 30%~80%, No condensation

6. Distance of remote control: open and undisturbed, L≤50M

7. Running Speed: 0.6~4 seconds adjustable

8. MTBF: 6,000,000 times


DC24V Brushless Motor Barrier Gate with Carbon Fiber Boom
