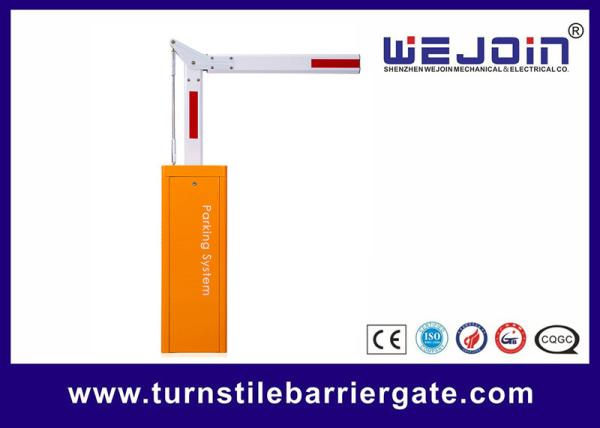

Smooth Vehicle Entry 6m Telescopic Boom Car Park Barrier Gate with 6s Opening Time and Aluminum Alloy Arm
Smooth Vehicle Entry 6m Telescopic Boom Car Park Barrier Gate with 6s Opening Time and Aluminum Alloy Arm
Specifications
Brand Name :
WEJOIN
Model Number :
DZJ
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 sets/month
Delivery Time :
12 working days after payment received
Packaging Details :
carton
Boom Type :
Straight boom, Folding boom, Fence Boom
Housing color :
Orange
Application :
parking lot
Speed :
3s,6s
Boom length :
Max 6M
Arm material :
Aluminum alloy
Description

High-Performance Car Park Barrier Gate with 6m Telescopic Boom and 6s Opening Time for Smooth Vehicle Access


Boom Barrier Technical Data

1. Working voltage: 220V士10%,50HZ or 110V 士10%,60HZ

2. Rated Power: 200W

3. Working temperature (motor and control panel): -35°C + 80°C

4. Humidity:≤90% RH

5. Distance of remote control: 100M>L≥30M in the open place


Boom Barrier Spring Selection Table

Boom Type

Boom Length

(Meter: M)

Spring Diameter

Φ (mm)

Straight Boom without Rubber

6≥L≥4.8

Φ5.5+Φ4.5

4.8>L≥3.5

Φ5.5

3.5>L≥2.5

Φ4.5

Straight Boom with Rubber

6≥L>5.3

Φ6.8+Φ4.5

5.3≥L≥4.3

Φ5.5+Φ4.5

4.3>L≥3.3

Φ4.5+Φ4.5

3.2≥L

Φ4.5

Articulated Boom

5≥L>4.3

Φ5.5+Φ4.5

4.3>L≥3

Φ4.5+Φ4.5

3>L

Φ4.5

Fence Boom, Two - levels

4.5≥L≥4.3

Φ6.8+Φ5.5

4.3>L≥3.8

Φ6.0+Φ5.5

3.8>L≥3

Φ5.5+Φ4.5

3>L

Φ4.5+Φ4.5

Fence Boom, Three - levels

4≥L≥3.8

Φ6.8+Φ5.5

3.8>L≥3.3

Φ6.0+Φ5.5

3.3>L≥2.5

Φ5.5+Φ4.5


Automatic Barrier Functions and Features

1. Open the barrier gate by the motor wheel when power is off and automatically reset when power is on.

2.Balanced boom running with a motor transmission of cranks and shafts.

3.Remote control to operate the barrier gate.

4.Auto-reverse when boom meets obstruction (only for barrier using the digital limit device)

5.Infrared photocells interface is available (need to install photocell device).

6.Loop detector interface is available (need to install loop detector).

7. Well-integrated with car parking system equipment, with wire control (must be dry contact signal).

8.Interface for the traffic light,dry contact output (traffic light must be less than 10A)

9. Offering signal of limit status for car parking system (output COM,NC,NO).

10.Auto-closing function(adjustable from 3s to 30s,factory default off this function).
