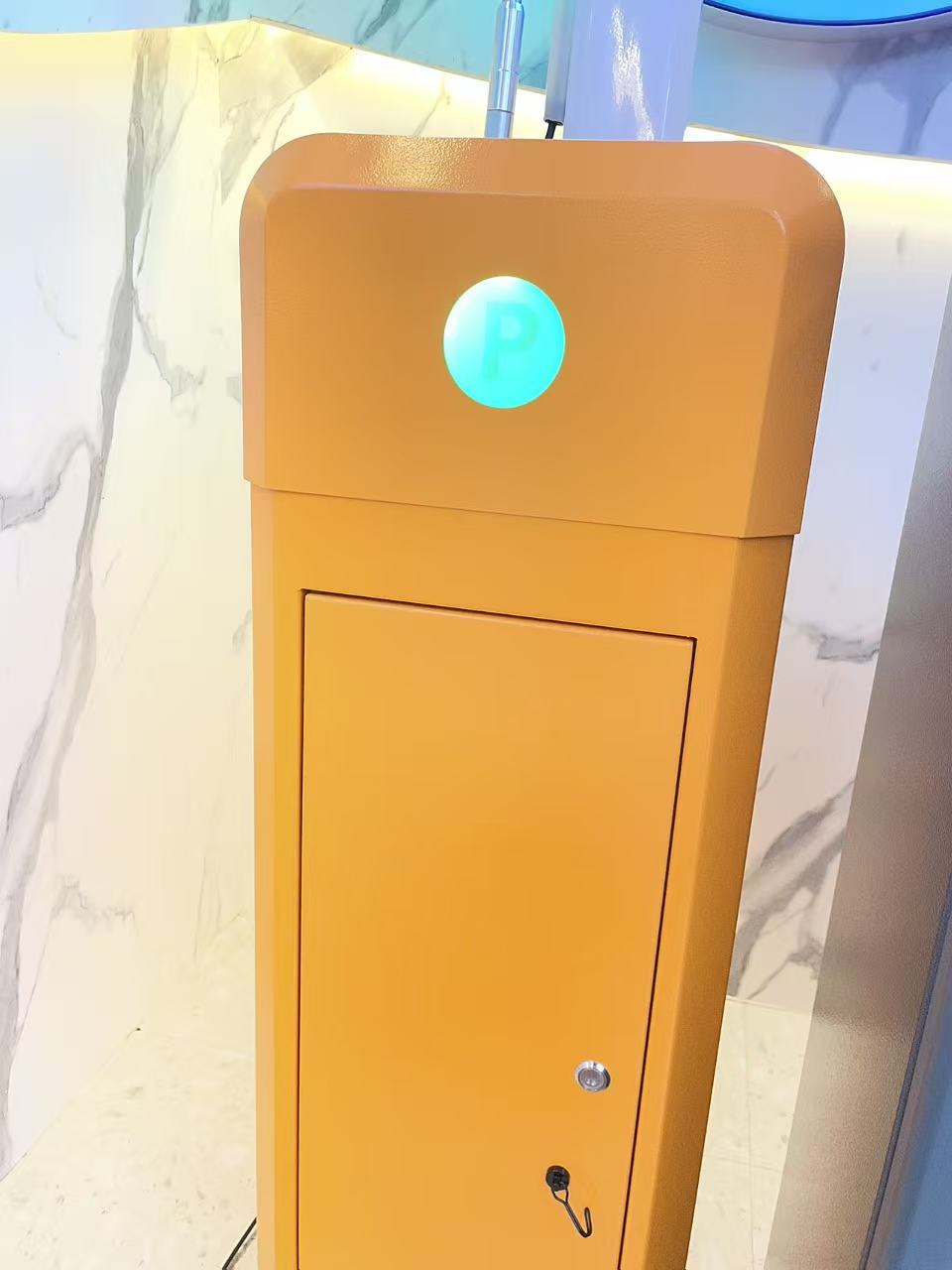

WEJOIN DC 24V Brushless Motor Automatic Barrier Gate with Variable Frequency Control and 6M Boom Length for Parking Lots
WEJOIN DC 24V Brushless Motor Automatic Barrier Gate with Variable Frequency Control and 6M Boom Length for Parking Lots
Specifications
Brand Name :
WEJOIN
Model Number :
CB01VF-I
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
50 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 sets/month
Delivery Time :
15 working days after payment received
Packaging Details :
Carton
Boom Type :
Straight boom / Floding Boom
Voltage :
AC 110V-265V
Boom length :
Max 6M (customized)
Warranty :
2 year
Housing color :
Gold
Application :
parking lot
Description
WEJOIN DC Variable Frequency Barrier Gate
High-Performance Automatic Parking Barrier for demanding access control applications
Key Features & Capabilities
DC 24V Brushless Motor System
Equipped with DC24V brushless motor and worm gear + planetary reduction transmission
High output torque with low wear and smooth operation
Ideal for high-frequency vehicle access control and continuous duty cycles
DC Variable Frequency Control
Precise speed and motion control with soft start and soft stop functionality
Reduced mechanical impact significantly extends service life
Adjustable opening/closing speed to match different traffic flow requirements
Intelligent Anti-Collision Protection
Auto-reversing on obstruction for enhanced safety
Fast response to protect vehicles and pedestrians
Supports optional loop detector, infrared photocell, and radar anti-crush systems
Manufacturer Profile
The WEJOIN DC Variable Frequency Barrier Gate is a next-generation automatic vehicle access control solution, independently developed by Shenzhen Wejoin Mechanical & Electrical Co., Ltd. Designed for high-traffic, 24/7 operation environments, this barrier gate combines a DC24V brushless motor with advanced variable frequency control technology, delivering superior stability, safety, and service life.
Widely used in parking lots, toll stations, commercial complexes, residential communities, industrial parks, airports, and logistics centers.
Technical Specifications
Model WJCB01VF-H WJCB01VF-I
Running Speed 1-4S 2-6S
Boom Type Straight Straight
Max Boom Length 4.5M 4M~8M
Input Voltage AC100-265V
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
Working Temperature -30°C ~ +70°C
MTBF 6000000 times
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 240W 180W
Max Motor Speed 500r/min 360r/min
Max Torque 280N.m 320N.m
