Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom
Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom
Specifications
Brand Name :
WEJOIN
Model Number :
CB01VF-I
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
50 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000 sets/month
Delivery Time :
15 working days after payment received
Packaging Details :
Carton
Boom Type :
90 degree Folding boom
Voltage :
AC 110V-265V
Boom length :
Max 6M (customized)
Warranty :
2 year
Housing color :
Gold
Application :
parking lot
Description

Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom


Vehicle Barrier Gate Functions & Features
1). DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.

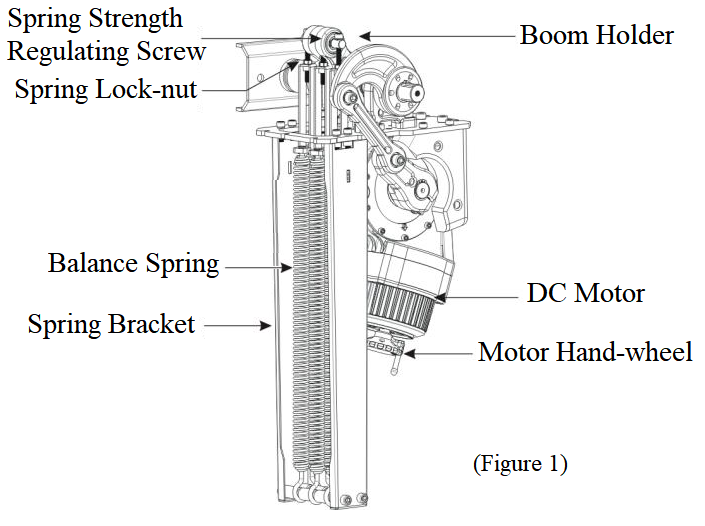

Mechanism Structure


Automatic Barrier Gate System Traffic Boom Vehicle Barrier Gate 90 Degree Folding Boom


Vehicle Barrier Gate Warranty and Service Items

  • Free service is offered for component parts in one year warranty time.
(not includes the barrier boom or remote)
  • Lifetime service with charge accordingly.
  • Technical questions are supported.


Vehicle Barrier Gate Technical Data
Model WJCB01VF-H WJCB01VF-I
Running Speed 1-4S 2-6S 6S 6S 6S 6S
Boom Type Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence
Max Boom Length 4.5M 4M~8M 5M 4M 4.5M 4M
Input Voltage AC100-265V
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
Working Temperature -30°C ~ +70°C
MTBF 6000000 times
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 240W

180W
Max Motor Speed 500r/min
360r/min
Max Torque 280N.m
320N.m

Vehicle Barrier Gate Applications:

  • Station
  • Highway toll gate
  • High-grade residential area
  • Commercial parking lots
  • Enterprises and institutions
  • Commercial Plaza
