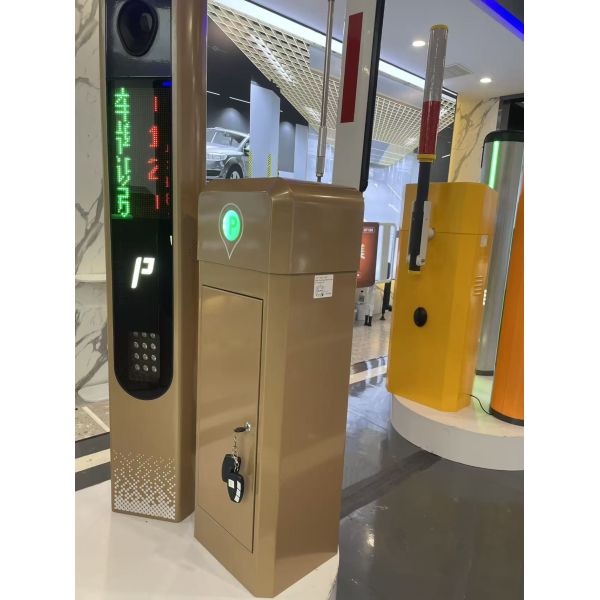

DC24V Variable-Frequency 100% Duty Cycle 2Fence 4.5M Boom Remote Control Barrier Gate designed for reliable performance in continuous operation environments.

The boom barrier gate is equipped with a DC variable frequency motor, combined with a heavy-duty connecting rod transmission mechanism and balancing spring system. This configuration delivers smooth and stable boom movement while maintaining reliable performance under continuous operation.

• DC variable frequency motor with precise speed control
• Robust connecting rod transmission mechanism for enhanced durability
• Balanced spring structure for stable boom movement
• Soft start and soft stop to reduce mechanical impact
• Motor service life up to 6 million cycles
• Balance spring service life up to 500,000 cycles

This design helps ensure long-term reliability in high-frequency vehicle access applications.

To improve operational safety, the barrier gate features an automatic reversing function.

• During boom closing, if an obstacle is detected, the boom immediately reverses direction
• Helps prevent damage to vehicles and equipment
• Improves safety for vehicles and pedestrians
• Suitable for residential communities, parking lots, and commercial entrances

The controller supports various external anti-crush devices to provide comprehensive safety protection.

• Radar sensor
• Loop detector
• Infrared photocell

• Integrated DC 12V power output
• Directly powers external devices such as radar sensors
• Simplifies wiring and installation

Designed for intelligent parking systems and centralized management platforms, the barrier gate supports multiple communication methods.

• Standard RS485 communication
• Relay signal output
• Integration with parking management systems
• Compatible with license plate recognition (LPR) systems

RS485 offline communication enables multiple barrier gates to operate synchronously without requiring a central controller, making it suitable for dual-lane or multi-lane entrances.

An optional Bluetooth module provides convenient wireless commissioning and diagnostics.

• Connect via smartphone or tablet
• Parameter configuration through mobile app or mini-program
• Real-time debugging and status monitoring
• Faster installation and maintenance

This feature improves commissioning efficiency for installers and system integrators.

The barrier gate is equipped with a large LCD display and English visual menu for easy operation.

• Intuitive parameter setting
• Convenient function selection
• Simplified troubleshooting
• Faster on-site commissioning

The user-friendly interface helps reduce installation and maintenance time.

This interface is available for parking system, also available for external controller to control barrier gate.

• UP: Short circuit "UP" and "GND"
• Down: Short circuit "Down" and "GND"
• Stop: Short circuit "Stop" and "GND"

• Infrared Photocell: boom will lift up when short circuiting "Infrared photocell interface" and "GND" during boom down
• Loop Detector: boom will lift up when short circuiting "loop detector interface" and "GND" during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected

It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.
