Delay Auto-Closing RS485 Communication 4.5m Fence Length Non-Spring Boom Barrier Gate for Parking Lots
Delay Auto-Closing RS485 Communication 4.5m Fence Length Non-Spring Boom Barrier Gate for Parking Lots
Specifications
Payment Terms :
T/T
boom type :
straight folding fencing
Warranty :
1 Year
Supply Ability :
10000 sets/month
operating time :
1.8s~6s
Model Number :
E40
MOQ :
1 set
Delivery Time :
30 working days
Boom Length :
max.6m
Price :
negociate
Color :
gold
Application :
parking lot
Packaging Details :
carton
Certification :
CE ISO SGS
Place of Origin :
CHINA
Brand Name :
WEJOIN
Description
Delay Auto-Closing RS485 Communication Two Fence Length 4.5m Non Spring Fence Barrier Gate
Product Overview

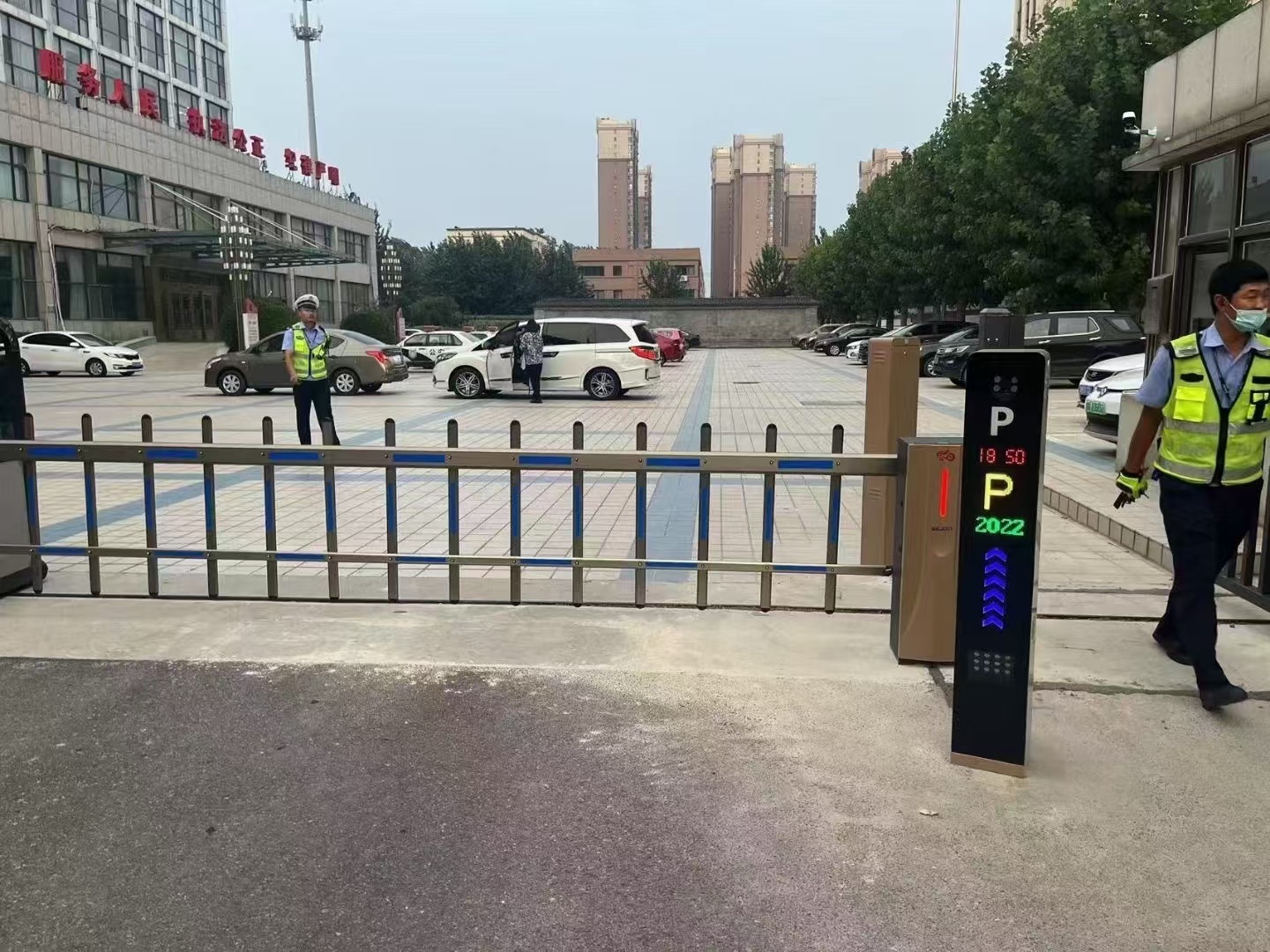

This intelligent boom barrier gate features delay auto-closing functionality, RS485 communication capabilities, and a two-fence design with a 4.5-meter boom length. The non-spring drive mechanism ensures reliable operation and extended service life.

Barrier Types & Specifications
Barrier Types Description (Boom Length=L, Meters=M, Seconds=S)
Barrier gate with fence boom
  • Two-levels, L≤3M, up speed 4S
  • Two-levels, L≤3.5M, up speed 5S
  • Two-levels, L≤4.5M, up speed 6S
  • Three-levels, L≤3M, up speed 5S
  • Three-levels, L≤3.5M, up speed 6S
Key Features
5 Million+ Cycle Operating Life

The E40Pro is specified with an operating life of more than 5 million cycles. For a barrier gate, operating life is closely related to the mechanical structure, motor system, transmission components, operating frequency, and actual working environment.

The E40P uses a 24V DC permanent-magnet motor and a springless drive mechanism as part of its mechanical configuration. For project evaluation, the 5-million-cycle specification provides a measurable reference for estimating equipment usage over the expected service period.

Modular Mechanical Design for Easier Maintenance

The DZE4 mechanism adopts a modular structure. This allows the mechanical assembly and controller to be accessed and serviced separately, while the controller provides fault-code indication for troubleshooting.

The design includes comprehensive functions:

  • Fault code indication
  • Automatic testing mode
  • Delay auto-closing
  • Vehicle-following mode
  • Position relay signal output
  • RS485 communication
  • Ground loop and radar detector interfaces

These functions allow the barrier gate to be seamlessly integrated into different parking and access control systems.

Three-Fence Boom Installation
Step 1. Fix the boom fixing plate on the boom with 2pcs of M12*70mm hexagon screw.
Step 2. Hold the fixing plate by hand, then lift up the boom vertically and install it on the boom holder. And then install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.
Step 3. Fix the U-connecting unit to the cone axis on the barrier with the screw.
Step 4. Fix the bottom fence to the U-connecting unit, then release the 2pcs screw of the unit and adjust them to make the fence be perpendicular to the ground.
