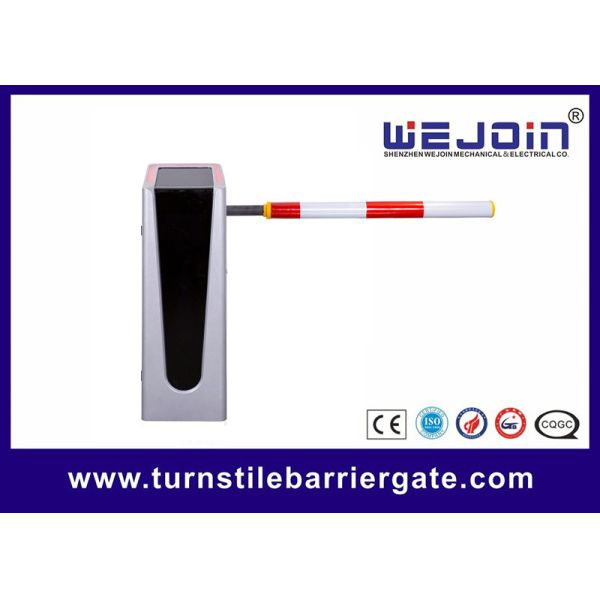

Round Boom Type Parking Barrier Gate with 5 Million Operating Times and 0.9s~5s Running Speed
Round Boom Type Parking Barrier Gate with 5 Million Operating Times and 0.9s~5s Running Speed
Specifications
operating time :
0.9s~5s
motor material :
aluminum alloy
Brand Name :
WEJOIN
Model Number :
CB02
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negociate
Payment Terms :
T/T,Western Union
Supply Ability :
10000 sets/month
Delivery Time :
3-5 working days
Packaging Details :
carton
Application :
for enterprises and institutions
Color :
Grey
Warranty :
1 Year
boom type :
round boom
Description
Round Boom Type Parking Barrier Gate - 5 Million Operating Times Long Service Life
0.9s~5s Running Speed Entrance Barrier Gate - 5 Million Operating Times Automatic
WEJOIN Commercial Servo Barrier Gate WJCB02
Fastest running speed can be 0.4 seconds (model WJCB02E, 0.4~0.9s adjustable). 100% duty cycle and free-maintenance design makes this barrier ideal for toll stations and parking systems.
Functions and Features
  • Innovative electronic clutch design: press the electronic clutch switch to unlock when power is off, allowing the boom to be raised directly
  • No limit switch design: motor automatically detects boom position
  • Bi-directional boom holder design: left and right installation can be exchanged easily and quickly
  • Three springs available to extend spring service life
  • Auto-detect barrier close after power-on with adjustable open/close speed
  • Auto-reversing on obstruction function
  • Infrared photocell interface available (requires photocell device installation)
  • Loop detector interface available to avoid hitting vehicles and control boom falling automatically after vehicle passing (requires loop detector installation)
  • Built-in counting function stores opening signal times and deducts when vehicles pass the loop, improving traffic efficiency
  • Built-in delay auto-closing function coordinates with counting function for automatic boom lowering
  • Integrated RS485 communication interface for computer control and status query
  • Integrated RJ45 network interface for network-based control and status query
CB02E Series Boom Length and Speed Selection
Model CB02E (0.5-0.9S)
Boom Type Carbon Fiber Round Boom
Boom Length ≤2M | ≤3M
Passing Speed 0.5/0.7/0.9S | 0.9S
Running Speed 0.5/0.7/0.9S | 0.9S
CB02E Series Technical Data
Input Voltage AC 220V±10%, AC110V
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C~+85°C
MTBF 10,000,000 times
Duty Cycle 100%
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 300W
Max Motor Speed 90r/min
Max Torque 480N.m
WEJOIN Barrier Gate Applications
  • Station
  • Highway toll gate
  • High-grade residential area
  • Commercial parking lots
  • Enterprises and institutions
  • Commercial Plaza
Round Boom Type Parking Barrier Gate with 5 Million Operating Times and 0.9s~5s Running Speed
