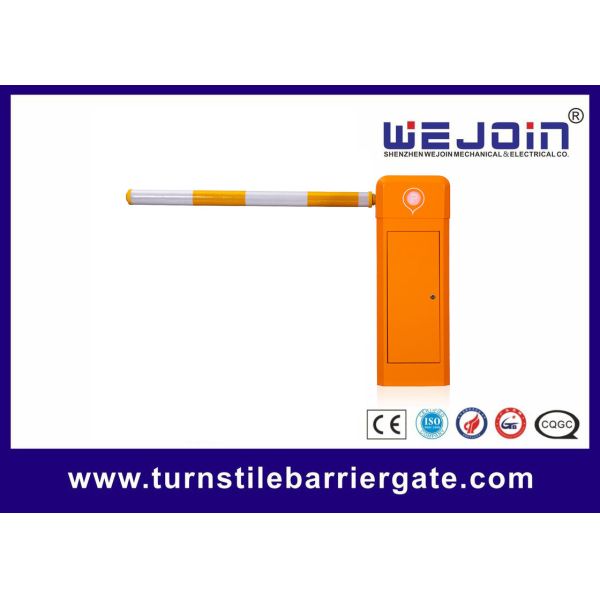

Automatic Barrier Gate with DC Servo Motor 6M Boom Length and Adjustable Speed for Parking Lots
Automatic Barrier Gate with DC Servo Motor 6M Boom Length and Adjustable Speed for Parking Lots
Specifications
Housing color :
orange
Boom Type :
round boom
Boom length :
Max 6M (customized)
Material :
steel housing
Application :
parking lot
Brand Name :
WEJOIN
Model Number :
CB01SV
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
10000 sets/month
Delivery Time :
12 working days after payment received
Packaging Details :
carton
Speed :
1-2s/3-5s speed adjustable
Description
Automatic Car Barrier Drop-Arm Barrier Gate with Remote Control

This advanced DC servo barrier gate utilizes updated electronic control technology and precision machinery processing to deliver reliable, high-performance vehicle access control.

Quick Overview
  • Strong torque, high precision control, low temperature operation
  • Standard traffic light integration
  • Adjustable speed: 1-2s or 3-5s options
  • Available in gold, black, and orange colors
Product Features
  • DC permanent magnet synchronous motor (PMSM) with servo control
  • High control precision, torque density, and efficiency with low noise
  • Bi-directional boom holder design for flexible left/right installation
  • Manual clutch mechanism for manual operation during power outages
  • Double tension spring crank transmission for stable, reliable performance
  • No limit switch design with accurate encoder position detection
  • Fast obstacle detection and reversal response
  • Counting, delay auto-closing, and auto-aging test functions
  • 4-digit digital tube display for comprehensive information
  • Optional NO/NC wire control signal input
  • Integrated RS485 communication, infrared photocell, and loop detector interfaces
  • Expandable with RJ45 network, loop detector, and radar modules
Technical Specifications
Model WJCB01SV-H WJCB01SV-I
Running Speed 1/1.5/2S 3/4/5S
Boom Type Straight Straight
Max Boom Length 3.5M~4.5M 4.5M~6M
Input Voltage AC220V±10%, AC110V±10%
Frequency 50/60HZ
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C ~ +85°C
MTBF 6,000,000 cycles
Traffic Flow Application 24 hours uninterrupted operation
Max Motor Power 150W
Max Motor Speed 36r/min
Max Torque 240N.m
Automatic Barrier Gate with DC Servo Motor 6M Boom Length and Adjustable Speed for Parking Lots
