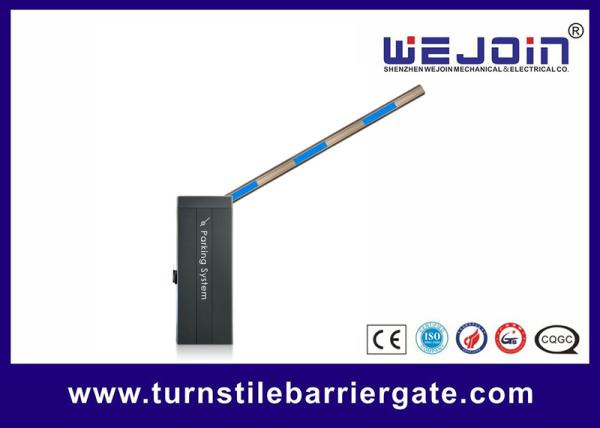

AC110V Bidirectional Straight Boom Parking Barrier 4.5m arm
AC110V Bidirectional Straight Boom Parking Barrier 4.5m arm
Specifications
Brand Name :
WEJOIN
Model Number :
E20
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 sets/month
Delivery Time :
12 working days after payment received
Packaging Details :
carton
Boom Type :
Straight boom
Voltage :
AC110V or 220V
Boom length :
Max 6M (customized)
Warranty :
2 year
Housing color :
yellow-green
Application :
Parking solution
Description

Intelligent straight boom parking barrier / automatic barrier gate

Features:
1. Can work continuously, it will not be stopped because of the temperature.
2. In case of power failure, the barrier can be opened and closed manually after the release clutch.
3.Can be connected with photocell.

Vehicle Barrier Gate Technical Data
ModelWJDZE (speed 3~5s adjustable)
Running Speed3S4S5S5S5S5S5S
Boom-TypeStraightStraightStraight90° Folding180° Folding2 Fence3 Fence
Max Boom Length4.5M5M6M5M4M4.5M4M
Input VoltageAC220V±10%, AC110V±10%
Frequency50/60HZ
Motor VoltageDC310V
Enclosure RatingIP54
Working Temperature-35°C ~ +85°C
MTBF3 million times
Traffic Flow Application24 hours of uninterrupted operation
Max Motor Power120W
Max Motor Speed24r/min
Max Torque240N.m
Maintenance

1. Keep the barrier gate clean.
2. Check the joints ever month in case of any loose parts.
3. Check the balance status of spring after the barrier gate running 1 million times; change new springs after running 3 million times, to avoid spring breaking due to excessive fatigue.

Vehicle Barrier Gate Functions & Features
1. No clutch design: open the barrier gate by manual handwheel when the power of.
2. No limit switch design: the motor can detect the boom position automatically.
3. Bi-direction boom holder design: left- installation and right-installation can be exchanged easily and quickly.
4. Self-detect after power-on, open/close speed is adjustable.
5. With auto-reversing on obstruction function.
6. Infrared photocell interface and Loop detector interface are available.
7 . Built-in delay auto-closing function ,coordinated with counting function .
8. With auto-aging test function.
9. NO / NC wire control signal input is optional.
