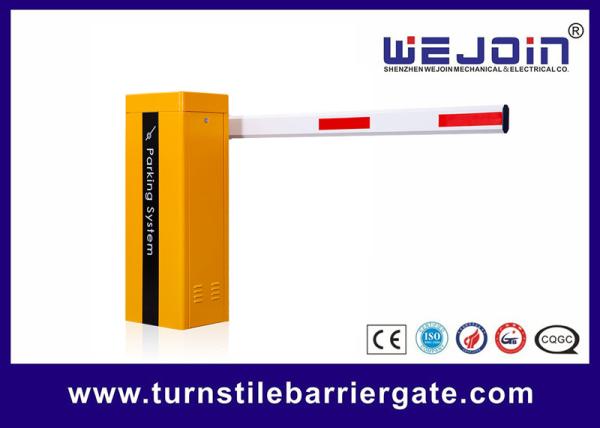

IP54 AC110V Access Control Barrier Gate For Parking System
IP54 AC110V Access Control Barrier Gate For Parking System
Specifications
Brand Name :
WEJOIN
Model Number :
E20
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 sets/month
Delivery Time :
12 working days after payment received
Packaging Details :
carton
Boom Type :
Straight boom
Voltage :
AC110V or 220V
Boom length :
Max 6M (customized)
Warranty :
2 year
Housing color :
yellow-green
Application :
Parking solution
Description

Intelligent straight boom parking barrier / automatic barrier gate


Features:
1. Can work continuously, it will not be stopped because of the temperature.
2. In case of power failure, the barrier can be opened and closed manually after the release clutch.
3.Can be connected with photocell.

Vehicle Barrier Gate Technical Data
Model WJDZE1 (speed 1.8~6s adjustable)
Running Speed 1.8s 3S 4S 5/6S 5/6S 5/6S 5/6S 5/6S
Boom-Type Straight Straight Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence
Max Boom Length 4m 4.5M 5M 6M 5M 4M 4.5M 4M
Input Voltage AC220V±10%, AC110V±10%
Frequency 50/60HZ
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C ~ +85°C
MTBF 3 million times
Traffic Flow Application 24 hours of uninterrupted operation
Max Motor Power 120W
Max Motor Speed 24r/min
Max Torque 240N.m

Vehicle Barrier Gate Functions & Features
1. No clutch design: open the barrier gate by manual handwheel when the power of.
2. No limit switch design: the motor can detect the boom position automatically.
3. Bi-direction boom holder design: left- installation and right-installation can be exchanged easily and quickly.
4. Self-detect after power-on, open/close speed is adjustable.
5. With auto-reversing on obstruction function.
6. Infrared photocell interface and Loop detector interface are available.
7 . Built-in delay auto-closing function ,coordinated with counting function .
8. With auto-aging test function.
9. NO / NC wire control signal input is optional.

WEJOIN's Main Advantages

1.The global leading company for barrier gate

2.Master of core technology and innovation

3.The intelligent quality manufacturing process and automatic flexible production

4.The global advanced manufacturing process and testing equipment

5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique

6. High speed and low speed coexist in motor

7.Integral service network covering first-tier and second-tier cities, and more under the construction service network


IP54 AC110V Access Control Barrier Gate For Parking System
