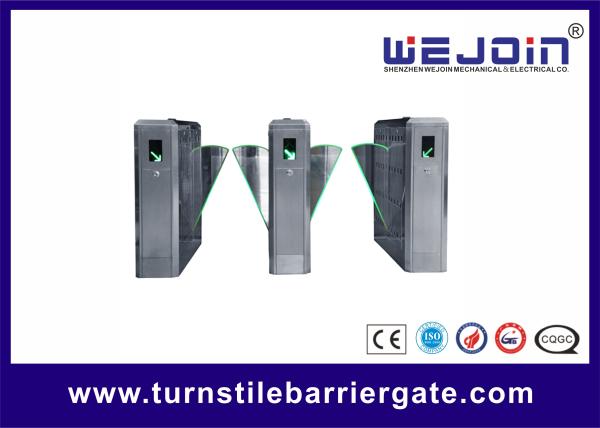

Classic Access Control Flap Barrier Gate For Best Sales 220V
Classic Access Control Flap Barrier Gate For Best Sales 220V
Classic Access Control Flap Barrier Gate For Best Sales 220V
Classic Access Control Flap Barrier Gate For Best Sales 220V
Specifications
Brand Name :
WEJOIN
Model Number :
WJTY202
Certification :
CE,ISO,SGS
Place of Origin :
SHENZHEN
MOQ :
1 pair
Payment Terms :
T/T
Packaging Details :
Wooden
Housing Material :
Stainless Housing
Description

Specifications

Model

WJTY301

Cabinet dimension

1715mm(L)×315mm(W)×1020mm(H)

Stretching-out flap length

440mm

The max lane width

900mm

Cabinet material

cold rolled steel & aluminum alloy

Power supply

AC220V±15%, AC110V±15% 50/60Hz

Motor voltage

DC24V (brush motor)

Access device input voltage

dry contact

Max flow rate

30~40 people per minute

Flap opening/closing time

0.5s ~ 1s

reset time when power on

2s

protection grade

IP32

working environment

outdoors (with shelter) and indoors.

working temperature

-25°C ~ +50°C

Features&Functions

1. Operational mode can be set up through the built-in menu on the control board.

2. Audible and visual alarm in case of unauthorized access.

3. RS232 and LAN sockets are available to connect the computer.

4. The design is of integration of machinery and electronic structure, with special drive style and reliable

machinery auto locking solution, precise worm gear, and cabinet composite structure.

5. Malfunction self-detection. Which is easy for operation and maintenance.

6. Available for two-way traffic lights, which can prompt the state---pass or no-entry.

7.Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.

8. Flaps open when power off, and auto-close when power on.
