Specifications
Brand Name :
Ring PCBA ,support OEM
Model Number :
Internet Of Things PCB Assembly
Certification :
ISO9001, ISO14001, ISO13485, and IATF16949.
Place of Origin :
Shenzhen, China
MOQ :
1unit
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
50000㎡per week
Delivery Time :
10-15 working days
Packaging Details :
Vacuum packing+Cardboard packing case
type :
IoT PCB Assembly
Layer Count :
1-40 layers (standard: 2-16 layers)
Copper Thickness :
0.5-14 oz (17.5-490μm); 1-3 oz typical for IoT.
Minimum Line/Space :
2.5/2.5 mil (0.0635mm) for HDI
Material Options :
R-4 (Tg 130-170°C), Rogers RO4003C (Dk=3.38), and aluminum cores
Surface Finishes :
ENIG, OSP, HASL (lead-free), and gold plating
Operating Temperature :
-40°C to +125°C (industrial grade)
Certifications :
IPC, RoHS, UL, ISO9001, ISO14001,ISO13485,IATF16949
other service :
We can help with the procurement of electronic components on behalf of customers.
Description

Customizable IoT Device PCB Assembly - Tailored Solutions for Connected Systems

1.Product Features of IoT PCB Assembly

  • High-Frequency Signal IntegritySupports advanced wireless protocols (5G, Wi-Fi 6E, Bluetooth 5.3) with precise impedance control and low dielectric loss materials like Rogers RO4003C.
  • Ultra-Low Power ConsumptionOptimized for battery-driven devices (e.g., 8μA standby current) with power management ICs (PMICs) and sleep-mode circuit design.
  • Miniaturization & High DensityIntegrates 01005/0201 passive components, system-in-package (SiP) technology, and HDI (High-Density Interconnect) for compact layouts.
  • Flexible & Rigid-Flex DesignCombines rigid FR-4 and flexible polyimide layers for curved devices (e.g., smartwatches).
  • Thermal ManagementCopper cladding and heat spreaders reduce hotspot temperatures by 15-30% in high-power modules.
  • Environmental ResilienceUses 3D coating and RoHS-compliant materials for salt fog, UV, and extreme temperature resistance.

2.Advantages of IoT PCB Assembly

  • Rapid Time-to-MarketThree-month iteration cycles via flexible manufacturing lines (e.g., 10-minute changeover for small batches).
  • Cost-Effective ScalabilityEliminates high-volume penalties with modular production (e.g., 100-100,000 units at similar costs).
  • Signal ReliabilityHybrid stack-up and controlled impedance ensure <5% signal loss in 5G/mmWave applications.
  • Green ManufacturingENIG/OSP finishes and halogen-free materials meet EU environmental standards.
  • Multi-Domain CompatibilitySupports simultaneous operation of sensors, RF modules, and microcontrollers with EMI shielding.

3.Technical Challenges in IoT PCB Assembly

  • Precision Soldering01005 components require SPI (3D solder paste inspection) + AOI + X-ray for <5% voiding in BGA joints.
  • High-Frequency LayoutMillimeter-wave routing demands <10μm linewidths and hybrid laminates (e.g., Megtron 6 + Rogers).
  • Thermal Expansion ControlCTE mismatch between copper (17ppm/°C) and FR-4 (13ppm/°C) risks delamination in multi-layer boards.
  • EMC ComplianceRequires ground planes and differential pairs to mitigate interference between Wi-Fi and sensor signals.
  • Material SelectionBalancing dielectric constant (Dk) and cost: Rogers RO4003C (Dk=3.38) vs. standard FR-4 (Dk=4.4).

4.Application Areas of IoT PCBA

Industry Use Cases
Smart Home Smart locks, HVAC controllers, and voice assistants with <10μA standby power.
Industrial IoT Predictive maintenance sensors, PLCs, and robotics in harsh environments.
Healthcare Wearable health monitors (ECG, glucose) with medical-grade biocompatibility.
Logistics Asset trackers (GPS + LoRa) for cold chain management.
Agriculture Soil moisture sensors and drone-based crop monitoring systems.
Automotive Telematics (T-BOX) and ADAS modules with -40°C to 125°C operational range.

5.Technical Parameters of IoT PCBA

Parameter Specifications
Layer Count 1-40 layers (standard: 2-16 layers).
Copper Thickness 0.5-14 oz (17.5-490μm); 1-3 oz typical for IoT.
Minimum Line/Space 2.5/2.5 mil (0.0635mm) for HDI.
Microvia Diameter 0.08-0.15mm (stacked/buried vias).
Material Options FR-4 (Tg 130-170°C), Rogers RO4003C (Dk=3.38), and aluminum cores.
Inspection Methods AOI (automated optical inspection), X-ray (BGA void analysis), and ICT (in-circuit test).
Surface Finishes ENIG, OSP, HASL (lead-free), and gold plating.
Thermal Resistance <10°C/W with copper cladding (0.1mm thickness).
RoHS Compliance Halogen-free, lead-free, and REACH-certified materials.
Operating Temperature -40°C to +125°C (industrial grade).

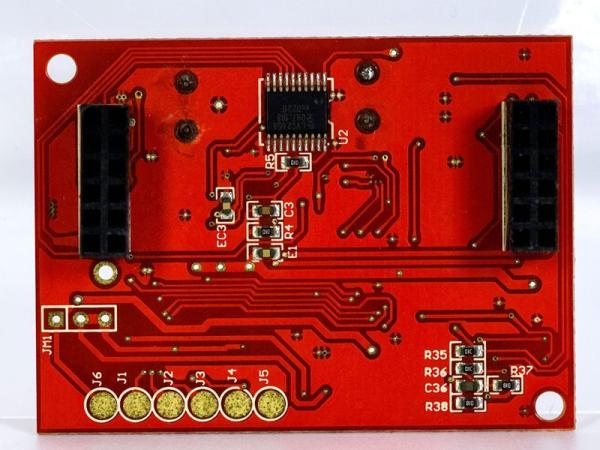

6.This is a custom-made stage audio mainboard PCBA for your reference

FR-4  IoT Device PCB Assembly Services 1-3 Oz Typical For IoT Custom Solutions For Smart GadgetsFR-4  IoT Device PCB Assembly Services 1-3 Oz Typical For IoT Custom Solutions For Smart GadgetsFR-4  IoT Device PCB Assembly Services 1-3 Oz Typical For IoT Custom Solutions For Smart Gadgets
