Specifications
Brand Name :
Ring PCB,support OEM& EMS
Model Number :
Printed circuit board Electronic Manufacturing Services
Certification :
ISO9001, ISO14001, ISO13485, and IATF16949.
Place of Origin :
Shenzhen, China
MOQ :
1unit
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
50000㎡per week
Delivery Time :
10-15 working days
Packaging Details :
Vacuum packing+Cardboard packing case
Surface Finish :
ENIG (Electroless Nickel Immersion Gold), HASL (Hot - Air Solder Leveling), etc.
Operating Temperature :
-40°C - 85°C
Number of layers :
from 4 - up to 48 layers
Certifications :
IPC, RoHS, UL, ISO9001, ISO14001,ISO13485,IATF16949
Testing and Inspection :
Automated Optical Inspection (AOI), X-ray inspection
Assembly Accuracy :
Tolerance within ±0.05 - 0.1mm for component placement
other service :
We can help with the procurement of electronic components on behalf of customers.
Cost Efficiency :
Competitive Pricing and Cost Reduction Strategies
Environmental Responsibility :
Sustainable Practices and Green Initiatives
Customization :
Tailored Solutions to Meet Customer's Specific Requirements
Manufacturing Capabilities :
PCB Assembly, Box Build Assembly, Cable and Wire Harness Assembly, Testing and Inspection
Quick Turnaround Time :
Rapid Prototyping and Fast Production Lead Times
Flexibility :
Ability to Handle Small to Large Production Volumes
Description

6-Layer Multilayer PCB Manufacturing | High-Density SSD & Storage PCB Solutions (


At Ring PCB, we are an experienced leader in Multilayer PCB Manufacturing with over 17 years in the PCB and PCBA industry. Our expertise covers PCB fabrication, SMT assembly, OEM/EMS support, and turnkey PCBA services.

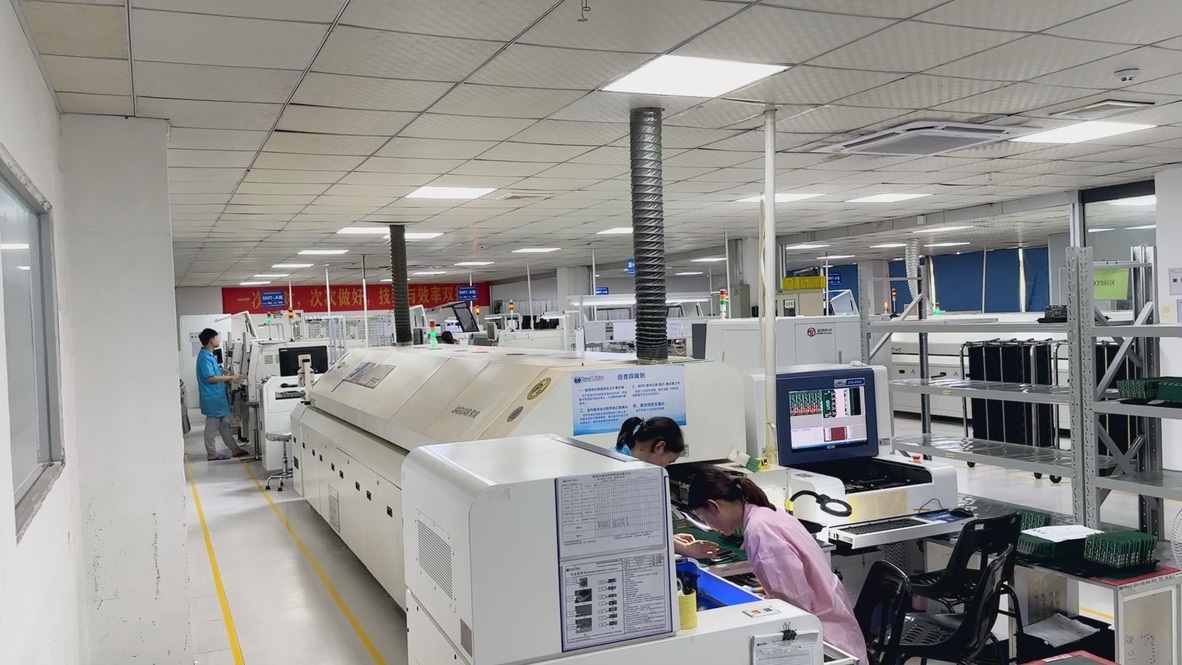

We operate two modern facilities in Shenzhen and Zhuhai, China, totaling more than 5,000㎡ and staffed by 500 skilled employees. With advanced equipment and strict process control, we can deliver rapid prototypes in 3 days and mass production in 7 days. All our PCBs comply with ISO9001, ISO14001, ISO13485, and IATF16949, ensuring consistent quality and global reliability.

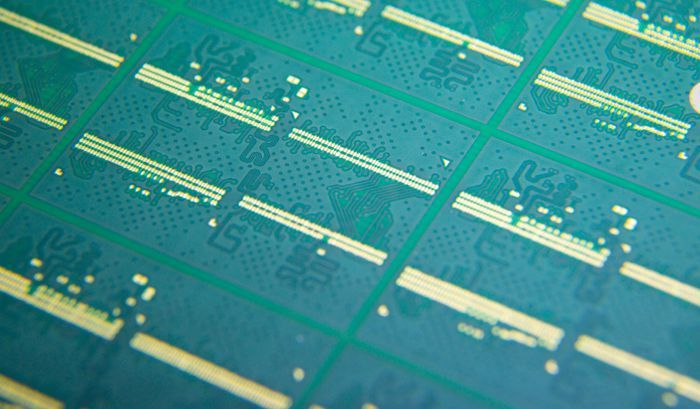

Customer Success Case: 6-Layer PCB for SSD Application

Recently, a customer from the storage device industry required a 6-layer PCB solution for solid-state drives (SSD). The project demanded fine lines, advanced plating, and high stability to support the performance of high-speed data storage products.

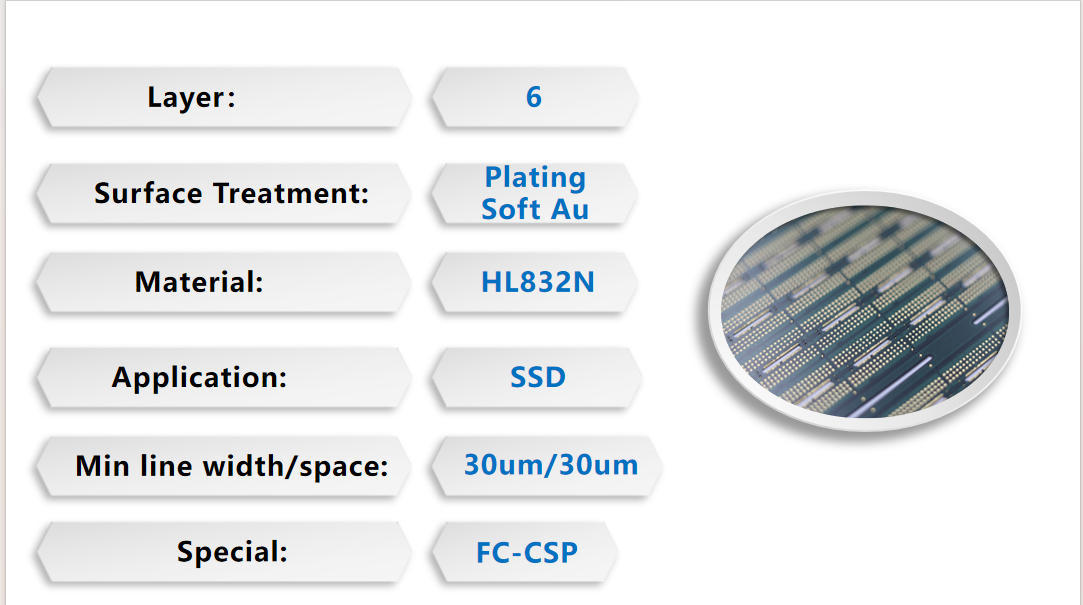

Project Specifications:

Specification Details
Layer Count 6 layers
Surface Treatment Plating Soft Au
Material HL832N
Application SSD (Solid-State Drive)
Min. Line Width/Space 30 μm / 30 μm
Special Feature FC-CSP (Flip Chip – Chip Scale Package)

This case highlighted our ability to manufacture high-density, high-performance multilayer PCBs for demanding applications. The client praised our technical expertise, precision process, and fast turnaround time, which accelerated their SSD product launch.


Our PCB Manufacturing Capabilities

Parameter Capability/Range
Layer Count 2 – 40+ layers
Board Thickness 0.2 mm – 6.0 mm
Copper Thickness 0.5 oz – 6 oz
Min. Line Width/Spacing 3 mil / 3 mil (up to 30 μm for HDI)
Min. Drilled Hole Size 0.1 mm (laser drilling)
Surface Finish Options HASL, ENIG, Immersion Silver, OSP, Hard/Soft Gold
Materials FR4, High-Tg, Rogers, Polyimide, Aluminum, HL832N
Solder Mask Colors Green, Blue, Red, Black, White, Yellow
Certifications ISO9001, ISO14001, ISO13485, IATF16949
Lead Time Prototype: 3 days, Mass production: 7 days



Why Choose Ring PCB?

  • Expert in Multilayer & Double Layer PCB Manufacturing

  • Comprehensive services: fabrication, assembly, testing, box-build

  • Rapid prototyping and mass production with short lead times

  • Export experience in 50+ countries worldwide

  • OEM & EMS support plus full-turnkey PCBA solutions

Advanced Multilayer PCB For SSD Precision 6-Layer PCB Fabrication & Assembly With Factory Price

Advanced Multilayer PCB For SSD Precision 6-Layer PCB Fabrication & Assembly With Factory Price

Advanced Multilayer PCB For SSD Precision 6-Layer PCB Fabrication & Assembly With Factory Price

Partner With Us Today

With strong expertise in Multilayer PCB Manufacturing and special PCB fabrication, Ring PCB is your reliable partner for high-quality and cost-effective PCB solutions. From medical devices to industrial systems, we support your projects with end-to-end PCB and PCBA services.
