Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
Specifications
Brand Name :
Turboo
Model Number :
LA3218
Certification :
CE ISO9001
Place of Origin :
Guangdong China(Mainland)
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7 days
Packaging Details :
Wooden Case Package
Product Size :
600*130*980mm
product name :
LA3218
Material :
Body 3.0mm Aluminium Alloy +Top Cover 8.0mm Aluminium Alloy
Pass Width :
600-900mm
Pass Rate :
35 persons/minute
Movement :
Servo speed gate
Sensors :
6 Pairs
Driver :
Servo brushless Motor 40:1 100W
Controller :
Servo Controller
Description

Swing Speed Gate Turnstiles Small body Supermarket Gym Pedestrian Barrier Gate

LA3218 swing speed gate
Speed gate is not only an entrance control management solution but also a vision image of company or application sites. Thus, it makes senses to color the turnstiles and attractive and comfortable for visitors at first glance. Aluminum alloy is better for powder coated and more light compared to stainless steel. Furthermore, this model of speed gates could be detached and assembling like block building. In this way, more products could be loaded in a container to save shipping costs.
Meanwhile, it is much easier for installation,. Engineers could assemble in sites and install for commisioning. Indication Led lights flash to attract eyesights.
LA3218 swing speed gate
1,Reasonable and reliable design, low noise, smooth operation and long service life；
2,With function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
3,With functions of anti-tail, anti-reverse pass and so on;
4,Card can be set "with memory" or "without memory" functions;
5,With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
6,With infrared anti-clip function (anti-clip when gate is open or running);
7,Compatible with IC, ID card, scanning and face recognition,etc.
8,Two modes of operation are available: open or closed.
9,Various working modes are available, including two-way card reading and one-way card reading,etc

LA3218 swing speed gate

Model Number: LA3218
Product Size: 600*130*980mm
Pass Width: 600-900mm
Thickness: Body 3.0mm +Top Cover 8.0mm
Material: aluminum alloy
Infrared Sensor: 6 pairs
Pass rate: 35 p/m
Power Supply: 24V 500W
Operational Voltage: 24V(DC)
Working Temperature: -25 to +70 ℃

Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute

LA3218 swing speed gate

Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute

Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute

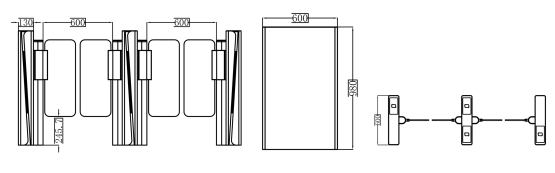

LA3218 swing speed gate Dimensional drawing

Supermarket and Gym Pedestrian Barrier Gate Small Body Pass Rate 35 persons/minute
