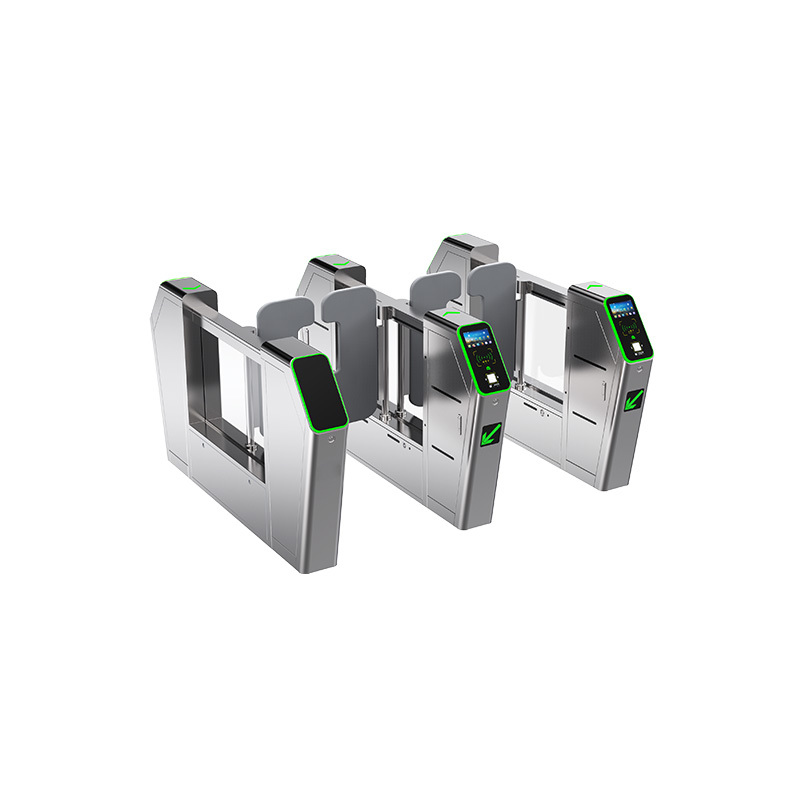

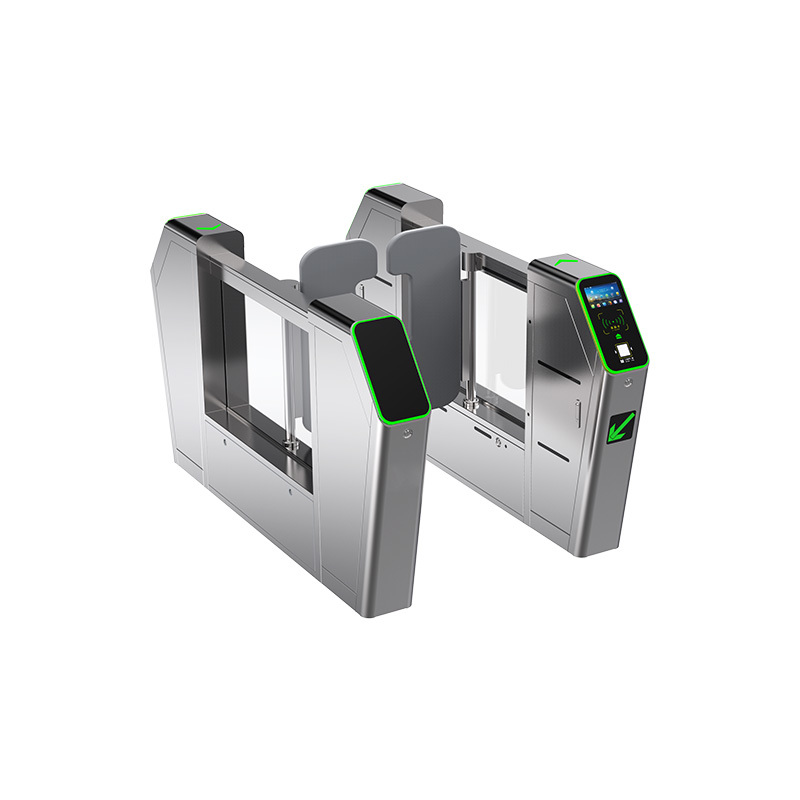

High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
Specifications
Brand Name :
Turboo
Model Number :
T3630
Certification :
CE, ISO9001,FCC,RoHS,etc.
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden case package
Size :
2100*220*1150mm
Material :
2.0mm SUS304
Pass Width :
600-900mm
Sensor :
24 Pairs
Driver :
Servo brushless Direct Drive 200W
Controller :
Servo Control+ Sensor Logic Control
Power :
220W
Description
High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
Functions & Features
  • Reasonable and reliable design with low noise, smooth operation and long service life
  • Anti-tail and anti-reverse pass functions for enhanced security
  • Card can be set with "memory" or "without memory" functions
  • Automatic reset function - gates automatically restore to locked state if not passed within set time
  • Infrared anti-clip function (protection when gate is open or running)
  • Compatible with IC, ID card, scanning and face recognition systems
  • Two operation modes available: open or closed
  • Multiple working modes including two-way card reading and one-way card reading
Size Drawing
High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
Technical Specifications
Parameter Specification
Size 2100 × 220 × 1150 (mm)
Chassis Top cover: 2mm SUS304
Housing: 2mm SUS304
Filling Panel: 10mm transparent acrylic
Movement Mechanism: Servo direct driver swing gate movement
Door panel: PU arm
Pass Lane: 600-900mm
Electronic Control Control board: Servo standard board + driver board + logic board
Motor: Servo direct drive brushless motor 200W
IR sensor: 24 pairs
Air switch: 2P
Power Supply 48V 450W
Accessories Connection cable: 5m 2×1.0m² RVV
Network cable: 5m with crystal tips on both ends
Package Pearl cotton: Foam liner
Cardboard box: 2160 × 280 × 1210

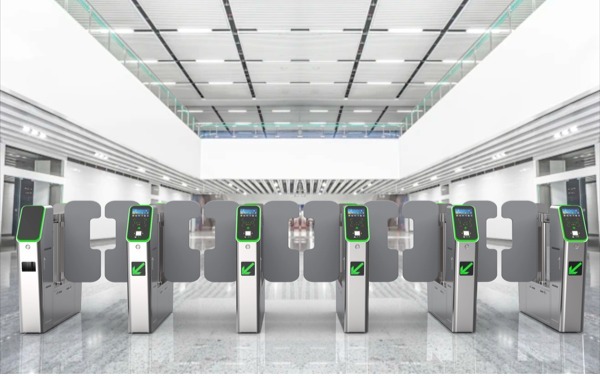

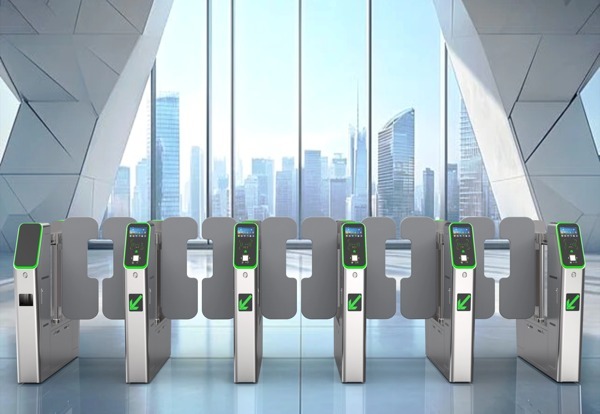

Case Examples
High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
High Security Subway Metro Entrance Ticket Checking Turnstile Gate T3630
