Smart Access Control Pedestrain Aluminum alloy Apex LA3220
Smart Access Control Pedestrain Aluminum alloy Apex LA3220
Smart Access Control Pedestrain Aluminum alloy Apex LA3220
Smart Access Control Pedestrain Aluminum alloy Apex LA3220
Specifications
Brand Name :
Turboo
Model Number :
LA3220
Certification :
CE, ISO9001,FCC,RoHS,etc.
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden case package
Size :
1500*130*980mm
Material :
2.0mm Aluminium Alloy
Pass Width :
600-900mm
Sensor :
Safety Light Curtain/Bar 48 Points
Driver :
Servo brushless Motor 100W
Controller :
Servo Board
Power :
120W
Description
Smart Access Control Pedestrian Aluminum Alloy Apex LA3220
Product Overview

The Smart Access Control Pedestrian Aluminum Alloy Apex LA3220 is engineered for reliable security access control with advanced features and durable construction.

Functions & Features
  • Reasonable and reliable design with low noise, smooth operation and long service life
  • Anti-tail and anti-reverse pass functions for enhanced security
  • Card can be set with "memory" or "without memory" functions
  • Automatic reset function - gates automatically restore to locked state if not passed within set time
  • Infrared anti-clip function (protection when gate is open or running)
  • Compatible with IC, ID card, scanning and face recognition systems
  • Two operation modes available: open or closed
  • Multiple working modes including two-way card reading and one-way card reading
Size Drawing
Smart Access Control Pedestrain Aluminum alloy Apex LA3220
Technical Specifications
Parameter Specification
Size 2100 × 220 × 1150 (mm)
Chassis Housing: 2mm Aluminum alloy
Movement Mechanism: Servo Speed Door
Door panel: 10mm Transparent PC
Pass Lane: 600-900mm
Electronic Control Control board: Servo control board
Motor: Brushless servo 40:1 100W
IR sensor: Safety Light curtain/Bar 48 points
Air switch: 2P
Power Supply 24V 500W / 12V 3A
Accessories Connection cable: 5m 2×1.0m² RVV
Network cable: 5m Both ends with crystal tips
Package Pearl cotton: Fully encapsulated protective cotton
Cardboard box: 360×200×1460

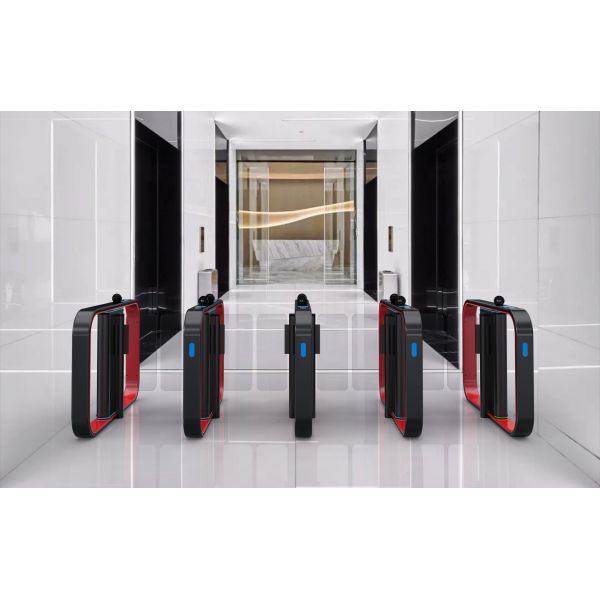

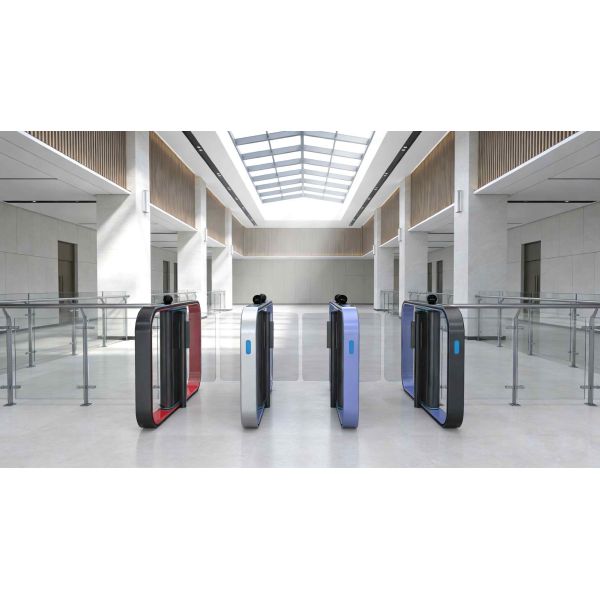

Case Examples
