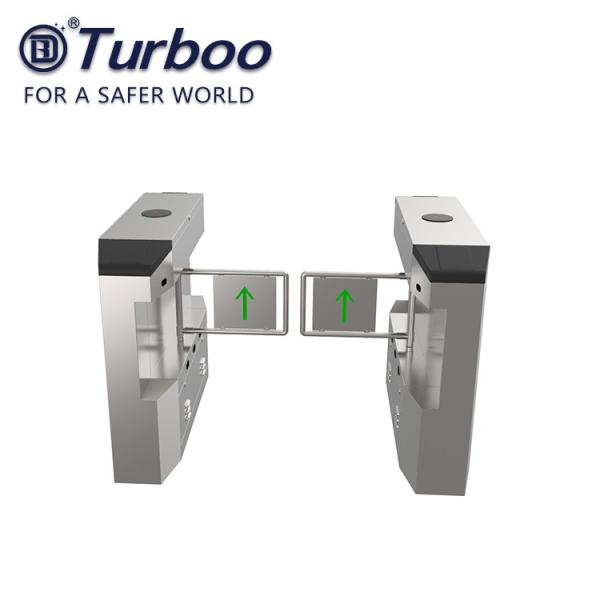

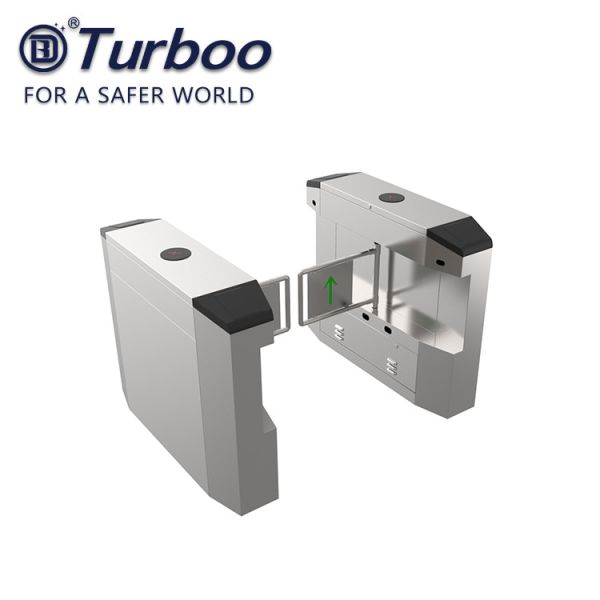

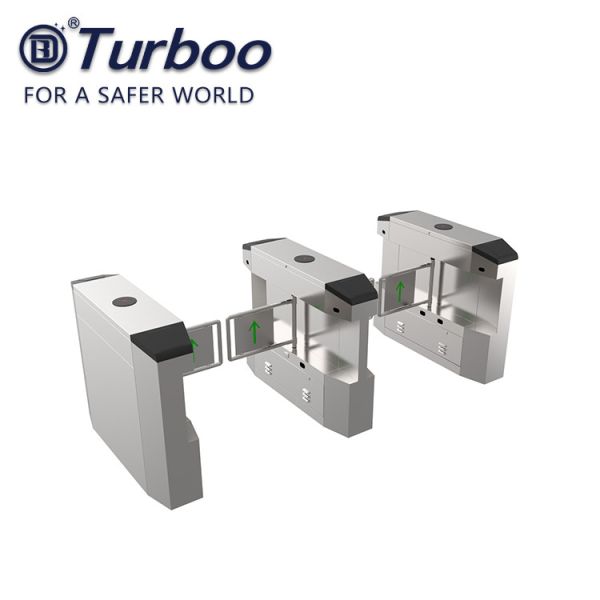

304 Stainless Steel Security Swing Gate D343
304 Stainless Steel Security Swing Gate D343
304 Stainless Steel Security Swing Gate D343
304 Stainless Steel Security Swing Gate D343
304 Stainless Steel Security Swing Gate D343
304 Stainless Steel Security Swing Gate D343
304 Stainless Steel Security Swing Gate D343
304 Stainless Steel Security Swing Gate D343
Specifications
Brand Name :
Turboo
Model Number :
D343
Certification :
CE, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 PC
Packaging Details :
Wooden case package
Delivery Time :
7-15 working days
Payment Terms :
T/T, L/C
Supply Ability :
1000 units per month
Price :
Negotiable
Description
Security passage smart bike pass turnstile 304 stainless steel swing barrier gate
Product Description
Technical Data Unit D343
Passage width mm 600-900
Throughput rate p/m 35
Power supply V(ac) 24V 150W
Operational voltage V(dc) 24
Mechanism FD Brushless integrated swing gate
Frequency hz 50-60
Prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1200x280x980
Net weight including bars Kg single movement 35kg/ dual 42kg

Optional devices 1.Fingerprint reader 2.Face recognition
3.Card collector 4.Card reader
5.2D scanner 6.Palmprint reader

Functions

Being able to program running status by the small keyboard in the main board

Preventing pedestrians from being nipped and from hurt

Light and sound alarm funtion including the illegal in and the tail

Arms are automatically locked untill opening signal is received.
Arms synchronization (adjustable)
Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable

Automatically open the gate when power off and automatically close when power on
Several card readers are attachable, and relay singals can be received.
One direction or bi-direction are optional

It can be directly controlled and managed by remote control.
