Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
Specifications
Supply Ability :
1000 units per month
Size :
1500*130*980mm
Model Number :
B303
MOQ :
1 PC
Delivery Time :
7-15 working days
Power :
24V 500W/12V 3A
Payment Terms :
L/C, T/T
Material :
1.5mm No.4 polish stainless steel
Control board :
Servo driven Combo Board
Price :
Negotiation
Door panel :
10mm transparent acrylic
Mechanism :
Servo Horizontal Swing Gate
Certification :
CE, ISO9001,FCC,RoHS,etc.
Place of Origin :
China
Packaging Details :
Wooden case package
Brand Name :
Turboo
Description
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
The B303 swing gate is constructed from 1.5 mm-thick SUS304 stainless steel with No.4 finish. Suitable for multiple application scenarios including government offices and commercial buildings, it delivers robust visitor management and attendance control. For train stations, airports and subways, it effectively prevents fare evasion and improves pedestrian-passage efficiency.
Key Features & Functions
  • Reasonable and reliable design, low noise, smooth operation and long service life
  • Anti-tail and anti-reverse pass functionality
  • Card memory settings: configurable "with memory" or "without memory" functions
  • Automatic reset function - gates return to locked state after set time if not passed
  • Infrared anti-clip protection during gate operation
  • Compatible with IC, ID cards, scanning and face recognition systems
  • Two operational modes: open or closed
  • Multiple working modes including two-way and one-way card reading

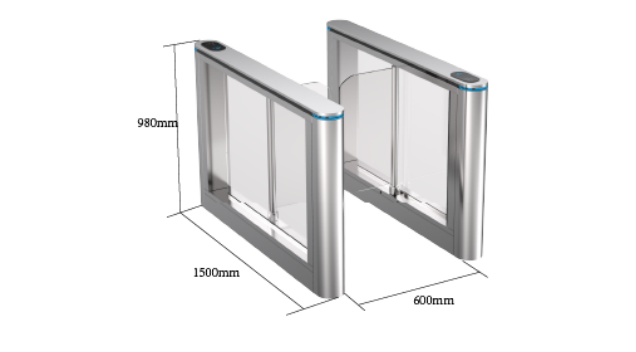

Product Dimensions
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
Technical Specifications
Size 1500×130×980 (mm)
Material Top cover: 1.5mm No.4 polish stainless steel
Housing: 1.5mm No.4 polish stainless steel
Filling panel: 8mm transparent acrylic
Door Panel 10mm transparent acrylic
Mechanism Servo Horizontal Swing Gate
Pass Lane 600-900mm
Control Board Servo driven Combo Board
Infrared Sensor 12 pairs
Motor Brushless servo 40:1 100W
Air Switch 2P
Power Supply 24V 500W / 12V 3A
Package Pearl cotton foam liner
Cardboard box: 1560*260*1040

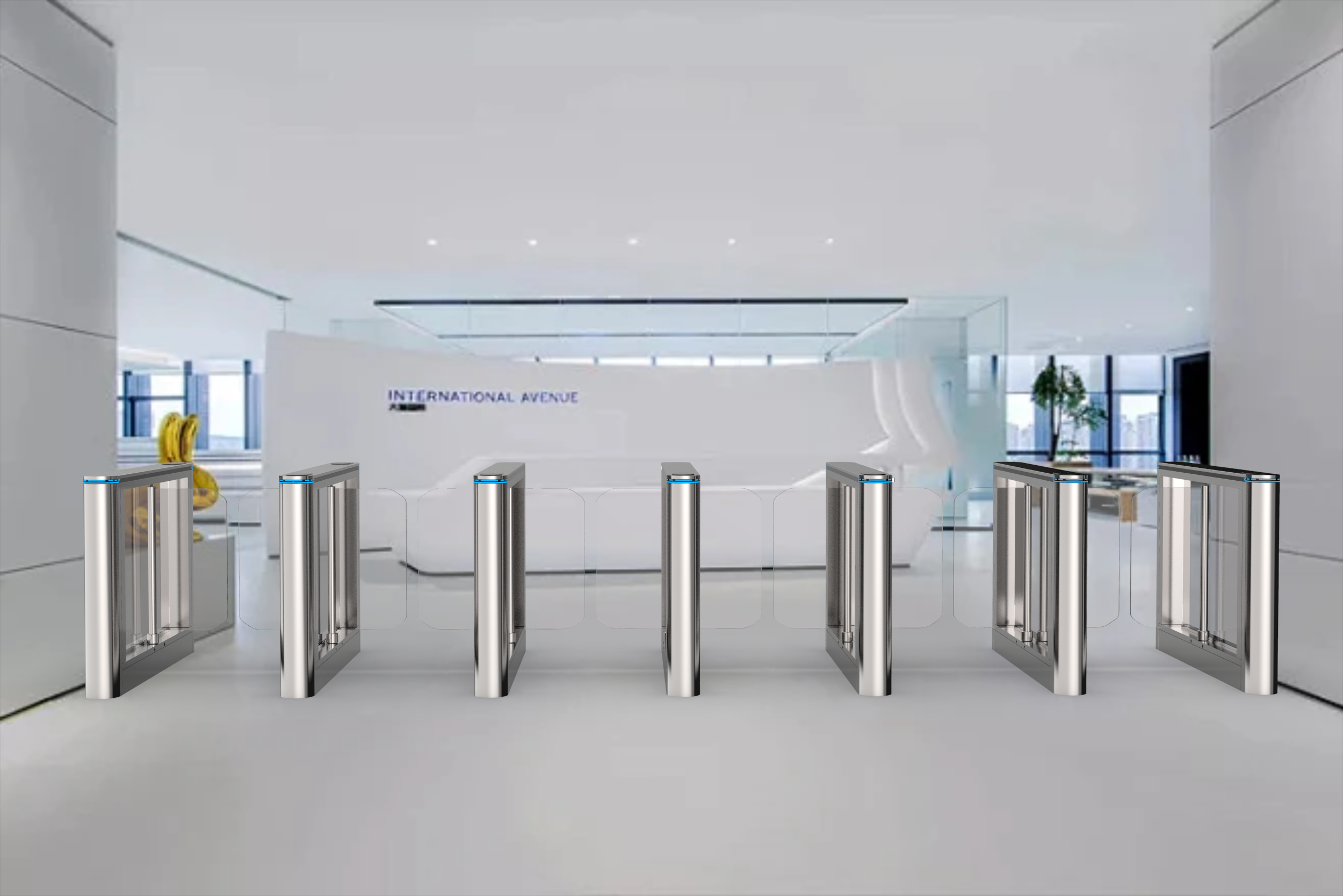

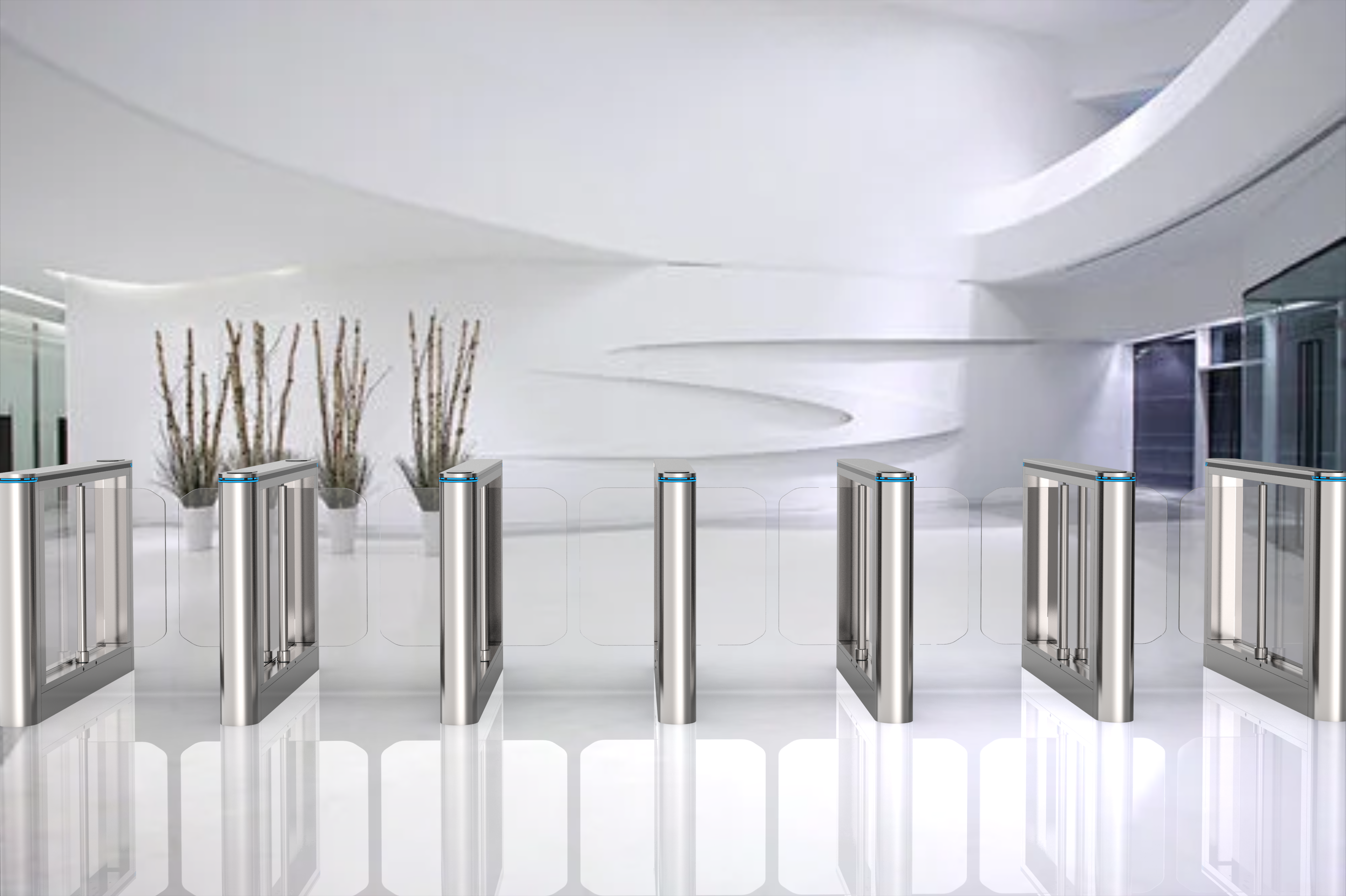

Installation Examples
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
Turboo High-end Office Buildings Fast Pass with Automatically Lock Alert System B303
