Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Specifications
MOQ :
1 PC
Delivery Time :
7-15 working days
Power :
24V 500W
Certification :
CE, ISO9001,FCC,RoHS,etc.
Model Number :
LB623
Payment Terms :
L/C, T/T
Material :
SUS 304+ Tempered glass+ Marble
Control board :
Servo Controller+ Driver Board
Price :
Negotiation
Pass width :
550mm
Supply Ability :
1000 units per month
Size :
1500*140*1000mm
Brand Name :
Turboo
Mechanism :
Servo sliding gate
Place of Origin :
China
Packaging Details :
Wooden case package
Description
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
The LB623 represents the high-end version of Turboo's LB series sliding gates. This advanced security system features dual sliding doors that open to both left and right directions, providing silent operation and anti-pinch safety protection.
Key Features & Functions
  • Engineered for low noise operation with smooth, reliable performance and extended service life
  • Advanced anti-tailgating and anti-reverse pass security functions
  • Configurable card memory settings (with or without memory function)
  • Automatic reset feature - gates return to locked position after set time period
  • Infrared anti-pinch protection during gate operation
  • Compatible with IC/ID cards, barcode scanning, and facial recognition systems
  • Dual operation modes: open or closed configurations
  • Multiple working modes including bidirectional and unidirectional card reading

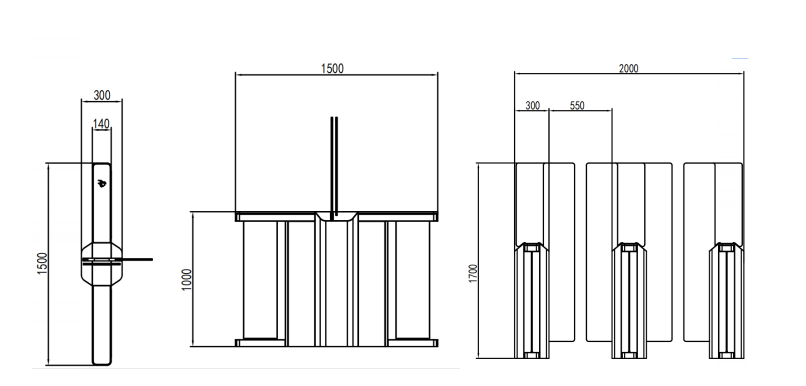

Product Dimensions
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
Technical Specifications
Size 15000 × 140 × 1000 (mm)
Material SUS 304 with snowflake sand, white marble, tempered glass, solar panel
Thickness Housing 1.5mm + Top cover 12mm
Bar Material δ=10mm Tempered Glass filling panel
Movement Servo sliding gate
IR Sensor 12 Pairs
Pass Lane 550mm
Electronic Control Control board: Servo Controller + Driver Board
Motor: LS brushless servo 40:1 100W
Power Supply 24V 500W

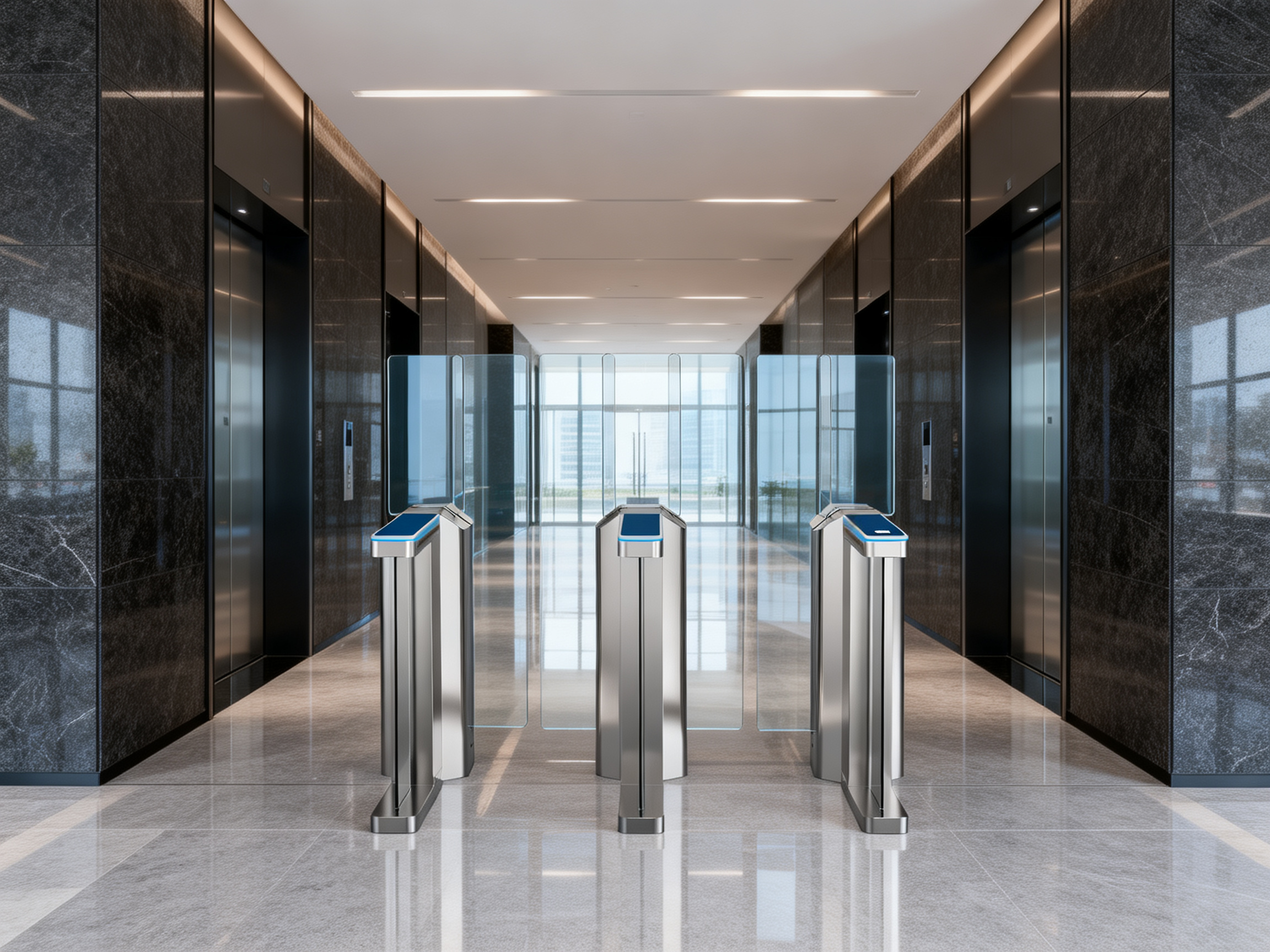

Installation Examples
Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623 Turboo SUS304 High Baffle Barrier Sliding Gate High-Security Access Control LB623
