High Speed Turnstile Gate Security Systems Built In Unique Fire Control Interface
High Speed Turnstile Gate Security Systems Built In Unique Fire Control Interface
High Speed Turnstile Gate Security Systems Built In Unique Fire Control Interface
High Speed Turnstile Gate Security Systems Built In Unique Fire Control Interface
High Speed Turnstile Gate Security Systems Built In Unique Fire Control Interface
High Speed Turnstile Gate Security Systems Built In Unique Fire Control Interface
Specifications
Brand Name :
Turboo
Model Number :
G535
Certification :
CE, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 unit
Payment Terms :
T/T, L/C
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden case package
Price :
Negotiable
Type :
Full height turnstile
Pass width :
≤700mm
Material :
304 stainless steel
Reliability :
3 million ,no fault for the machine core
Environment temperature :
Minus 25 degree to 70 degree
Transit speed :
30 persons / min
Unlock time :
0.2s
Input :
220V ,50Hz
Net weight :
210kg
Package :
Wooden case package
Description

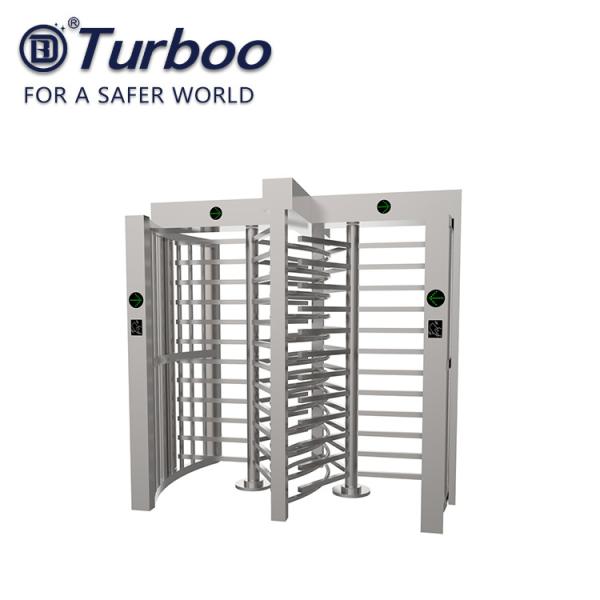

Full Height Turnstile With CE Mark for High Speed Barrier Gate

Features and Benefits

1. Rainproof housing, anti-corrosion coating iron or #304 stainless steel

2. CNC stamping and laser drilling, presenting a novel and elegant appearance 3. Innovative and unique mounting surface ensures simple and convenient installation for system integrators;

4. Direction can be set as single-direction or bi-direction

5. Direction indicator

6. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)

7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically;

8. With backup battery, complying with fire safety requirements.

9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

10. Dual-bearing device, keeping the gate in balance when there is external force

OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

MATERIALS

• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.

Technical Data Unit G535
Passage width mm <650
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1500X1630X2320
Net weight including bars Kg 210

High Speed Turnstile Gate Security Systems Built In Unique Fire Control InterfaceHigh Speed Turnstile Gate Security Systems Built In Unique Fire Control InterfaceHigh Speed Turnstile Gate Security Systems Built In Unique Fire Control InterfaceHigh Speed Turnstile Gate Security Systems Built In Unique Fire Control Interface
