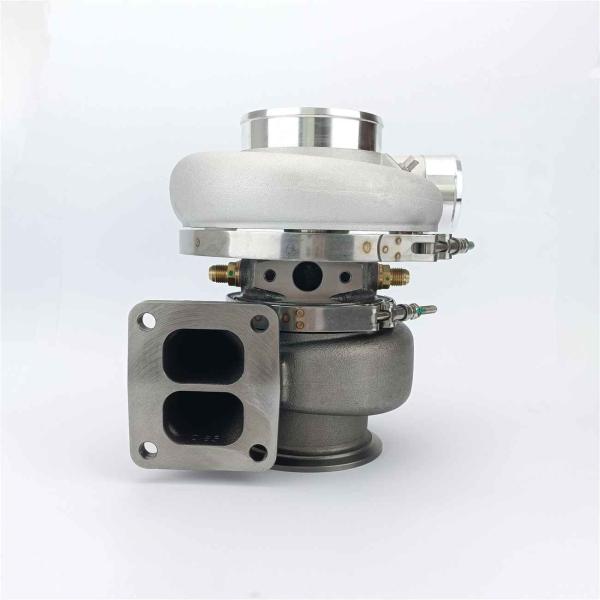

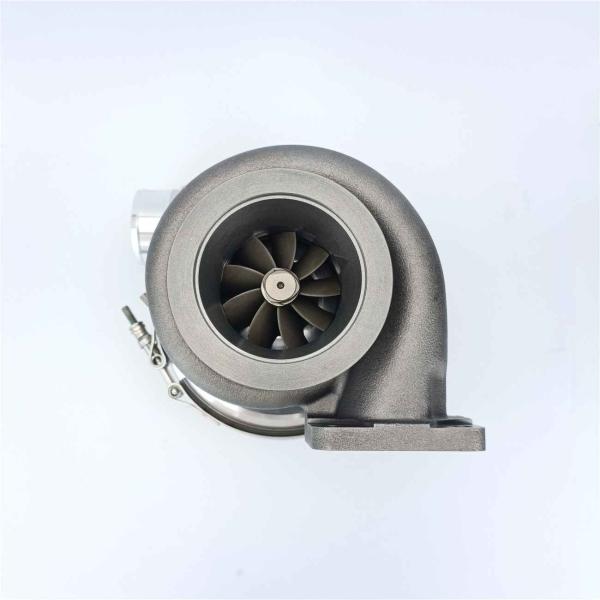

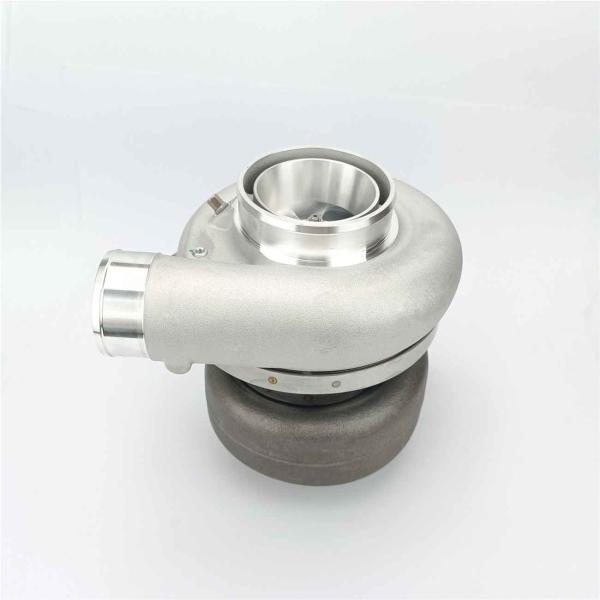

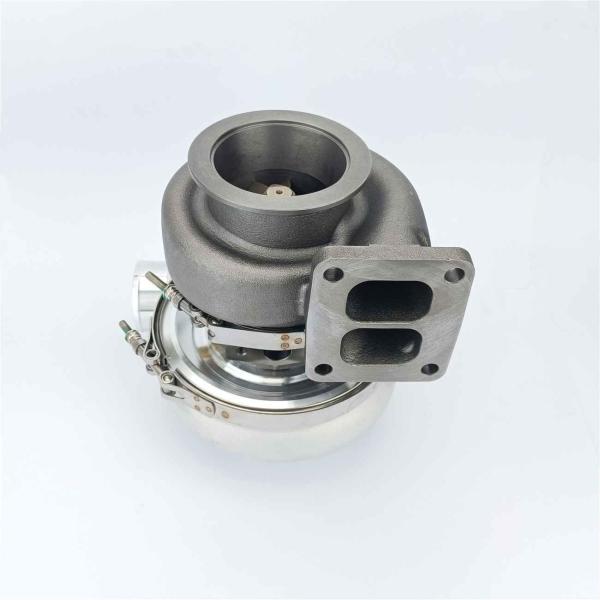

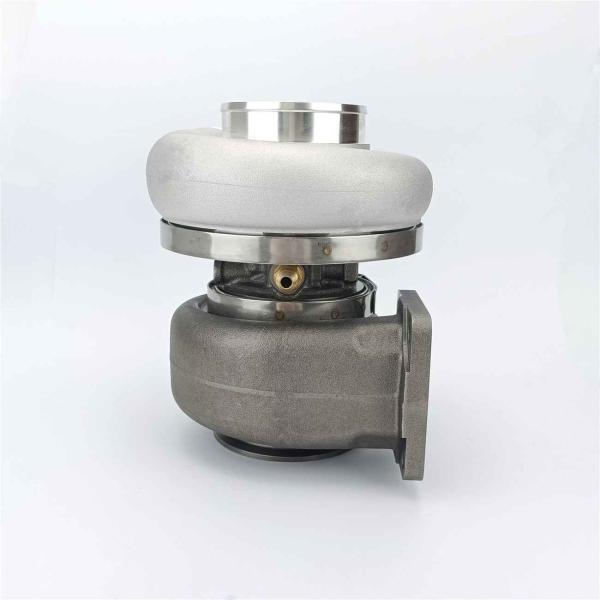

MS-TECH Turbo G40-900 Turbocharger 860777-5003S 757707-0027 757707-0028

MODEL:

G40-900

Part Numbers:

860777-5003S

Fit Turbos:

757707-0027 757707-0028 757707-0029 757707-0030 757707-0032 757707-0033 757707-0034 757707-0035

Material of turbine wheel: Inconel 713C
Perfect balance finished.you can use it directly.

G40-900	Compressor				Turbine
	Inducer	Exducer	Trim	A/R	Inducer	Exducer	Trim
HP: 500-900 Disp: 2.0L-6.0L	62mm	88mm	51	0.80	77mm	70mm	84
Supercore	PN
Standard Rotation	860777-5003S
Turbine Kits: G40	PN		A/R	Inlet	Outlet	Wastegate	Divided
Free Float Turbine Housing	757707-0027		0.85	V-Band	V-Band	Free Float	N
	757707-0028		0.95	V-Band	V-Band	Free Float	N
	757707-0029		1.06	V-Band	V-Band	Free Float	N
	757707-0030		1.19	V-Band	V-Band	Free Float	N
	757707-0032		0.85	T4	V-Band	Free Float	Y
	757707-0033		0.95	T4	V-Band	Free Float	Y
	757707-0034		1.06	T4	V-Band	Free Float	Y
	757707-0035		1.19	T4	V-Band	Free Float	Y

MS-TECH now have more than 1000 shaft wheel available, we are continually expanding many new replacement parts every month, More shaft wheel are currently in development with many popular parts. At the same time, we can manufacture most shaft wheel into shaft &wheel(Rotors) , If you want to know more details, Please feel free to contact us.

Our shaft wheel are widely used in Garrett, Holset,KKK,Schwitzer,Borwarger, Mitsubishi, IHI,Toyota and other turbochargers.

GT12,GT15,GT17,GT20,GT22,GT25,GT30,GT32,GT35,GT37,GT42,GT45,TA34,TA45,TA51,TB22,TB25,TB28,TB31,TB34,TB71,TBP4-180,TBP4-210, TBP4-270, T04B,T04E

HX30,HX35,HX40,HX40W,HX50,HX55,HT3B,H1C,H1E,H2C,H2D...

S200, S200G,S300,S400,S410,S2A,S3A,...

K03, K04,K14,K16,K24,K27,K27-B,K27-W,K27-2,TK27, K28, K29, K31, K36, KP35, KP39

RHB31, RHF5,RHB5,RHB6,RHC6,RHC9

TD04, TD05,TD08,TF035HM,TF035VGK

CT9, CT12,CT12B,CT20,CT26

OEM as followed:
435922-0001, 435737-0006, 435243-0001, 435243-0002, 435922-0004, 435737-0015, 451311-0014, 717360-5005, 717360-5005, 451310-0003, 451311-0002, 446905-0006, 446905-0004, 446905-0004, 446905-0001, 446905-0007, 446905-0010, 446249-0003, 441064-0001, 441064-0002, 433290-0042, 433158-0001, 433290-0004, 433298-0032, 434713-0007, 433298-0004, 433165-0004, 433165-0001, 433165-0007, 434713-0001, 434713-0005, 433298-0001, 433298-0030, 707669-0005, 707669-0010, 434883-0017, 434533-0002, 433257-0010, 434714-0009, 434533-0006, 434533-0012, 434533-0017,
704580-0003, 434715-0027, 436504-0004, 434533-0007, 434533-0009, 434533-0018, 717904-0001, 704580-0001, 434883-0001, 434883-0003, 434883-0017, 434882-0004, 434882-0072, 434882 0005, 435922-0016, 434717-0028, 434281-0018, 449587-0001, 740244-0001, 435368-0003, 740244-0001,
5303-120-5008, 5303-120-5023, 5303-120-5029, 5303-120-5015, 5303-120-5001, 5304-120-5008, 5304-120-5010, 5314-120-2101, 5314-120-2111, 5314-120-5009, 5314-120-2104,5314-120-2105,5314-120-2114,5314-120-2115,5314-120-5002,5314-120-5006, 5316-120-2101, 5316-120-2103, 5316-120-5015, 5316-120-5028, 5316-120-2106, 5316-120-2102, 5316-120-2113, 5316-120-5000, 5316-120-2113, 5316-120-5000, 5324-120-2103, 5327-120-2111, 5327-120-2109, 5327-120-2110, 5327-120-2113, 5327-120-2117, 5327-120-5005, 5327-120-5016, 5327-120-5017, 5336-120-2103, 5435-120-5000, 5435-120-5004, 5435-120-5006, 5435-120-5010,
314653, 313819, 166621, 166612, 167729, 314629, 316937, 15273, 55791, 158396, 184409, 3519336, 3522879, 3535359, 3522880, 3504344, 3504344, 3522232, 3522773, 353980, 3595129, 3595129, 3528251, 3534287, 3521033, 3521034, 3524031, 3522075, 3590433, 314653, 171231
49135-30100, 49177-30130, 49177-30300, 49189-30100, 49183-30100, 49179-30130
49179-30120, 17201-54060, 17201-54030, 17201-17010, 17201-17040, 650551-3120, 650551-3201,
5439-120-5017, 740244-0001, 3590433, 773720-0001, 407452-0004, 407452-0050, 171231, 442208-0001, 5303-120-5016 755046, 764609, 436379-0003, 17201-33010,49135-07100, 445812-0002, 5336-120-5005,
52986,55789,56180,56426,57175,61685,61986,61987,62034,62118,62687,63382,65520
3500433,3502499,3502817,3503023,3503402,3503403,3503642,3503798,3504106,3504344,3504346,

MS-TECH manufacture and sell kinds of turbochargers and spare parts. For example, turbochargers,wheel and shaft (rotors), CHRA, compressor wheel ,turbine wheel castings, turbo bearing, turbine housings, compressor housings, bearing housing, back plate, repair kits, and so on.
We also can produce according to the part number or according to your samples or drawings.
