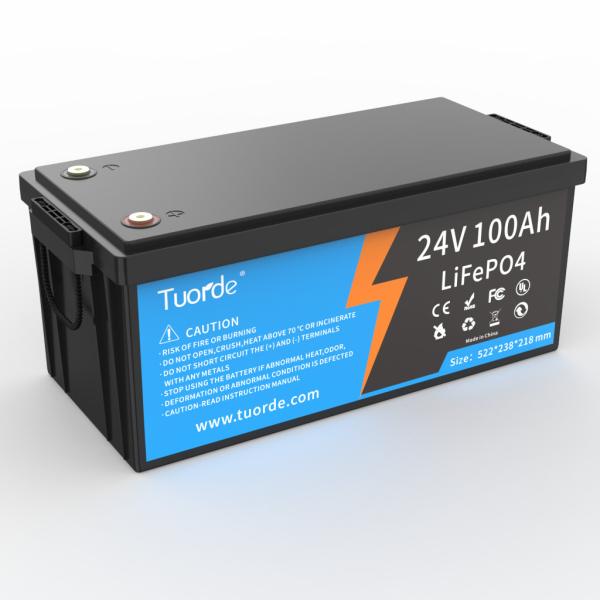

AGV Custom Lithium Battery Packs 25.6V 24V 100Ah High Performance 18650 Cell
AGV Custom Lithium Battery Packs 25.6V 24V 100Ah High Performance 18650 Cell
Specifications
Brand Name :
Tuorde
Model Number :
TRD24100
Certification :
CE/UN38.3
Place of Origin :
China
Charging Temperature :
0°C to 45°C
Size :
522 x 238 x218mm
Warranty :
5 years
Weight :
25 Kg
Energy :
2560Wh
Description

25.6V 24V 100Ah Lithium Battery AGV Lithium Battery Pack

Shenzhen Tuorde Energy Co., Ltd. has passed ISO9001, ISO14001, CE/UN38.3 and other system certification, with a strong R&D team, advanced automation equipment, continuous independent innovation spirit and strong battery module development team, the company has become an outstanding lithium battery supplier of the industry's leading customized solutions and overall power supply solutions for lithium battery packs.

Model No. TRD24100
Nominal Voltage 25.6V
Nominal Capact 100Ah
Energy 2560Wh
Module Parallel or senies(for option) Up to 4packs
Bluetooth function For option
Dimension (Lx Wx H) 522 x 238 x218mm
Approx.Weight 55.1lbs(25Kg)
Terminal Type M8 terminal
Case Material ABS+PC
Endlosure Protection IP65
Recommended Charge Current 20A
Maximum Charge Current 50A
Maximum Continuous Discharge Curent 100 A
Peak Discharge Curent 300A(1s)
Discharge Temperature -4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature -4~113 F (0~45 ℃)
Storage Temperature 23~95F(-5~35℃)
