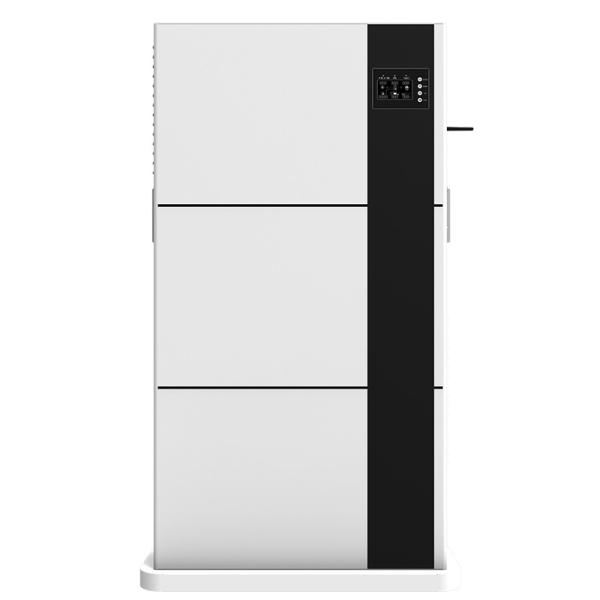

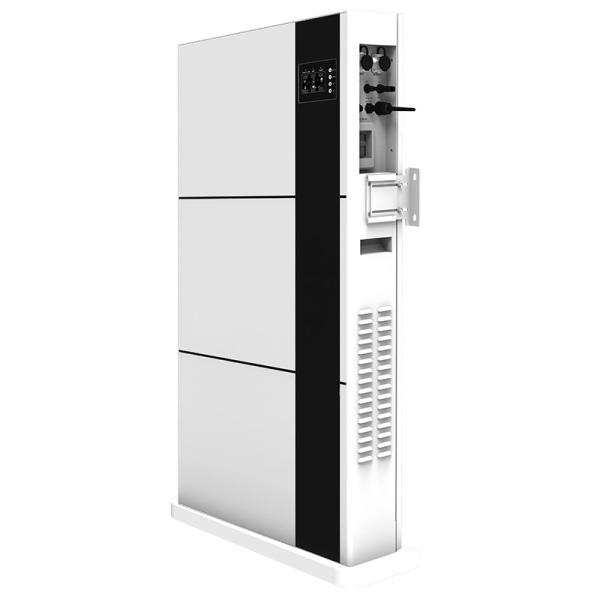

10.24kWh 10KWh All In One Lithium Battery energy storage system
10.24kWh 10KWh All In One Lithium Battery energy storage system
10.24kWh 10KWh All In One Lithium Battery energy storage system
10.24kWh 10KWh All In One Lithium Battery energy storage system
Specifications
Brand Name :
Tuorde
Model Number :
RD-WP-50EA
Certification :
CE,UN38.3
Place of Origin :
China
Voltage :
51.2V
Capacity :
200Ah,10KWh
Output Power :
5000W
Product Name :
All In One Energy storage system
Safety Protection :
Overcharge, Short Circuit, Over-Current, Over-Voltage
Size :
600*1150*150 mm
Warranty :
5 Years
Description

Tuorde Factory power Al-in-one Ultra-thin RD-WP-50EA

RDSeries Off-grid Energy Storage System
Model TRD-WP-35EA TRD-WP-50EA
Battery
Rated voltage 51.2V
Voltage range 44.8~57.6V
Capacity 10.24kWh
Max.Discharge Curent 80A 110A
Max.Charge Curent 80A 80A
Battery type LFP
AC Output(Backup)
Rated power 3500W 5000W
Rated output voltag 208/220/230/240V
Max.output curent 16A 22.7A
Rated Current 15.2A 21.7A
R.ated frequency 50/60Hz
THDv <3%
Peak Efficiency(Battery Mode) >92%
Output type Pluggable connector
AC Input
Input Sources L+N+PE
AC Input Voltage Range 154-264V
Rated Input Voltage 208/220/230/240V
AC input frequenc 50/60Hz(Auto Adaptive)
PV Input
Max PV Input Power 4500W 6000W
Max.PV Input Voltage 450V
MPPT Votage Range 120-430V
Max.DC Input Curent 18A
Max.DC Short Circuit Curent 20A
Number of independent MPPT trackers 1
No.of PV strings per MPPT trackers 1
General Data
Range of working temperature 0~50°℃(Charge)/-10~50°C(Discharge)
Storage temperature -15°℃~60℃
Humidity 20-95%
Codling strategy Fan
Altitude <1000m
Weight 109kg
Dimension [Wx Hx D] 600*1150*150 mm
Enclosure protection rating IP20
Communication Wr-Fi (Optional)
Certificate
Certificate CE,UN38.3,TUV mark
