Specifications
Place of Origin :
Hunan, China
Brand Name :
rixin
Certification :
ISO9001:2008,ISO9001:14001
MOQ :
5
Material :
Cemented carbide
Material grade :
YG15/20C/YG22/25C
Surface treatment :
sand blast, polishing, mirror surface
Hardness HRA :
87 (YG15)
T.R.S :
2950 MPa
Density :
14 g/cm3 (YG15)
T.R.S MPa :
3000 (YG15)
Performance :
suitable for drawing steel bars and tubes under very high stress (YG15)
ISO grade :
K40 (YG15)
Wear resistance :
good
Strength :
high
Application stress :
very high
Surface finish :
mirror surface
Density range :
14-14.9 g/cm3
Description

YG15,YG20C, YG22C ,YG25C electrical wire drawing die wire moulding tungsten carbide wire drawing dies

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

Grade and Usage

Tungsten carbide, abbreviated as WC or TC, also called cemented carbide, hardmetal or widia, is a metal matrix composite where tungsten carbide particles are the aggregate and metallic cobalt serves as the matrix. It is a non-oxidizing ceramic that can withstand high temperatures while maintaining a hardness comparable to corundum or sapphire.


YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding
Grade Density g/cm3 Hardness HRA T.R.S MPa Performance & application recommended ISO
YG6X 14.85 91.5 2300 good wear resistance,suitable for drawing steel wires,nonferrous metal wires and alloy wires or bars less than OD6mm under low stress K10
YG6 14.9 90.5 2400 good wear resistance,suitable for drawing steel,nonferrous metal and alloy wires or bars less than OD20mm under low stress,also for drawing tubes less than OD10MM
YG8X 14.65 91.5 2900 good wear resistance and strength,suitable for drawing all kinds of wires and bars K20
YG8 14.7 89.8 2800 good wear resistance and strength,suitable for drawing steel,nonferrous metal and alloy bars less than OD50mm under high stress,also for drawing tubes less than OD35mm
YG15 14 87 3000 suitable for drawing steel bars and tubes under very high stress K40
Other grades may be offered by customers'requirement

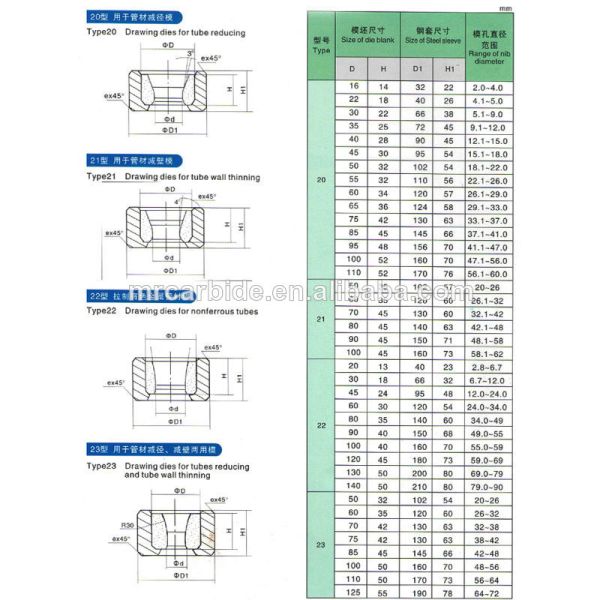

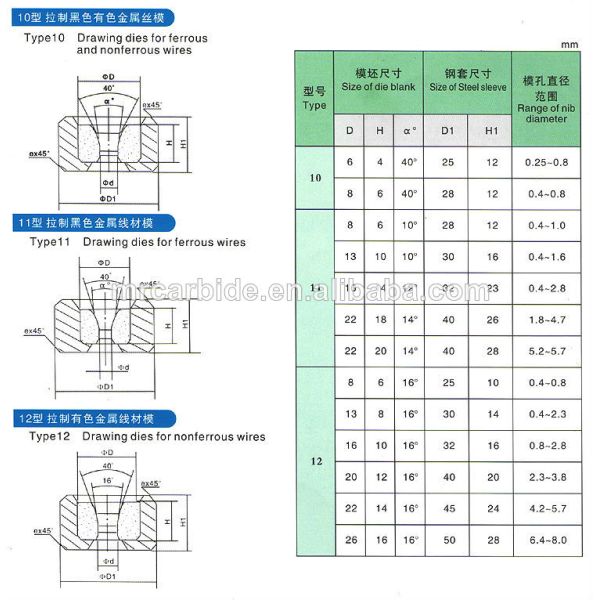

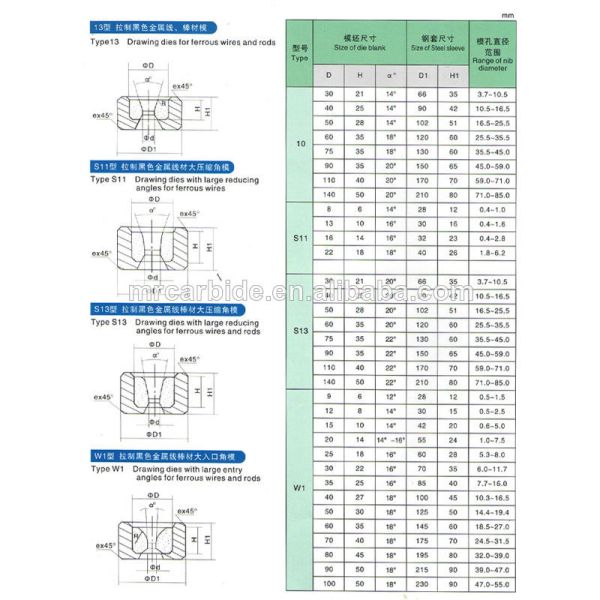

Size and Type
YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire MouldingYG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire MouldingYG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

Package and Delivery

Carbide tungsten plates,tungsten carbide draw plate,tungsten carbide draw plate

Packing Paper+paper boxes+exported wooden cartons or paper cases.
As a manufacturer, Mingri can provide any kinds of package as buyer's requirement.
Shipping

UPS,TNT,EMS,Fedex,DHL,or as you request.

Delivery

7-10 days after confirm all details.

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

Main Products

Carbide tungsten plates,tungsten carbide draw plate,tungsten carbide draw plate

We are specialized in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

Company Info

Carbide tungsten plates,tungsten carbide draw plate,tungsten carbide draw plate

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with the investment of 10 million dollars, area of 33300 square meters and 160 staffs. We have obtained 35 patents in invention, utility model and design , and passed ISO9001:2015 Certification in quality and GB/T 24001-2004/ISO 14001:2004 Certification in environment. offering all kinds of high quality tungsten carbide products and technical services to all clients. Our products are exported to US, Europe, Japan, Taiwan and South-east Asia etc. We have won support and trust from customers both home and abroad.

Workshop

We have powder mixing, pressing, sintering, finishing, surface treatment, mould design workshops and physical and chemical labs for inspection. We have hundreds of updated equipments to make sure month capacity 50 tons and excellent quality.

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

How to ensure the high quality standard?

Do you want to know the details?

Please follow......

Production & Testing

All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

We passed ISO9001:2000 in 2003 and keep improving the quality everyday. We have been always trying our best to provide our customers with high quality, the best price and satisfactory service.

Team and Exhibitions

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire Moulding

YG15 YG20C YG22C YG25C Tungsten Carbide Wire Drawing Die for Stainless Steel Electrical Wire MouldingAs one of the most professional manufacturers of tungsten carbide products in China, Zhuzhou Ming Ri Cemented Carbide Co., Ltd supplies a wide variety of high quality products for customers

worldwide with management principle of "stable quality & reliable cooperation".
