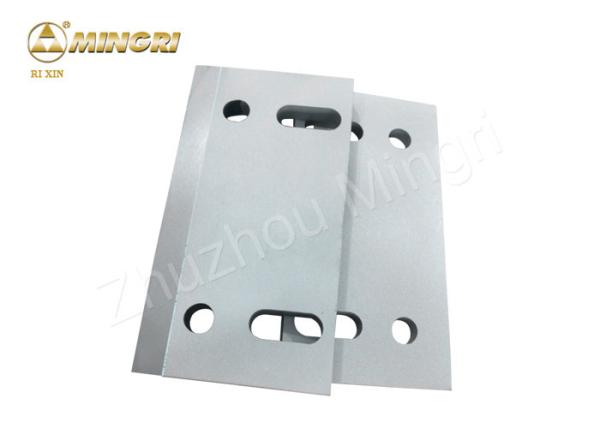

K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar
K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar
K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar
K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar
Specifications
Brand Name :
RiXin
Model Number :
Tungsten carbide strip
Certification :
ISO9001:2008; ISO14001:2004
Place of Origin :
Zhuzhou, Hunan, China
MOQ :
1 KG
Price :
USD+49~69+KG
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 tons/month K10 Conveyor Belt Cleaner Widia Tungsten Carbide Scraper Blade Tips
Delivery Time :
7 to 10 working days depending on the order quantity and requirements
Packaging Details :
paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
Product name :
K10 Conveyor Belt Cleaner Widia Tungsten Carbide Scraper Blade Tips
Keywords :
carbide blade tungsten carbide blade carbide tip
Grade :
K10, K20, K30, YG6, YG10X
material :
hard alloy, widia, tungsten carbide
Hardness :
91 - 92
Surface :
ground, sintered blasting
Sample :
acceptable
Description

K10 Conveyor Belt Cleaner Widia Tungsten Carbide Scraper Blade Tips

For detail of this product, please click More:

Description

Item Tungsten Carbide Scraper Blade Tips
Grade K10, K20, K30, YG6, YG8, YG6A, YS2T, YG10X
Sizes standard or customized.
Brand Rixin
Country of Origin Zhuzhou, China
Usage scraper blade, conveyor belt cleaner.

Why choose a tungsten carbide blade. Look for blades that offer:
• Better cleaning efficiency. When optimally tensioned, the thin, hard blade will provide
superior cleaning performance.
• Good value. When you consider lifetime cost vs. initial cost, a tungsten carbide blade’s durability and lower required maintenance often makes up the cost difference over the life of the blade.
• Versatility. Some designs can be used with mechanical belt fasteners.

Where to use tungsten carbide blades.
• Highest cleaning efficiency is another attribute that makes tungsten carbide the right choice
in applications where unbeatable performance is required.
• Highly abrasive materials are commonly conveyed on belts that use these wear-resistant blades.
• Reduced maintenance is the reason why many users choose carbide-tipped blades; they’re well worth the investment in applications where less durable blade materials result in unacceptable wear rates, cause frequent retensioning tasks and increase maintenance costs.

K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar

K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar

Grades:

Properties and applications of carbide strips
Grade Density T.R.S
MPa

Hardness

HRA

 Performance & application recommended
YM6 14.9 2400 90.5

Good wear resistance, used for hard wood, used for

processing original wood, aluminum section bar, brass rod and cast iron.
YM6A 14.85 2000 92.5

Wear resistance higher than YM6, used for processing hard wood,

original wood, aluminum section bar, brass rod and cast iron.
YM8 14.7 2800 89.8 High wear and impact resistance , suitable for machining dry wood, soft wood and non-ferrous metal section bar.
YM2T 14.25 2400 92 Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. It is suitable for machining refractory alloys, stainless steel, high manganese steel, etc.
YS25 13.0 2200 91 Wear resistance and strength comparatively higher, suitable for machining cast iron, non-ferrous metal and non-metal materials.
YM25 14.45 3000 91.8

Wear resistance and strength comparatively higher,

suitable for processing cast iron, non-ferrous,metal and non-metallid materials.
Other grades of strips may be offered according to customers' requirement.

Sizes:

K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar

Type Unit:mm
Type L W T Type L W T
140 * W * T 140 6 1.5-6.0 230 * W * T 230 8 2.0-6.0
140 * W * T 8 230 * W * T 10
140 * W * T 10 230 * W * T 12
140 * W * T 12 230 * W * T 16
140 * W * T 14 230 * W * T 18
140 * W * T 16 230 * W * T 20
140 * W * T 18 230 * W * T 22
140 * W * T 20 2.0-6.0 230 * W * T 25 2.5-6.0
140 * W * T 22 230 * W * T 28
140 * W * T 25 230 * W * T 30
165 * W * T 165 6 1.5-6.0 230 * W * T 32
165 * W * T 8 230 * W * T 40
165 * W * T 10 320 * W * T 320 8 2.0-6.0
165 * W * T 12 320 * W * T 10
165 * W * T 14 320 * W * T 12
165 * W * T 16 320 * W * T 14
165 * W * T 18 320 * W * T 16
165 * W * T 20 2.0-6.0 320 * W * T 18
165 * W * T 22 320 * W * T 20
165 * W * T 24 320 * W * T 22
165 * W * T 25 320 * W * T 24
165 * W * T 26 320 * W * T 25 2.5-6.0
165 * W * T 28 320 * W * T 28
165 * W * T 30 2.5-6.0 320 * W * T 30
165 * W * T 32 320 * W * T 32
165 * W * T 35 320 * W * T 35
165 * W * T 40 320 * W * T 40
··· ··· ··· ··· ··· ··· ··· ···
Other types of strips may be offered according to customers' requirement.

Application:

K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar

K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar

Package:

Packing Paper+paper boxes+exported wooden cartons or paper cases.
As a manufacturer, Mingri can provide any kinds of package as buyer's requirement.
Shipping UPS,TNT,EMS,Fedex,DHL,or as you request.
Delivery 7-10 days after confirm all details.

K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar

Main products:

We are specialized in all kinds of tungsten carbide profiles and dies, cutting tools, mining tools, wear parts and all kinds of non-standard customized tool parts with high performance in the industry.

For details about the below products, please click the More on below pictures:

K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar
K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar
K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar K10 Conveyor Belt tungsten carbide wear parts tungsten carbide bar

For details about our company, equipments, inspection and quality, please refer to

http://www.tungstencarbide-tools.com/aboutus.html

http://www.tungstencarbide-tools.com/factory.html

http://www.tungstencarbide-tools.com/quality.html
