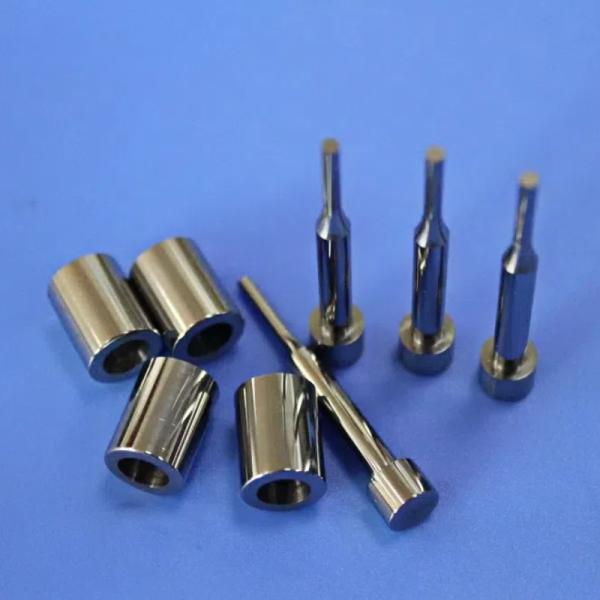

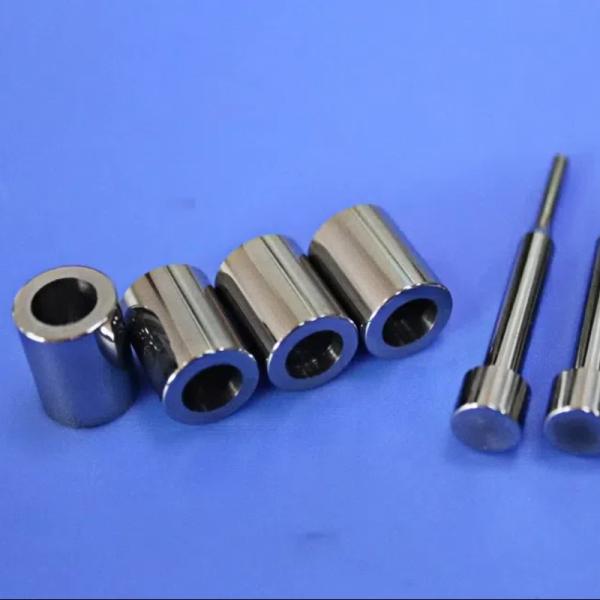

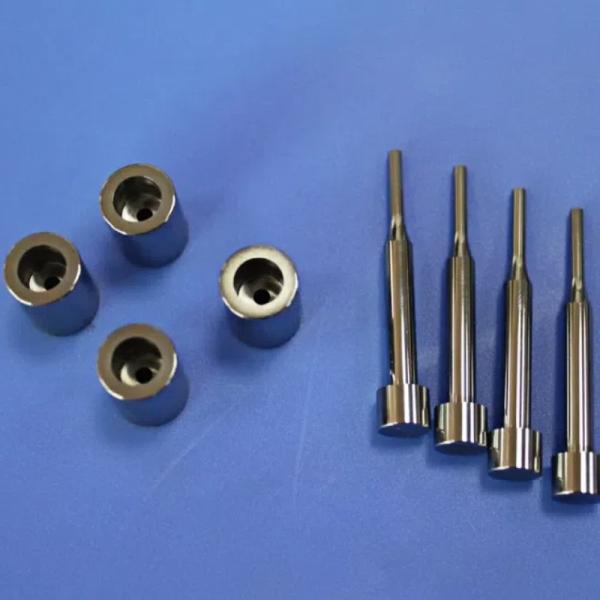

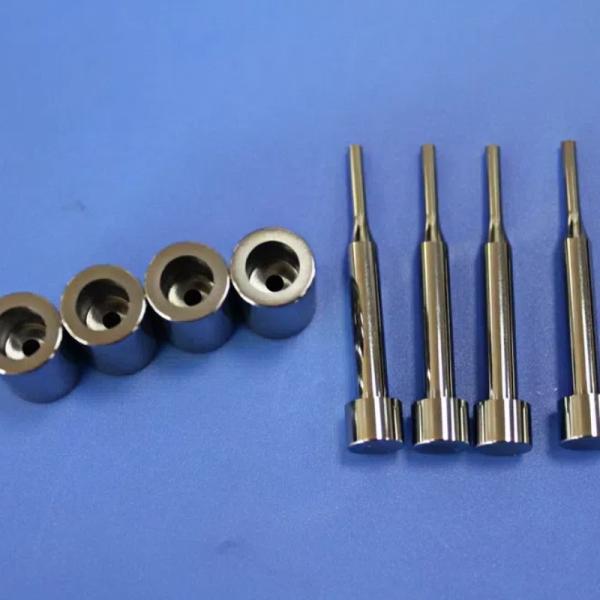

Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Non-magnetic 0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping
Specifications
Brand Name :
Sanxin
Model Number :
SX1260
Place of Origin :
Zhuzhou
MOQ :
5
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
5-25days
Chemical Resistance :
Resistant to most acids and alkalis
Features :
Excellent Wear and Corrosion Resistance
Melting Point :
2,870°C
Service :
OEM&ODM
Density :
15.63 g/cm3
Surface :
Blanks or polished grinding
Compressive Strength :
5,000 MPa
Tensile Strength :
2,000 MPa
Magnetic Properties :
Non-magnetic available
Shape :
Round, Square, Rectangular
Description

0.002mm Coaxiality Cold Heading Dies Bushing Punch For Automotive Electronics Stamping


Introduction:

The bushing punch adopts 94% tungsten carbide matrix (YG15 grade), with 92HRA body hardness + deep cold strengthened toughness, breaking through the bottleneck of edge breakage and deformation of traditional Cr12MoV mold steel, and achieving the ultimate match of ≤0.003mm gap between the guide bushing and the punch in 0.1mm precision blanking.


Performance-benchmark:

Key indicators Tungsten steel bushing punch (YG15)
Breakage resistance life >3 million times
Guide clearance 0.002-0.003mm
Thermal deformation <0.001mm/100℃
Wear rate 0.05μm/10,000 times


Precision-stamping:


Automotive core components
- Seat belt buckle progressive die (0.8mm thick 65Mn steel, lifespan > 5 million times)
- Engine fuel injector baffle (±0.003mm coaxiality to ensure oil hole accuracy)
- EV battery pole punching (resistant to copper-aluminum adhesion corrosion)


Electronic precision manufacturing
- Type-C interface terminal (0.2mm thick phosphor bronze, burr < 5μm)
- Mobile phone SIM card tray (12-station progressive die main punch)
- Relay silver contact (anti-arc ablation)


Home appliance wear-resistant parts
- Air conditioner fin multi-row hole punching (0.1mm thick aluminum foil, 20 holes/second)
- Washing machine reducer ratchet (hardened steel HRC50 continuous stamping)
