Specifications
Brand Name :
Sanxin
Model Number :
SX-2308
Certification :
ISO9001
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000pcs
High Hardness :
HRA92
Elastic Modulus :
530 - 700 GPa
Features :
Excellent Wear and Corrosion Resistance
Lifespan :
Long
Product Type :
Industrial Material
Hole Size :
1.6 Inner Hole
Coatingoptions :
TiN, TiCN, TiAlN
Melting Point :
2,870°C
Industry :
Oil and Gas
Purpose :
Mechanical Seal Rings
Alloy Specification :
YG6/YG8/YG8C/YG11/YG11C
Description

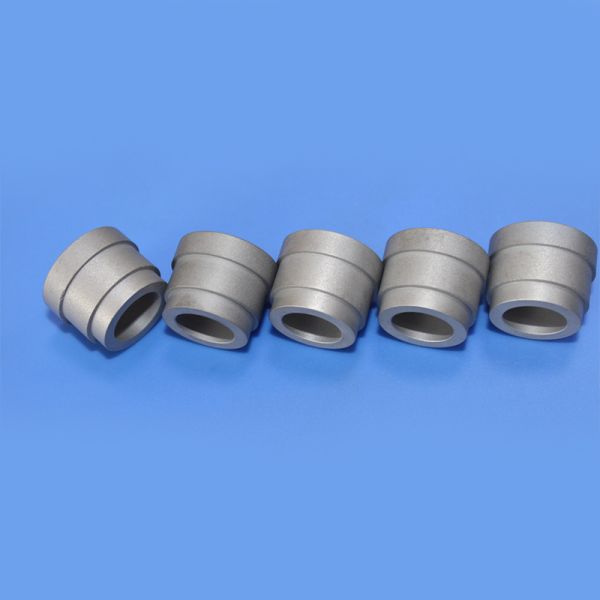

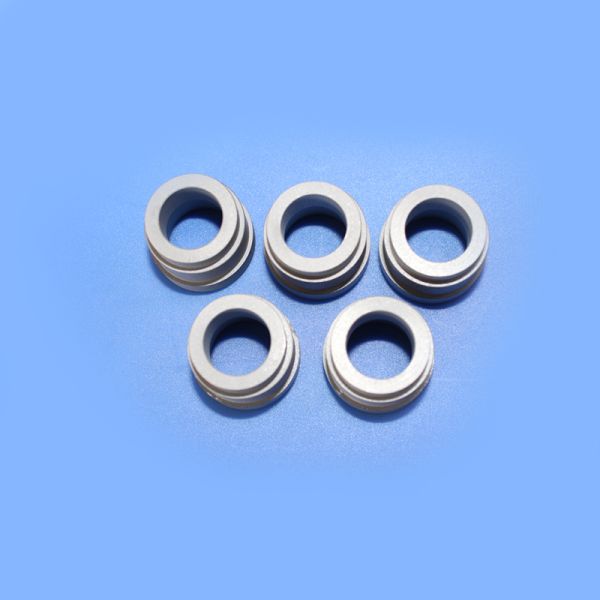

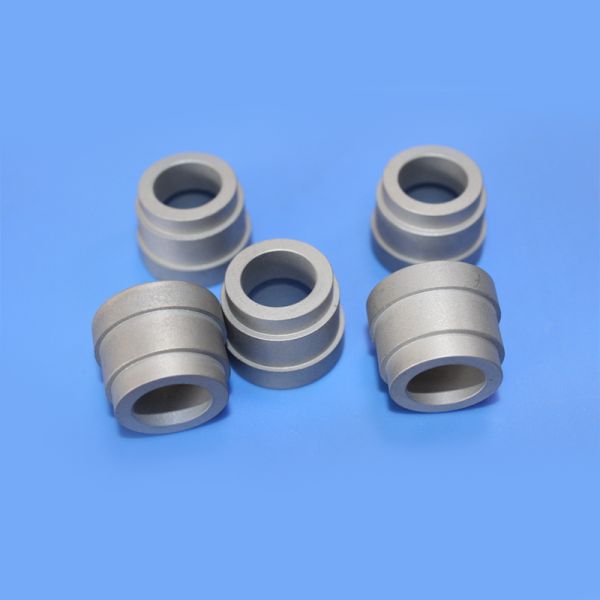

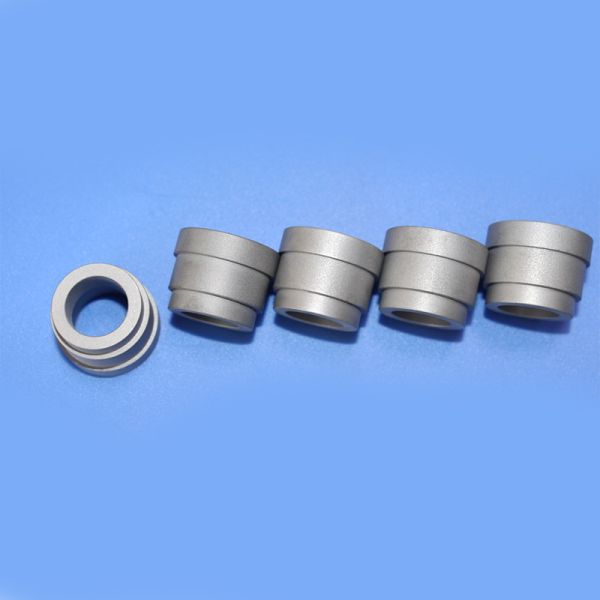

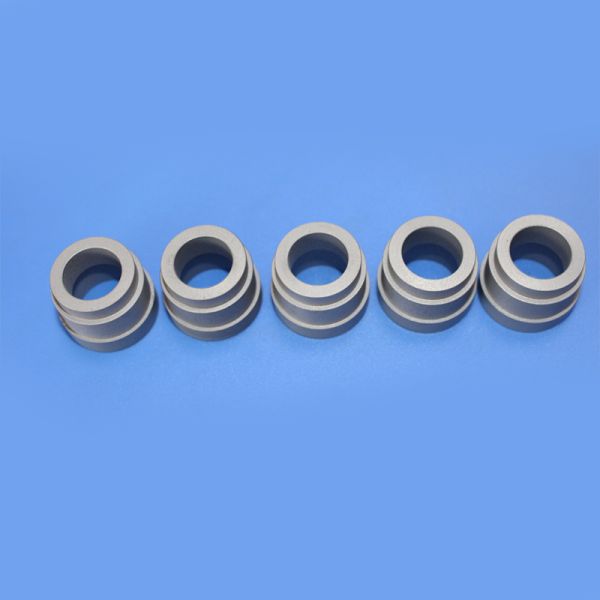

High-Precision Tungsten Steel Rod Sleeve Blank Preform
This tungsten steel rod sleeve blank preform is manufactured from high-hardness, wear-resistant tungsten steel material using precision processes. Designed for demanding industrial applications requiring extreme wear resistance, high-temperature tolerance, deformation resistance, and stable mechanical properties, it serves as an exceptional semi-finished product for subsequent precision machining operations.
Core Features & Advantages
Exceptional Material Properties
  • Extreme Hardness & Wear Resistance: High-quality tungsten steel with hardness exceeding HRA 90 provides superior wear resistance compared to traditional materials, significantly extending component service life
  • Excellent Rigidity & Compressive Strength: High modulus of elasticity and compressive strength resist deformation under heavy loads while maintaining dimensional stability
  • Good Corrosion & High-Temperature Resistance: Capable of withstanding chemical corrosion and high-temperature environments for demanding operating conditions
Precision Preforming & Near-Net Shape
  • Accurate Preform Shape: Powder metallurgy and precision pressing processes create blanks that approximate final product contours with uniform material distribution
  • Excellent Material Utilization: Near-net-shape design minimizes machining allowance, saving tungsten steel material and reducing machining time and costs
  • Stable Internal Quality: High density and uniform microstructure with minimal internal defects ensure consistent final product performance
Superior Machinability
  • Optimized Processability: Prepared condition facilitates efficient finishing processes including grinding, wire EDM, and lapping
  • Reduced Machining Stress: Precision preforming minimizes stress during final machining, enhancing long-term dimensional stability
Typical Application Fields
  • Precision Machinery & Automation: Blanks for high-precision spindles, guide columns, guide rails, bushings, and wear-resistant shafts
  • Mold Manufacturing: Preforms for high-wear inserts, ejector pins, and sleeves in stamping dies, drawing dies, and powder metallurgy molds
  • Cutting Tools & Drilling: Base material for wear-resistant components in geological drilling, oil exploration drill rods, and high-end cutting tool shanks
  • Measuring Instruments & Fixtures: Manufacturing wear-resistant probe tips, guide sleeves, and high-stiffness fixture components
  • High-Temperature & Wear-Resistant Components: Blank parts for high-temperature and abrasive applications in metallurgy, glass manufacturing, and ceramics
Specifications & Customization
Standard Materials Various grades with different tungsten carbide grain sizes and cobalt content ratios to balance hardness, wear resistance, and toughness
Size Range Available in various diameters, lengths, and wall thicknesses in cylindrical, stepped, or specific geometric shapes
Surface Condition Typically as-sintered surface or after preliminary treatment (black skin, rough grinding), adjustable per machining requirements
Customization Accepts customer drawings or technical specifications for non-standard dimensions, shapes, and performance requirements
Value Proposition
  • Longer Component Life: Enhances durability and reliability of end products from the source
  • Higher Machining Efficiency: Reduces machining volume, shortens production cycles, and lowers manufacturing costs
  • Better Final Precision: Provides solid foundation for high-precision, performance-stable components
  • Strong Engineering Support: Professional material selection and preform solution advice for product success
