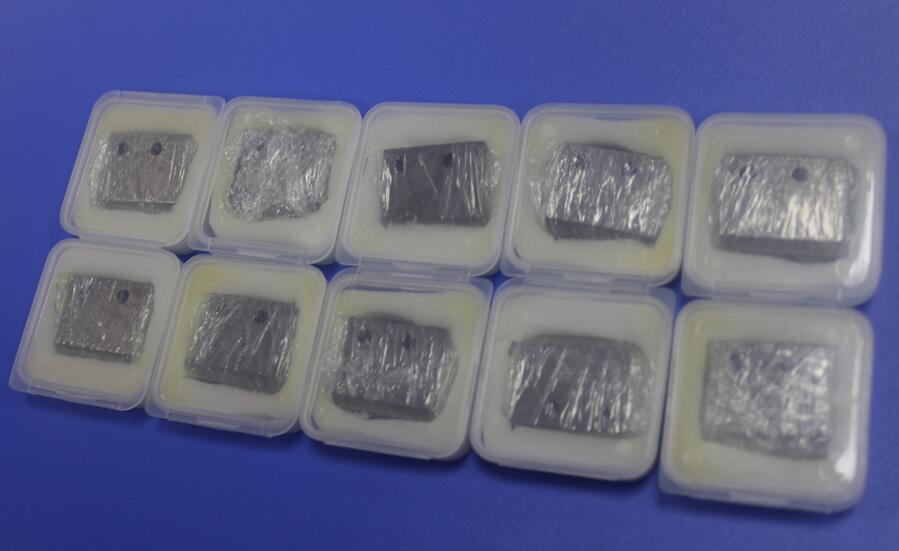

Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Specifications
Brand Name :
Sanxin
Model Number :
SX1302
Certification :
ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,L/C,Western Union
Delivery Time :
5-30days
Features :
Sharp Edged
Blade Type :
Cutting Blade
Business Type :
Manufacturer
Edge Retention :
Long-Lasting
Impact Resistance :
Excellent
Service :
OEM & ODM
Other Name :
Tungsten Carbide Cutter
Item :
Carbide Non-standard Shaped Blade
Precision :
Accurate cutting
Melting Point :
2,870°C
Description
WC-Ni Carbide Turning & Milling Precision Tools for Magnetic-Sensitive Metalworking
Non-Magnetic WC-Ni Carbide Precision Tools with Long-Lasting Edge Retention and Excellent Impact Resistance for Magnetic-Sensitive Metalworking
Advanced Non-Magnetic Precision Cutting Solutions

In precision metalworking—particularly when machining magnetic materials, manufacturing components for sensitive equipment, or operating in EMI-sensitive production environments—standard carbide cutting tools present significant risks. Magnetic tool substrates can transfer residual magnetism to workpieces, interfere with in-process measurement systems, and compromise final component performance.

Our Non-Magnetic Precision Cutting Tools are engineered specifically to overcome these challenges. Manufactured from advanced WC-Ni (Tungsten Carbide-Nickel) alloy systems, these tools deliver the essential combination of absolute magnetic neutrality, exceptional hardness, and superior wear resistance for the most demanding metalworking applications—from aerospace alloy turning to medical device micro-machining and magnetic material cutting.

Exceptional Hardness & Wear Resistance

WC-Ni based cutting tools achieve impressive mechanical properties that rival or exceed conventional carbide grades:

Property Typical Value
Hardness 930 - 1,175 HV
Comparable Hardness (HRA) ~90 - 92 HRA
Flexural Strength 2.0 - 3.1 GPa
Compressive Strength > 4,000 MPa

This hardness translates to 3-5x longer tool life than hardened tool steel and comparable wear resistance to standard carbide—but without the magnetic drawbacks.

Reduced Friction & Improved Chip Flow

WC-Ni based cutting tools have demonstrated 3.2% to 7.9% lower friction coefficients compared to conventional WC-Co tools, leading to smoother cutting action, reduced heat generation, and extended tool life.

Comprehensive Product Range
Tool Type Description Typical Applications
Turning Inserts Precision-ground indexable inserts for external/internal turning Magnetic material turning, precision shaft machining
Grooving & Cut-Off Inserts T-blade style and full-radius grooving tools Groove cutting, part-off operations, oil groove machining
Milling Inserts Square, round, and octagonal styles for face/end milling Surface finishing, shoulder milling, slotting
Threading Inserts Full-profile and partial-profile designs Internal/external threading on magnetic alloys
Boring Bars & Holders Solid carbide bars with integrated non-magnetic properties Deep-hole boring, internal contouring

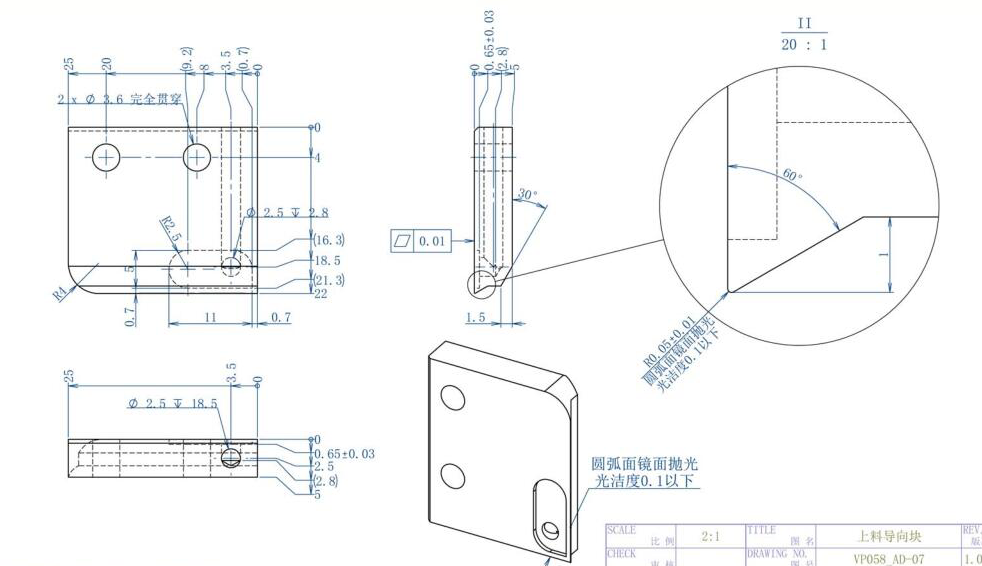

Custom Profiles Application-specific geometries per customer drawing Non-standard profiles, special form tools
Material Grade Selection Guide
Grade Hardness (HRA) TRS (MPa) Key Characteristics Best Applications
WC-Ni Standard 90.0 - 91.5 2,200 - 2,800 Balanced wear resistance and toughness General turning, milling
WC-Ni-Cr 89.0 - 90.5 2,000 - 2,600 Excellent corrosion resistance Medical, chemical machining
WC-Ni Fine Grain 91.5 - 92.5 2,800 - 3,200 High edge strength, superior finish Precision finishing, micro-machining
WC-Ni Nanocomposite 92.0 - 93.0 3,000 - 3,500 Ultra-high wear resistance High-volume production, abrasive materials
Non-Magnetic Cermet 91.0 - 92.0 2,000 - 2,500 Excellent surface finish, low adhesion Finishing of hardened steels
Why Partner With Us?
Specialized Expertise

Years of experience manufacturing precision carbide components for magnetic-sensitive metalworking applications

Application Engineering

Deep understanding of cutting tool geometry, material science, and machining processes

Advanced Manufacturing

In-house capabilities including CNC grinding, wire EDM, and precision finishing

Global Supply

Consistent quality, reliable delivery, and professional export documentation worldwide
