Specifications
Brand Name :
Sanxin
Model Number :
SX-2280
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000 pcs/month
Substrate :
Ultra-fine grain tungsten carbide (WC grain size ≤0.5μm)
Hardness :
HRA 89 – 93
Transverse rupture strength :
≥2800 N/mm²
Cobalt content :
6% – 12% (adjustable for toughness/wear resistance)
Profile accuracy :
±0.001mm
Minimum cutting diameter :
Ø0.3mm
Coating (optional) :
TiAlN / AlTiN / TiSiN / Diamond
Description

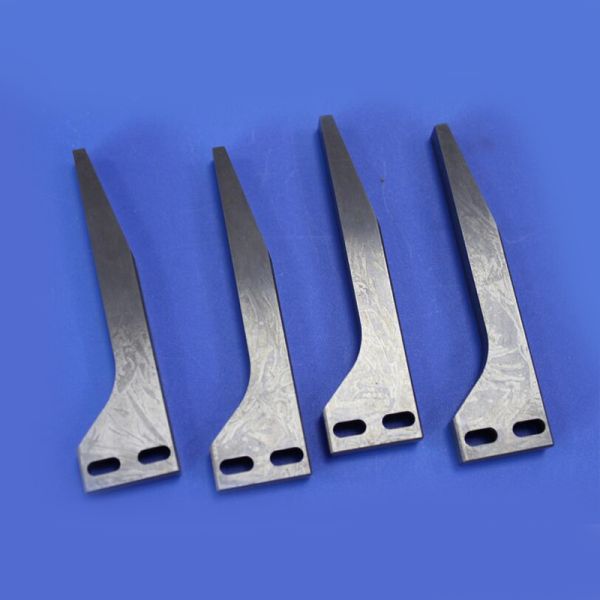

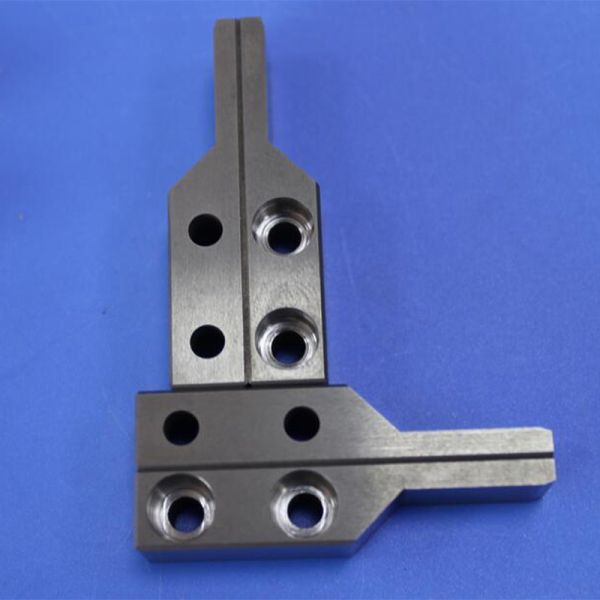

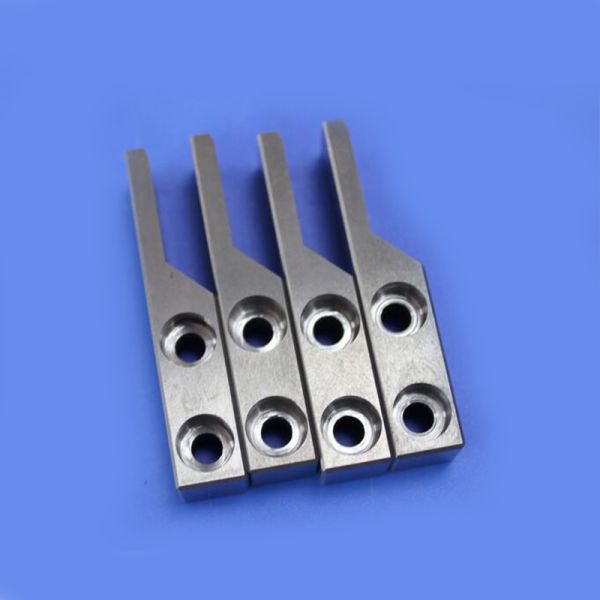

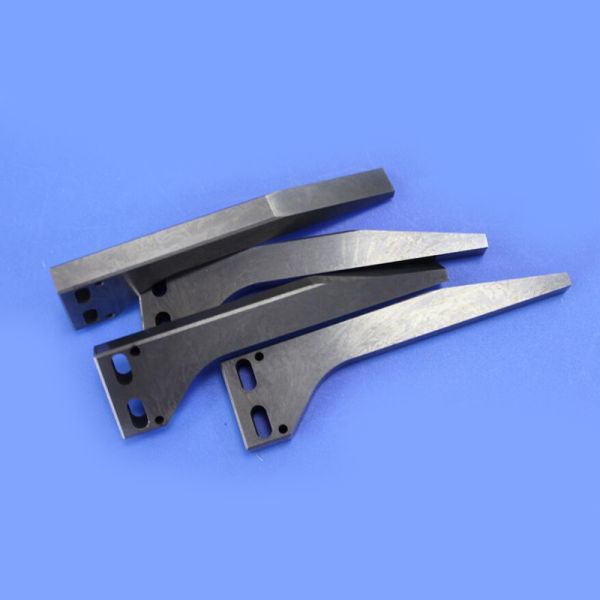

Custom Tungsten Carbide Special-Shaped Tools
When standard tools cannot meet your special machining requirements, we offer fully customizable tungsten carbide special-shaped tools. From step form cutters to dovetail cutters, from small-diameter deep-groove tools to combined step tools — we provide targeted solutions for hard materials, complex contours, and restricted spaces.
Product Overview
Tungsten carbide special-shaped tools are made from ultra-fine grain tungsten carbide substrate and precision-ground on 5-axis CNC tool grinders, suitable for milling, turning and form cutting operations. Tool shapes are manufactured strictly according to customer drawings or samples — no need to compromise with standard tool inventory.
Whether for one-off prototyping or batch production, we guarantee profile accuracy of ±0.005mm and consistent batch-to-batch stability.
Key Advantages
Advantage Description
Custom-made to drawings Accepts CAD drawings, 3D models or scanned samples. No MOQ restriction.
High-hardness material machining Capable of stable cutting on HRC 50-65 hardened steel, die steel, stainless steel, titanium alloys, superalloys.
Complex contours in one pass Reduces tool changes and operations, improves efficiency and accuracy.
Extended tool life Tungsten carbide wear resistance is 5-20x that of HSS — ideal for mass production.
Optional coatings TiAlN / AlTiN / TiSiN / Diamond coating — matched to your application.
Customizable Tool Types
  • Special-shaped end mills (form cutters, profile cutters)
  • Dovetail cutters / T-slot cutters
  • Step form cutters / combined step tools
  • Chamfer cutters / radius cutters
  • Thread form cutters
  • Special-shaped turning tools (custom form tools)
  • Small-diameter deep-groove tools (minimum Ø0.3mm)
  • Other custom profiles per drawings
Applicable Work Materials
  • Hardened steel, die steel (HRC 50-65)
  • Stainless steel (304, 316, 17-4PH, etc.)
  • Titanium alloys (TC4, etc.)
  • Superalloys (Inconel, GH4169)
  • Aluminum alloys, copper alloys
  • Fiberglass, carbon fiber reinforced composites
  • Sintered metals, carbide (with diamond coating)
Typical Applications by Industry
Industry Typical Parts
Precision molds Stamping dies, injection molds, casting gate trimming
Automotive components Steering knuckles, brake discs, engine parts
3C electronics Phone frames, buttons, housing chamfers
Aerospace Superalloy structural components
Medical devices Bone plates, bone drills, surgical instruments
Customization Process
  1. Submit requirements
    Send drawings (DWG/STEP/IGS) or physical samples — include work material, machine parameters and cutting requirements.
  2. Design review
    Evaluate tool geometry, optimize thin walls, sharp corners and other risk areas.
  3. Programming & grinding
    Precision forming on 5-axis CNC tool grinders.
  4. Inspection
    Full inspection using vision measuring machines, tool presetters and profile projectors.
  5. Test cutting (optional)
    Test cutting video or report available upon request.

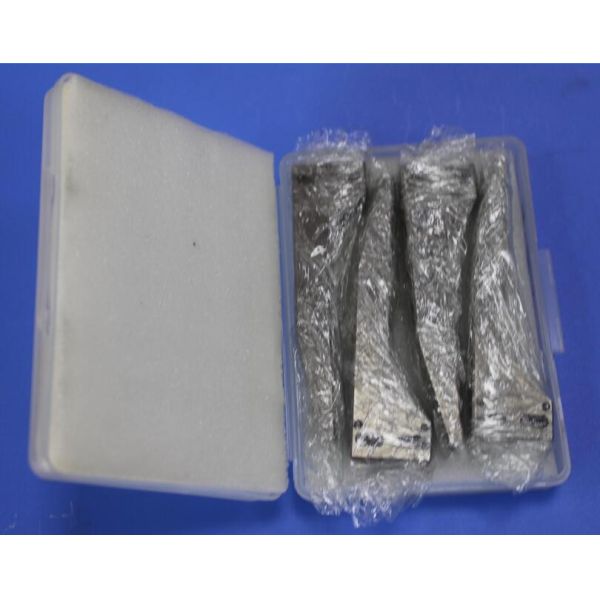

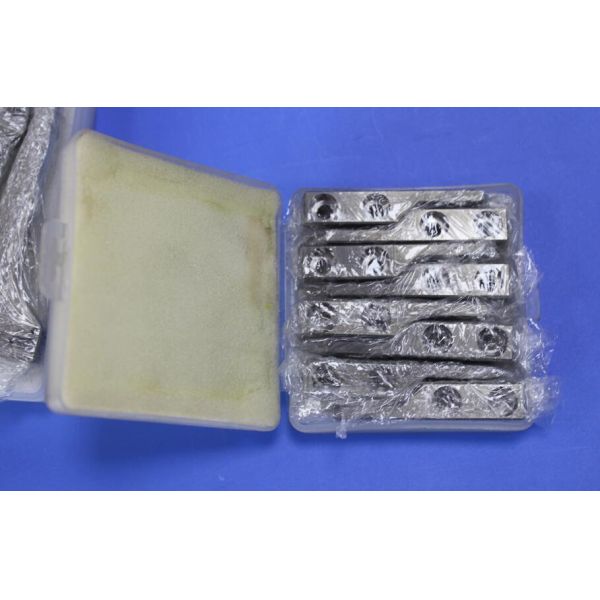

  6. Delivery
    Includes inspection report, packaged in standard secure packaging.
