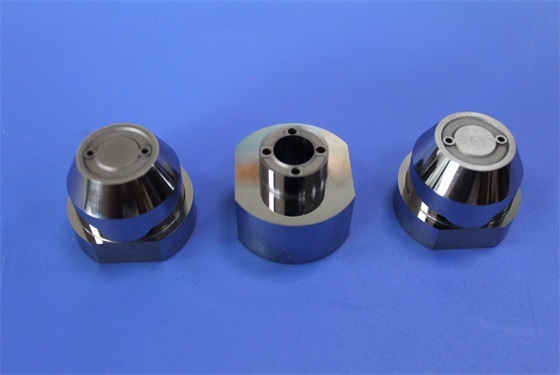

Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Precision Non-Magnetic Tungsten Carbide Dies with High Wear Resistance and Corrosion Resistant for Advanced Manufacturing
Specifications
Product name :
tungsten carbide forging die,Rod Punching Die Cutting Mould Copper Diamond Press Wire Drawing Dies,Customized Tungsten Carbide Punching Cold Heading Dies,Die,wire drawing dies
Design software :
CAD,UG,ect,PRO/E
Company type :
manufacture
Payment Terms :
T/T,L/C,Western Union
Material :
Tungsten Carbide,steel,G5,Cooper,Aluminum
Grade :
K10,YG6/YG8/YG10X/YG20C,YG11,MJ20,YG6X
Advantage :
Durable,High wear &corrosion,High toughness & good wear resistance,30years production experience in tungsten carbide field
Size :
Customer Size Accepted,OEM Accepted,D20-100,Standard or Non-standard
Application :
copper,Mining,aluminum,Extrusion Mold,Forging machine
Model Number :
SX1301
Shaping mode :
Die Casting,Punching Mold,Extrusion Mould,Plastic Injection Mould,Compression Mould
Product material :
tungsten carbide,Steel,Metal,die cutting punch,WC
Brand Name :
Sanxin
Certification :
ISO
Delivery Time :
5-30days
Product :
Vehicle Mould,Household Product,Extrusion Mold,mold parts,drawing die
Tooling machine :
Engraving,Wire-Cutting,EDM/Wire cutting/Grinding/Milling/QC/CNC,CNC,EDM
MOQ :
1
Surface treatment :
Polishing,Sand Blasting,none,Grinding,With Steel cases or without cases
Place of Origin :
China
Description
Precision Non-Magnetic Alloy Mold Components for Advanced Manufacturing
Engineered for Magnetic-Sensitive Molding Environments

In precision injection molding, die casting, and powder compaction—particularly when processing magnetic materials or manufacturing components for sensitive equipment—standard tool steel molds introduce critical risks. Magnetic interference can compromise part quality, while insufficient wear resistance leads to premature tool failure.

Superior Wear Resistance & Tool Life
Property Non-Magnetic Carbide (WC-Ni) Non-Magnetic Steel (e.g., AISI 316) Standard Tool Steel
Hardness HRA 87 - 92 (HV 900-1700) HRC 20-25 HRC 50-58
Wear Life 10-50x longer 1x baseline 5-10x baseline
Compressive Strength > 4000 MPa ~200 MPa ~2000 MPa
Magnetic Permeability < 1.002 1.02-1.05 > 100
Corrosion & Chemical Resistance

Nickel-bonded carbides offer significantly better corrosion resistance than cobalt-bonded grades, making them ideal for:

  • Molding corrosive materials (PVC, fluoropolymers, engineering plastics with flame retardants)
  • Operating in humid or chemically aggressive environments
  • Applications requiring frequent cleaning or sterilization
Thermal Stability & Conductivity

WC-Ni alloys maintain dimensional stability across wide temperature ranges with:

  • Low thermal expansion coefficient: ~5.5 × 10⁻⁶ /K
  • Good thermal conductivity: Helps dissipate heat in high-cycle molding
Key Applications & Industries
Industry Application Why Non-Magnetic Alloy Components
Magnetic Material Molding Ferrite cores, bonded magnets, magnetic polymer components Prevents magnetization of molded parts; eliminates magnetic attraction of powders during filling
Medical Device Manufacturing Implantable components, surgical instrument handles, diagnostic consumables Zero magnetic contamination, corrosion resistance for sterilization, biocompatibility
Semiconductor & Electronics Connector housings, sensor components, micro-switch parts No electromagnetic interference, wear resistance for glass-filled materials
Precision Optics Lens holders, light guides, optical mounts Mirror-finish capability (Ra < 0.1μm) prevents surface defects
Powder Injection Molding (MIM/CIM) Metal and ceramic micro-components Exceptional wear resistance for abrasive feedstocks
Aerospace & Defense Structural components, EMI-sensitive housings Non-magnetic signature, dimensional stability under extreme conditions
Material Selection Guide
Material Hardness Magnetic Permeability Key Characteristics Best Applications
WC-Ni (Standard) HRA 90-91 < 1.002 Balanced wear resistance and toughness General non-magnetic tooling
WC-Ni-Cr HRA 89-90 < 1.002 Excellent corrosion resistance Medical, chemical environments
WC-Ni Nanocomposite HRA 92+ < 1.002 Ultra-high wear resistance High-volume, abrasive materials
Non-Magnetic Steel HRC 20-45 1.02-1.05 Machinability, lower cost Prototypes, low-wear applications
Non-Magnetic Tool Steel HRC 45-55 1.005-1.01 Higher strength than stainless Structural mold components
