450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
Specifications
Brand Name :
Sanxin
Model Number :
SX1266
Place of Origin :
Zhuzhou, China;
MOQ :
2
Payment Terms :
T/T,Western Union,L/C
Delivery Time :
5-25days
Content :
WC
Size :
OEM accepted
Grade :
YG6, YG6X,YG8,YG10X;
Inner Hole :
Customized
Thermal Conductivity :
110 W/mK
Manufacuter :
Yes
Advantage :
High precision good wear resistance
Commodity :
Tungsten carbide nozzle
Precision :
High Precision
Nozzle Type :
Straight Bore
Surface Finish :
Polished
Description

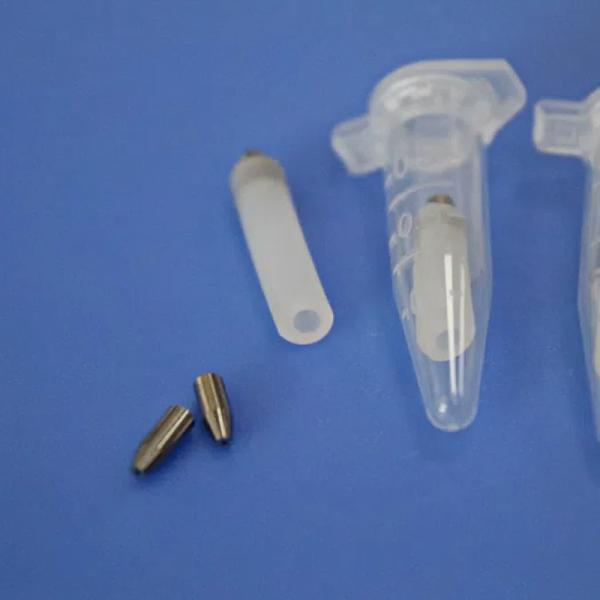

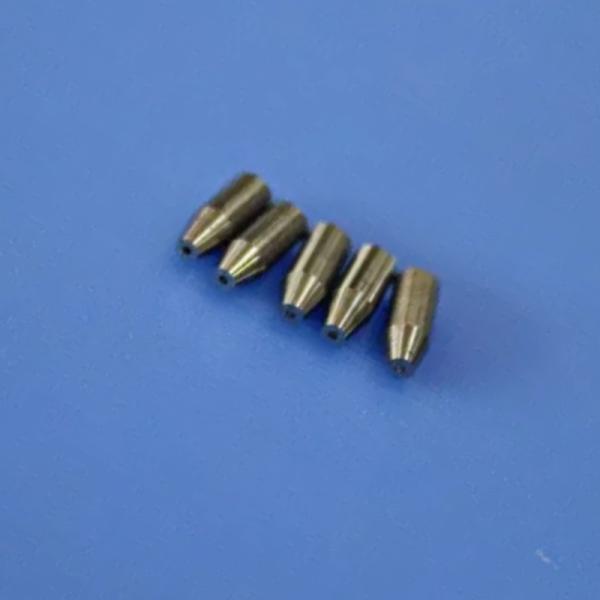

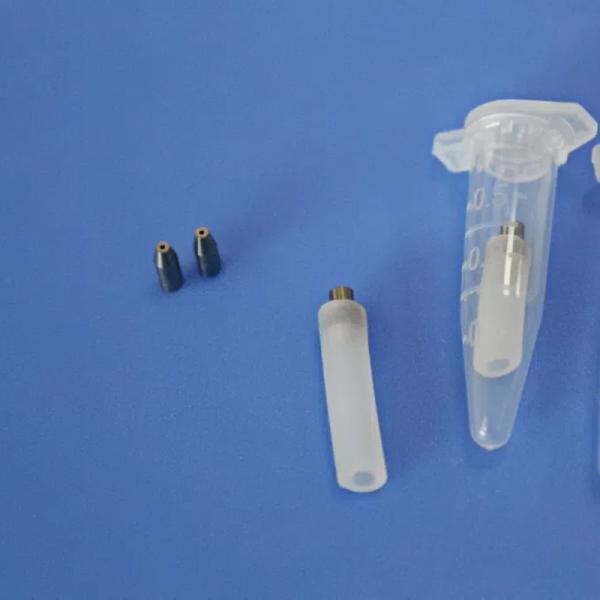

Mirror-finished Flow Channel Treatment 450µm Precision Hard Metal Solder Ball Nozzle
The precision-manufactured 450µm solder ball nozzle, through nano-scale aperture processing and mirror-finished flow channel treatment, completely solves the wear and clogging problems of multi-material nozzles, achieving non-clogging, wear-free, and long-life precision solder ball jetting in the field of microelectronics welding.
Structure
  • Aperture Accuracy: 450µm ± 1µm (Laser Test Certified)
  • Structural Features:
    • Monolithic, one-piece construction (seamless, uncoated)
    • Mirror-polished flow channel (Ra ≤ 0.1µm)
    • Optimized 15° flow cone angle
  • Thermal Management:
    • Thermal conductivity 85 W/m*K
    • Thermal expansion coefficient 4.5×10⁻⁶/K
Performance Comparison
The absolute advantage of integral tungsten carbide nozzles
Performance Specifications Carbide Integral Nozzle Stainless Steel Nozzle Ceramic Nozzle Advantages
Service Life 2,000,000+ cycles 300,000 cycles 800,000 cycles 150% increase in service life
Aperture Stability ±1µm ±5µm ±3µm 300% increase in accuracy
Thermal Deflection ≤0.001mm 0.015mm 0.005mm 5x increase in stability
Maintenance Cost No maintenance required Frequent replacement Regular replacement 70% cost reduction
Core Manufacturing Processes
1. Precision Drilling Technology
  • Micro-hole EDM
  • Aperture Accuracy ±1µm
  • Roundness ≤0.5µm
2. Mirror Polishing
  • Diamond Paste Polishing
  • Flow Channel Roughness Ra ≤0.1µm
  • Electrolytic Polishing for Deburring
3. Quality Inspection System
  • Full Inspection with Industrial Endoscopes
  • Laser Aperture Measurement
  • Flow Testing Verification
