Specifications
Name :
Cemented Carbide Pin
Feature :
High Hardness, wear resistant, anti-corrosion
Diameter :
0.02mm Sharp Tip
Application :
Industrial Production Parts
Surface Finish :
Polished
Service :
OEM&ODM
Grade :
YG6/YG8/YG11C/YG13C/YG15C
Brand Name :
Sanxin
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10-50000pcs/month
Delivery Time :
15~45 Days
Packaging Details :
Safety Packing
Model Number :
SX1183
Description

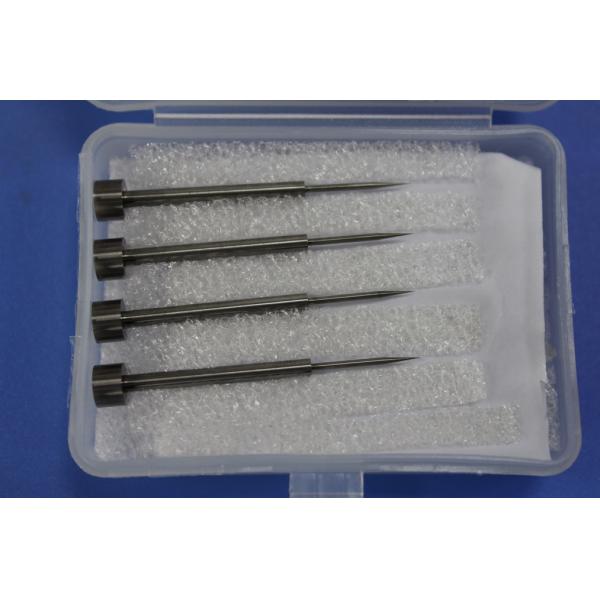

High Precision Cemented Carbide Pin with 0.02mm Sharp Tip Diameter
This cemented carbide pin features an ultra-precise 0.02mm tip diameter and is manufactured from tungsten carbide material. Cemented carbide, also known as tungsten carbide, is a composite material composed of tungsten carbide particles bonded together with a metallic binder, typically cobalt or nickel.
High Precision Cemented Carbide Pin with 0.02mm Sharp Tip Diameter
Applications
  • Fabric and Textile Industry: Creating perforations, patterns, or designs on fabrics
  • Paper and Cardboard Industry: Perforating paper or creating tear-off edges
  • Leatherworking: Creating precise perforations or stitch holes in leather products
  • Crafts and DIY Projects: Controlled punching or perforation in various craft applications
  • Medical and Surgical Instruments: Creating small perforations in surgical masks or drapes
  • Filtration and Sieving: Applications requiring controlled perforation
  • Electronics and Circuitry: Creating small holes or vias in PCBs
Customization Services
Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd provides comprehensive customization services for high-precision ceramic insert tungsten carbide core needles. We meet customer requirements for precision tolerances in PIN needles, with the customization process aligning with customer-provided drawings and specifications for ceramic powder injection molding molds.
Technical Requirements
Precision: ±0.001 to ±0.0005
Material: Tungsten carbide
Ceramic Material: Yttria-Stabilized Zirconia Nanopowder (Y-PSZ)
Properties: High-temperature resistance, acid corrosion resistance, durable performance
Through Zhuzhou Sanxin's advanced production process, these ceramic insert tungsten carbide core needles achieve large-scale, batch production capabilities for high-demand industrial environments.
Parameters Details
Shape Round, Square, Rectangular
Heat Resistance ≤ 900ºC
Product Name Tungsten Carbide Processing
Tolerance ± 0.01mm
Density 14.5-15.0g/cm³
Flexibility Excellent
Impact Resistance Excellent
Processing Method Cutting, Grinding, Polishing
Lifespan Long
Material Tungsten Carbide
Plating Tungsten Carbide Plating, Tungsten Carbide Coating
