Specifications
Brand Name :
Sanxin
Certification :
ISO
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10-50000pcs/month
Delivery Time :
15~45 Days
Packaging Details :
Safety Packing
Model Number :
SX1295
Name :
Tungsten Carbide Die Bushing
Shape :
Carbide Sleeve
Categories :
Tungsten Carbide Mold
Feature :
Precision, durable, hard and strong
Compatibility :
Compatible with various machines
Size And Shape :
Customized carbide mold, OEM Accepted
Fetaure :
Wear Resistance
Application :
Molding industry
Description

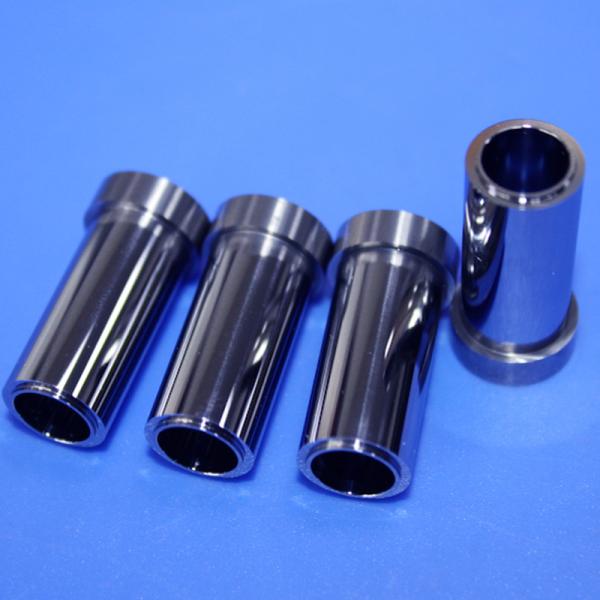

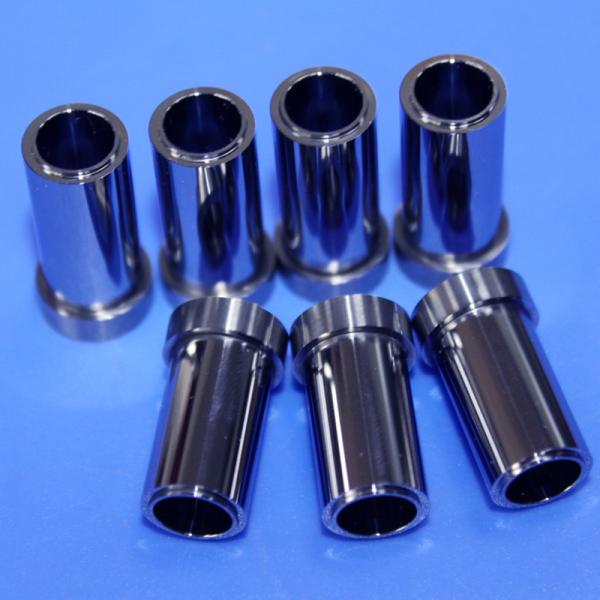

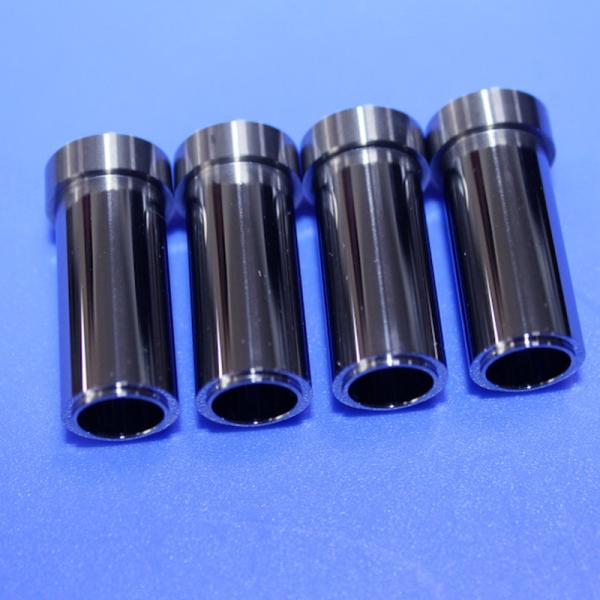

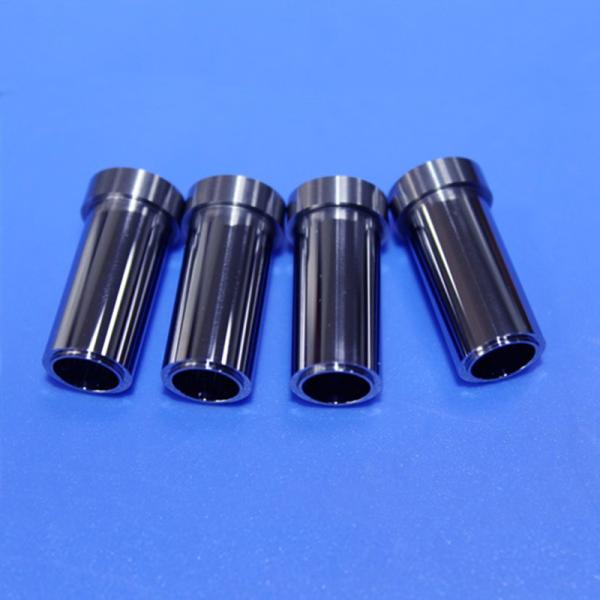

Non-magnetic Tungsten Carbide Mold Fixed and Movable Die Bushing

Non-magnetic tungsten carbide die bushing, carbide mold inner sleeve are high-performance mechanical components widely used in mold manufacturing, machining, and high-precision equipment. Below is a detailed product description of carbide forming sleeves:


Product Features

  1. High Hardness and Wear Resistance: Carbide forming sleeves have extremely high hardness (HRA 89-93) and excellent wear resistance, ensuring stable performance in high-load and high-wear environments.
  2. High Strength and Toughness: Carbide material not only has high hardness but also exhibits good strength and toughness, capable of withstanding significant impacts and loads.
  3. Thermal Stability: Carbide maintains its hardness and strength under high-temperature conditions, making it suitable for high-temperature applications.
  4. Corrosion Resistance: Carbide materials offer good resistance to various corrosive media, suitable for acidic and alkaline environments and other corrosive working conditions.
Applications Technical Parameters

Carbide forming sleeves are widely used in the following fields:

  1. Mold Manufacturing: Used as core components in various molds such as stamping molds and drawing molds, ensuring the service life and processing precision of the molds.
  2. Machining: Serves as key parts in high-precision machining equipment, enhancing processing quality and efficiency.
  3. Mining and Construction Machinery: Used as wear-resistant parts in drill bits, excavators, and other equipment, significantly improving the durability and working efficiency of the machinery.
  4. Aerospace: Used as critical components in the demanding aerospace industry, ensuring high reliability and long service life of the equipment.
  1. Material Composition: Mainly composed of tungsten carbide (WC) and cobalt (Co), mixed in a certain proportion. The specific composition ratio can be customized according to customer requirements.
  2. Hardness: HRA 89-93
  3. Density: 13.9-14.5 g/cm³
  4. Flexural Strength: 2000-3000 MPa
  5. Grain Size: 0.4-1.0 µm

Company Profile:

Our company is specializing in producing and manufacturing hard alloy insert pins for precision mold customers. It is used with electronic ceramic injection molds. The precision requirements are very high, and the perfect consistency of products is the primary standard of this set of products.

1. Custom tungsten carbide wearproof mold parts supplier.

2. High quality cemented carbide raw material.
3. Mature processing technology.

4. Product deformation small, molded parts made to order.

5. Welcome to design and sample customized non-standard products.

6. Full range of types available, more convenient for you to purchase.

7. Various grades available, therefore can provide full machiningsolutions.

8. Produced with precision molds, the products have better dimensional accuracy and uniform.

9. Careful surface treatment, ensuring perfect appearance, increasing customer satisfaction.

10. Made of top-quality raw material, have more stable properties, also extend its service time.

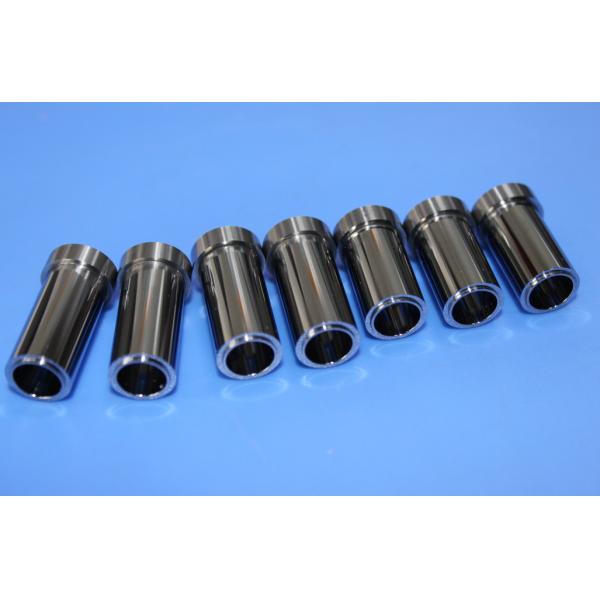

Non-magnetic Tungsten Carbide Mold Fixed and Movable Die Bushing
