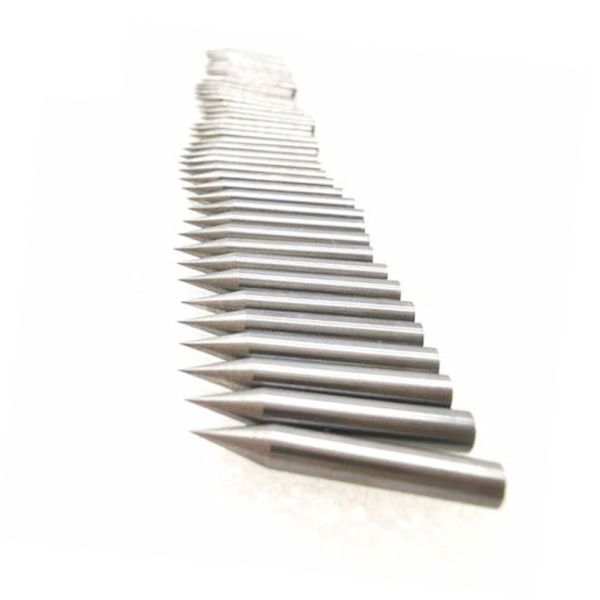

K30 Die Punching Carbide Drill Blanks HRA 90.5 35mm Length With Tips
K30 Die Punching Carbide Drill Blanks HRA 90.5 35mm Length With Tips
K30 Die Punching Carbide Drill Blanks HRA 90.5 35mm Length With Tips
K30 Die Punching Carbide Drill Blanks HRA 90.5 35mm Length With Tips
Specifications
Brand Name :
TGC
Model Number :
Carbide rods with tip
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
ISO Grade :
K30-K40
Binder :
13.5
Hardness HRA :
90.5
Density :
14.08
T.R.S :
4000
Grain size :
Sub-fine
Diameter :
8
Tip angle :
90
Length :
35
Roughness :
Ra 0.8
Description

K30 Die Punching Rods Cemented Carbide Rods With Tips Punching Pin​

Specifications:

Diameter: 8mm

Length: 35mm +0.5

Angle: 90°

Binder 13.5% grain size 0.6

Hardness HRA 90.5

Density 14.08

Tranverse.Rupture.Strength 4000

Good for making a punching pin.

Grade Recommended Application: Used for making round punches of precision stamping dies or punching pins.

Regular Cemented carbide pins

OD(+-0.001)mm Total L(0~+0.5) Tips
Angle(°)		 Tips L(mm) Hardness
HRA		 Applications
0.5 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
1 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
2 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
3 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
4 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
5 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
6 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
7 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
8 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
9 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle
10 10~330 30,45,60,90 3,4,5 88-92 Die punching needle glass flaring needle

Our carbide rods

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent to you before delivery
  • Excellent grinding quality, Straightless, and circularity could be 0.05 or 0.02.
