Medium Hard Rock Button Bits Conical 10.25mm Diameter For Drilling
Medium Hard Rock Button Bits Conical 10.25mm Diameter For Drilling
Medium Hard Rock Button Bits Conical 10.25mm Diameter For Drilling
Medium Hard Rock Button Bits Conical 10.25mm Diameter For Drilling
Specifications
Brand Name :
TGC
Model Number :
Tungsten Carbide Button bits
Certification :
ISO9001:2008 ISO14001:2004
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
TGC4
Diameter :
10.25mm
Height :
16.2mm
SR :
4
e :
27
α :
20
T.R.S :
2500
Hardness :
90.5
Description

2500 strength 10.25mm diameter Conical button bits for drilling bits for medium hard rock

Specifications Carbide:TGC3
Diameter 10.25mm Density 14.95g/cm3
Height 16.2mm T.R.S 2500 N/mm2
SR 4mm Hardness 90.5 HRA
β 27°
α 20°

Conical Button Bits

Medium Hard Rock Button Bits Conical 10.25mm Diameter For Drilling

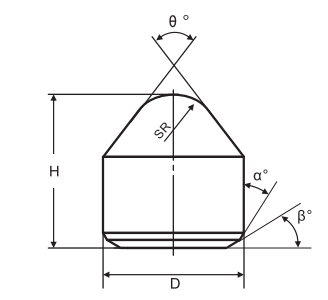

型号 尺 寸 Dimension (mm) 　
TYPE D H β° SR a. 　 o
S20825122 8.25 12.2 70 3 20 27
S20925133 9.25 13.3 70 3 20 26.5
SZ0925149A 9.25 14.9 55 3 20 26.5
S21025162 10.25 16.2 70 4 20 26.5
SZ1025162A 10.25 16.2 52 4 20 26.5
S21130159 11.3 15.9 52 4 20 26.5
SZ1130174A 11.3 17.4 60 4 20 26.5
S21130180B 11.3 18 .0 55 4 20 26.5
S21235179 12.35 17 9 55 48 20 28
SZ1235180A 12.35 18 0 55 40 20 27
S21235189B 12.35 18 9 70 48 20 28
S21435219 14.35 219 55 50 20 145
SZ1435239A 14.35 23 9 67 30 20 15 5
S21435200B 14.35 20 71.5 5 30 15.5

Advantages:

  • HIP Sintering.
  • Excellent powder quality
  • Great performance of wear-resistance
  • Full range of button bits

Our carbide button bits range:

  • Rectangular and Flat Mining Bits
  • Parabolic Buttons
  • Wedge Buttons
  • Conical Buttons
  • Spherical Buttons

Medium Hard Rock Button Bits Conical 10.25mm Diameter For Drilling
