Unground Oil Feed Two Straight Hole Carbide Rod Cemented Kic 9.5
Unground Oil Feed Two Straight Hole Carbide Rod Cemented Kic 9.5
Unground Oil Feed Two Straight Hole Carbide Rod Cemented Kic 9.5
Unground Oil Feed Two Straight Hole Carbide Rod Cemented Kic 9.5
Specifications
Brand Name :
OUQI
Model Number :
Straight Coolant Rods
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K20
Application :
End mills/Drills
Diameter :
3-25mm
Leght :
330mm
Tolerance :
Unground +0.6
Surface Roughness :
Ra 6.3
Circularity :
0.1-0.24
straightness :
0.1-0.24
Hardness :
HRA 92.8
T.R.S :
3800
Grain size :
Fine
Description

Unground Two Straight Oil Feed Holes Carbide Rods Fracture toughness 9.5 Cemented Carbide Rods

Product details:

Diameter: Dia4.3-20.3mm

Length: 330mm

Material: YL10A

Hardness: HRA 92.8

Fracture toughness:10.5

T.R.S :3800

Grain size: Fine

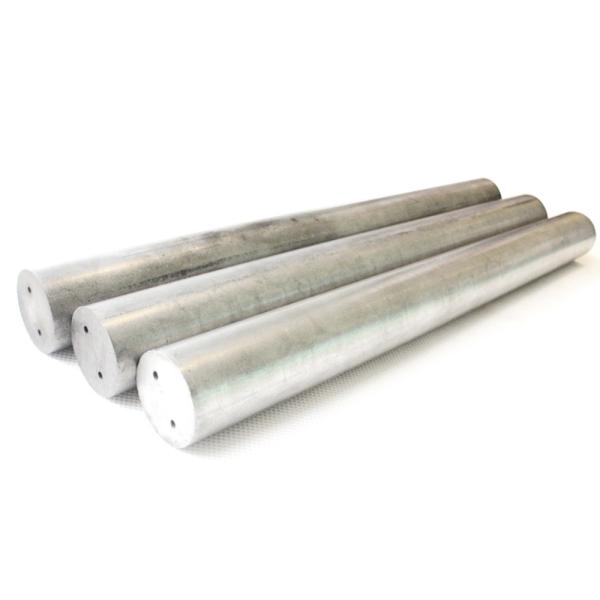

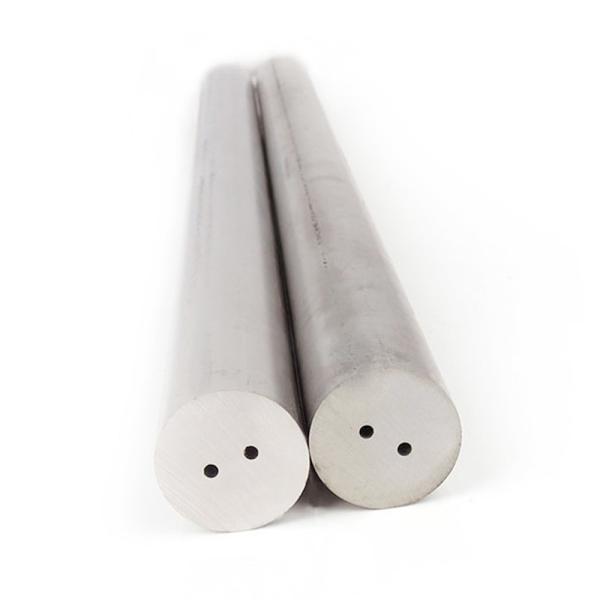

8% Cobalt with fine grain size, high fracture toughness tungsten carbide rods with two straight coolant holes rods. It is recommended for the drilling of cast iron and aluminum alloys.

Unground Oil Feed Two Straight Hole Carbide Rod Cemented Kic 9.5Unground Oil Feed Two Straight Hole Carbide Rod Cemented Kic 9.5

General specifications for the two straight coolant holes rods:

Outer Diameter mm TK mm Inner Diameter mm Deviation of holes
position≤(mm) a		 Length mm
OD Tol. TK Tol. ID Tol. Length Tol.
4.30 +0/+0.3 1.8 -0.4/0 0.800 ±0.1 0.15 330 0/+5.0
5.30 2.0 -0.4/0 0.800 ±0.1 0.20 330 0/+5.0
6.30 3.0 -0.5/0 1.000 ±0.15 0.20 330 0/+5.0
7.30 3.5 -0.5/0 1.000 ±0.15 0.20 330 0/+5.0
8.30 4.0 -0.6/0 1.000 ±0.15 0.20 330 0/+5.0
9.30 4.0 -0.6/0 1.400 ±0.15 0.20 330 0/+5.0
10.30 5.0 -0.6/0 1.400 ±0.15 0.20 330 0/+5.0
11.30 +0/+0.4 5.0 -0.6/0 1.400 ±0.15 0.28 330 0/+5.0
12.30 6.0 -0.6/0 1.750 ±0.15 0.30 330 0/+5.0
13.30 6.0 -0.6/0 1.750 ±0.15 0.34 330 0/+5.0
14.30 7.0 -0.6/0 1.750 ±0.15 0.37 330 0/+5.0
15.30 8.0 -0.6/0 2.000 ±0.2 0.37 330 0/+5.0
16.30 8.0 -0.6/0 2.000 ±0.2 0.40 330 0/+5.0
17.30 +0/+0.6 9.0 -0.6/0 2.000 ±0.2 0.47 330 0/+5.0
18.30 9.0 -0.6/0 2.000 ±0.2 0.50 330 0/+5.0
19.30 9.0 -0.6/0 2.000 ±0.2 0.50 330 0/+5.0
20.30 10.0 -0.8/0 2.500 ±0.25 0.50 330 0/+5.0

Technical parameters:

General tolerance for the raw sintered solid carbide rods
Diameter Tolerance 　 Length Tolerance 　 Straightness Tolerance
0,5- 3,5 +0,25/+0,35 ＜100.0 +0.5/+1.0 0,6-4 0,10
4,0- 6,0 +0,25/+0,40 100.0-165.0 +1.0/+2.5 4,5-8 0,12
6,5-12,0 +0,30/+0,45 165.0-335.0 +1.0/+6.0 8,5-12,0 0,15
12,5-16,0 +0,35/+0,50 　 12,5 - 20 0,20
16,5- 22,0 +0,40/+0,55 ≥20,5 0,24
22,5-45,0 +0,45/+0,60 　 　

Grades for tungsten carbide rods:

Grade ISO Code Grain size
μm		 Cobalt % Density
g/cm3		 Hardness T.R.S
HV30 HRA N/mm2 KPSI
YF06 K05‐K10 0.5 6.0 14.90 1850 93.5 3800 553.9
YL10A K10‐K20 0.8 8.0 14.65 1780 92.8 4200 609.5
YL10.2 K20‐K30 0.8 10.0 14.42 1600 91.5 4000 580
XF30 K30‐K40 0.6 12.0 14.10 1700 92.5 4000 580

Recommended Application

Grade Application
YF06 Suitable for machining composite materials, such as aluminum‐magnesium alloys, plastics, reinforced plastics, carbon, fiber, iron‐based alloys, etc. It is recommended for making big PCB drills of ф3.2‐6.3mm, micro drills of ф0.8‐3.2mm, micro-milling tools and reamers, etc.
YL10A It is suitable for machining cast iron, aluminum alloys, etc. also for machining common steels.
It is recommended for the drilling of cast iron and aluminum alloys.
YL10.2 It is suitable for machining common steel, cast iron, stainless steel, heat‐resistant steel, nickel-based alloys, titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end drills, screw taps, etc.
XF30 It is suitable for machining titanium alloy, heat‐resistant alloys, stainless steel, hardened steel, grey cast iron, glass‐fiber Reinforced plastics, composite materials, etc. It is recommended to make drills and milling tools, etc.

Unground Oil Feed Two Straight Hole Carbide Rod Cemented Kic 9.5Unground Oil Feed Two Straight Hole Carbide Rod Cemented Kic 9.5
