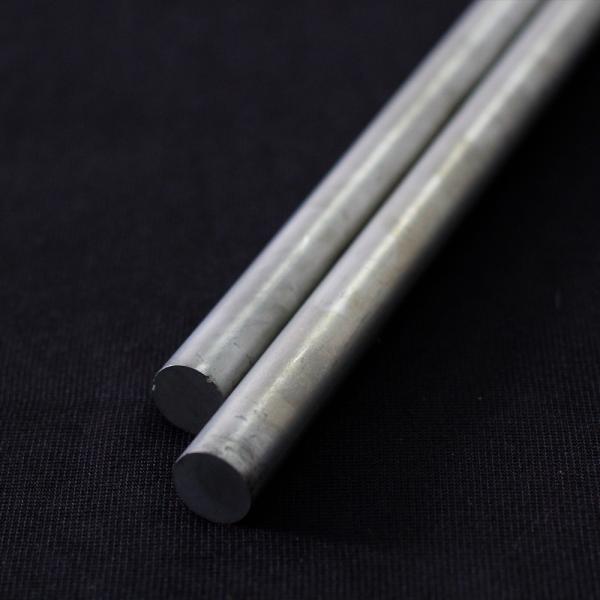

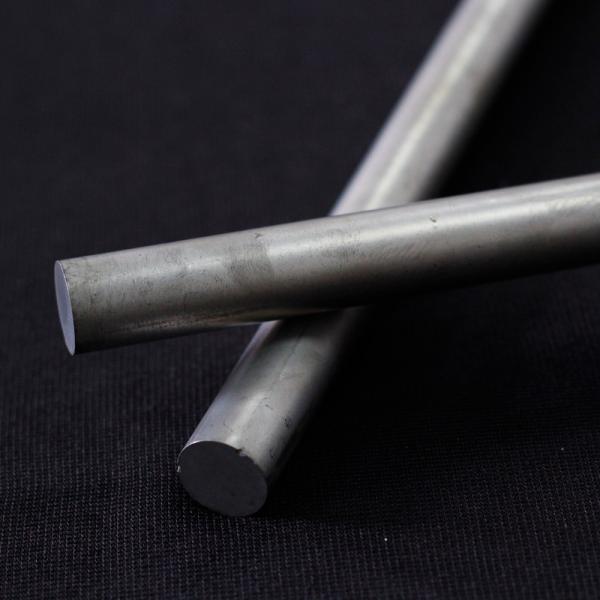

Grain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy Steel
Grain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy Steel
Grain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy Steel
Grain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy Steel
Specifications
Brand Name :
OUQI
Model Number :
Unground Carbide Rods
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
10pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000kgs per month
Delivery Time :
Standard products in one week
Packaging Details :
plastic box/box + Cartons
Material :
Tungseten carbide
ISO Grade :
K40/K50
Diameter :
D17.3mm
Leght :
330mm
Tolerance :
Length +5mm, OD +0.5mm
Surface Roughness :
Ra 6.3
Circularity :
0.2-0.5
straightness :
0.2-0.5
Cobalt :
12%
Hardness :
HRA 92.5
T.R.S :
4200
Grain size :
0.4
Description

Ultrafine grain size 0.4μm unground tungsten carbide rods for processing alloy steel

ISO Grain size Cobalt Density Hardness T.R.S k1C Applications
Code μm % g/cm3 HRA N/mm2 Mpa.m1/2
K40-K50 0.4 12 14.12 92.5 4200 10.2 Ultra-fine grain size, with good wear resistance and toughness, especially suitable for finishing and processing alloy steel, aluminum alloy, titanium alloy, etc. Suitable for making end mills and reamer.


Specification:

Unground Diameter: 17.3mm +0.5

Length 330mm +5mm or as required

ISO grade K40/K50

Grain size: 0.4μm

Applications:

Ultra-fine grain size, with good wear resistance and toughness, especially suitable for finishing and processing alloy steel, aluminum alloy, titanium alloy, etc. Suitable for making end mills and reamer

Grain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy Steel

General tolerance for the raw sintered solid carbide rods
Diameter Tolerance Length Tolerance Straightness Tolerance
0,5- 3,5 +0,25/+0,35 ＜100.0 +0.5/+1.0 0,6-4 0,10
4,0- 6,0 +0,25/+0,40 100.0-165.0 +1.0/+2.5 4,5-8 0,12
6,5-12,0 +0,30/+0,45 165.0-335.0 +1.0/+6.0 8,5-12,0 0,15
12,5-16,0 +0,35/+0,50 12,5 - 20 0,20
16,5- 22,0 +0,40/+0,55 ≥20,5 0,24
22,5-45,0 +0,45/+0,60

Description:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes
  • 100% inspected before delivery
  • Fast delivery time, regular products can be shipped in 3 days.
  • Excellent grinding quality, Straightless could be 0.05 or 0.02.

Grain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy Steel

Diameter mm Length mm Diameter mm Length mm
D Tolerance Length Tol. D Tolerance Length Tol.
1.16 -0/+0.15 330 0/+0.5 16.20 -0/+0.45 330 0/+0.5
1.65 330 0/+0.5 17.20 330 0/+0.5
1.80 330 0/+0.5 18.20 330 0/+0.5
2.20 -0/+0.20 330 0/+0.5 19.20 330 0/+0.5
2.70 330 0/+0.5 20.20 330 0/+0.5
3.25 330 0/+0.5 21.20 -0/+0.55 330 0/+0.5
3.70 330 0/+0.5 22.20 330 0/+0.5
4.20 330 0/+0.5 23.20 330 0/+0.5
4.70 330 0/+0.5 24.2 330 0/+0.5
5.20 -0/+0.25 330 0/+0.5 25.2 -0/+0.65 330 0/+0.5
5.70 330 0/+0.5 26.2 330 0/+0.5
6.20 330 0/+0.5 28.2 330 0/+0.5
6.70 330 0/+0.5 30.2 330 0/+0.5
7.20 -0/+0.35 330 0/+0.5 32.2 330 0/+0.5
7.70 330 0/+0.5
8.20 330 0/+0.5
8.70 330 0/+0.5
9.20 330 0/+0.5
9.70 330 0/+0.5
10.20 330 0/+0.5
10.70 330 0/+0.5
11.20 330 0/+0.5
11.70 330 0/+0.5
12.20 330 0/+0.5
12.70 330 0/+0.5
13.20 330 0/+0.5
13.70 330 0/+0.5
14.20 330 0/+0.5
14.70 330 0/+0.5
15.20 330 0/+0.5
15.70 330 0/+0.5

Grades for tungsten carbide rods:

Grain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy Steel

Grain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy SteelGrain Size 0.4μM Tungsten Carbide Rod Blanks Bar Unground For Alloy Steel
