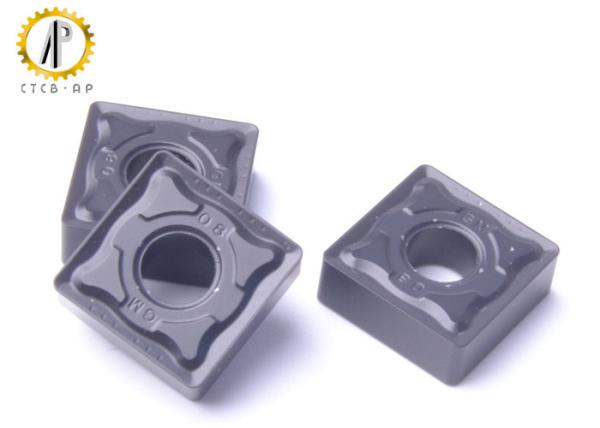

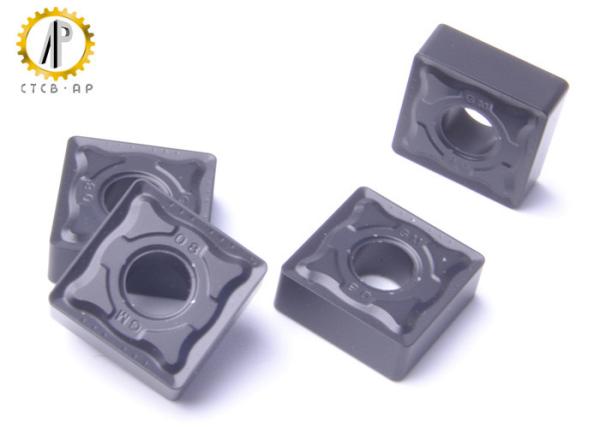

SNMG150608 Carbide Lathe Tools Metal Square Carbide Inserts Cutters In Silver Color
SNMG150608 Carbide Lathe Tools Metal Square Carbide Inserts Cutters In Silver Color
SNMG150608 Carbide Lathe Tools Metal Square Carbide Inserts Cutters In Silver Color
SNMG150608 Carbide Lathe Tools Metal Square Carbide Inserts Cutters In Silver Color
SNMG150608 Carbide Lathe Tools Metal Square Carbide Inserts Cutters In Silver Color
SNMG150608 Carbide Lathe Tools Metal Square Carbide Inserts Cutters In Silver Color
Specifications
Brand Name :
CTCP-AP
Model Number :
SNMG150608
Certification :
ISO 9001
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
300000 pieces per month
Delivery Time :
Stock items can be sent within 3-5 days
Packaging Details :
10 pieces / box
Type :
tungsten carbide cutting tools
Material :
Tungsten carbide
Surface :
CVD coated
Grade :
YC331, CVD coating for steel
Application :
machining steel, carbon steel, cast iron
Vc :
120-200M/min
ap :
0.2-0.8MM
Usage :
External turning
Description

SNMG150608 Carbide Lathe Tools Metal Square Carbide Inserts Cutters In Silver Color

CVD coating with the best combination of substrate with high wear resistance and coating composed of MT-Ti(CN), thick AL2O3 layer and TiN makes it suitable for semifinishing of steel materials. The cutting speed can be increased by more than 25%,while the tool life can be 30% longer under the same cutting.

Features:

The carbide from us with very equality grain size, makes our carbide inserts with stable quality, and not easy broken.

The cemented carbide insert is made by cemented carbide ( tungsten carbide ), which is a kind of alloy material made by powder metallurgy process of cemented carbide compounds and bonding metals of refractory metals.

Cemented carbide has a series of excellent properties, such as high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance, etc. Especially its high hardness and wear resistance, even at 500 C temperature is basically unchanged, there is still a high hardness at 1000 C.

If you need samples for testing we will be very glad to offer you.

Advantage:

1. High Corrosion resistance, high hardness and high hot hardness
2. Excellent wear resistance
3. Higher machining speed
4. Excellent production efficiency

Grade:

ISO code
P (steel) YC330 YC331 YC332
M (stainless steel) YP730 YP731 YP732

K (cast iron)

 YC530 YC531 YC532
N (non ferrous metal) YN101




Models of carbide inserts:

SNMG090304-GF SNMG120404-GF SNMG120408-GF
SNMG090304-GM SNMG090308-GM SNMG120404-GM
SNMG120408-GM SNMG120412-GM SNMG150608-GM
SNMG150612-GM SNMG190608-GM SNMG190612-GM
SNMG190616-GM SNMG120408-GR SNMG120412-GR
SNMG150612-GR SNMG150616-GR SNMG190616-GR
SNMG190624-GR SNMG250724-GR SNMG250924-GR
SNMG090304-FF SNMG090308-FF SNMG120404-FF
SNMG120408-FF SNMG090304-FM SNMG120404-FM
SNMG120408-FM SNMG120412-FM SNMA120404
SNMA120408 SNMA120412 SNMA120416
SNMA150608 SNMA150612 SNMA190616
SNMG090304 SNMG090308 SNMG120404
SNMG120408 SNMG120412 SNMG150608
SNMG150612 SNMG190612 SNMG190616
SNMG250724 SNMG250924 SNGG120404-LC
SNGG120408-LC SNGG120412-LC
